Check the display of 2
the external system an
this step. You have 18
0 s until the
next keypress. If
a timeout occurs the system
returns to step 1.
The p
ressure signal ICP1 is now
switched through to the analogue
output Out1. You can now make
further settings or leave the screen
by pressing OK.
Step 6:
To return to the overview. This
also activates any alarm settings
which may have been changed.
Set the external system alarm limits to maximum 350 mmHg, if monitoring is required.
4.4.3.4 Pressure graphics

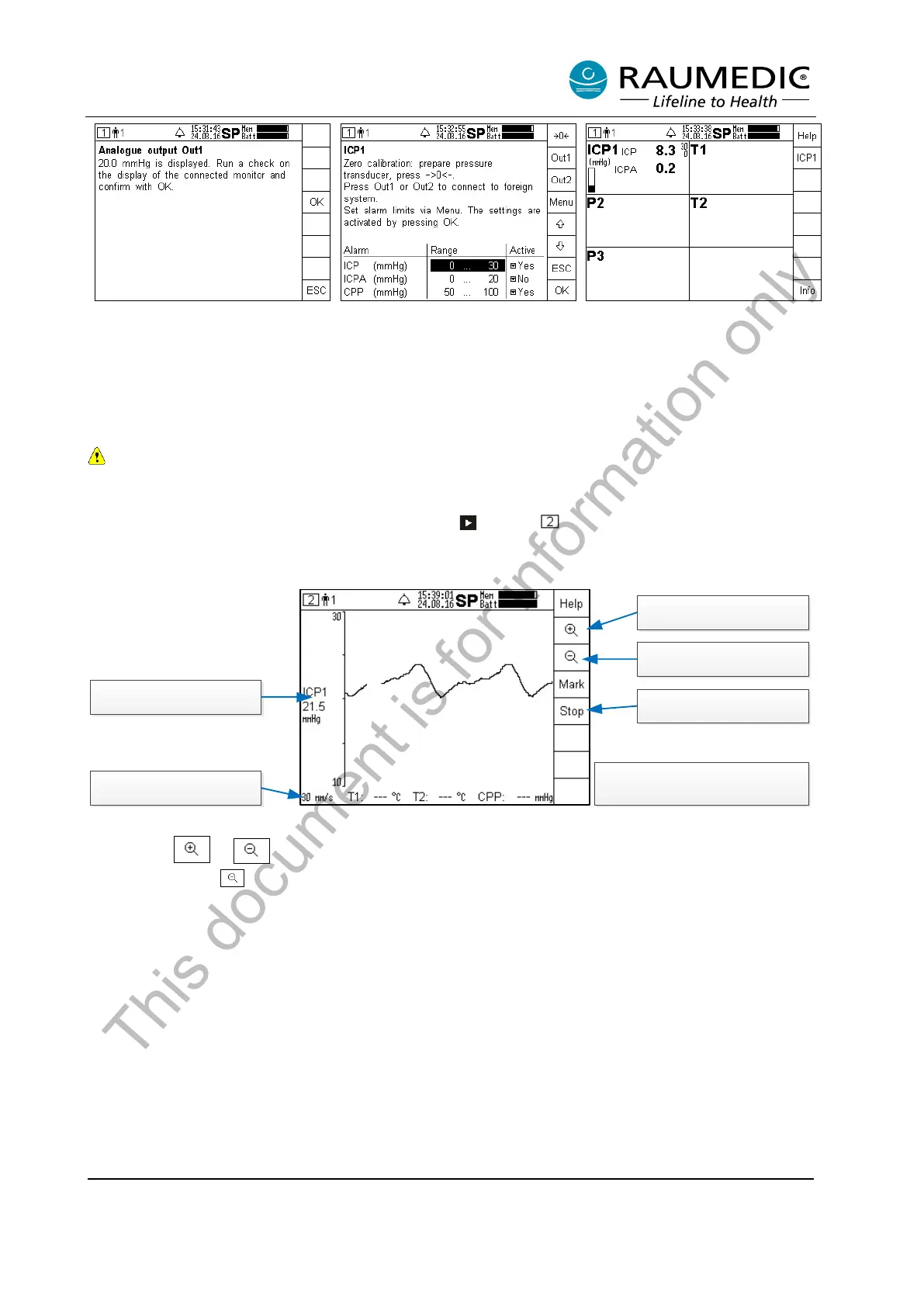

In order to skip to the graphics screen, press the key . Screen will be accessed. The scaling of the
pressure axis will automatically adapt to the signal amplitude. A manual change of the scaling is neither
possible nor is it necessary.
Freeze screen
Increase recording speed
Four recording speeds are available:
1, 5, 10 and 30 mm/s
Reduce recording speed
Numeric display
Mean value ICP1
Recording speed
Use the key or to switch over the plotting speed. 30 mm/s correspond to approx. 3 s per display
width. Use the key to reduce the plotting speed, increasing the time basis of the curve.
