6
Service and Maintenance: 63
SERVICE AND MAINTENANCE

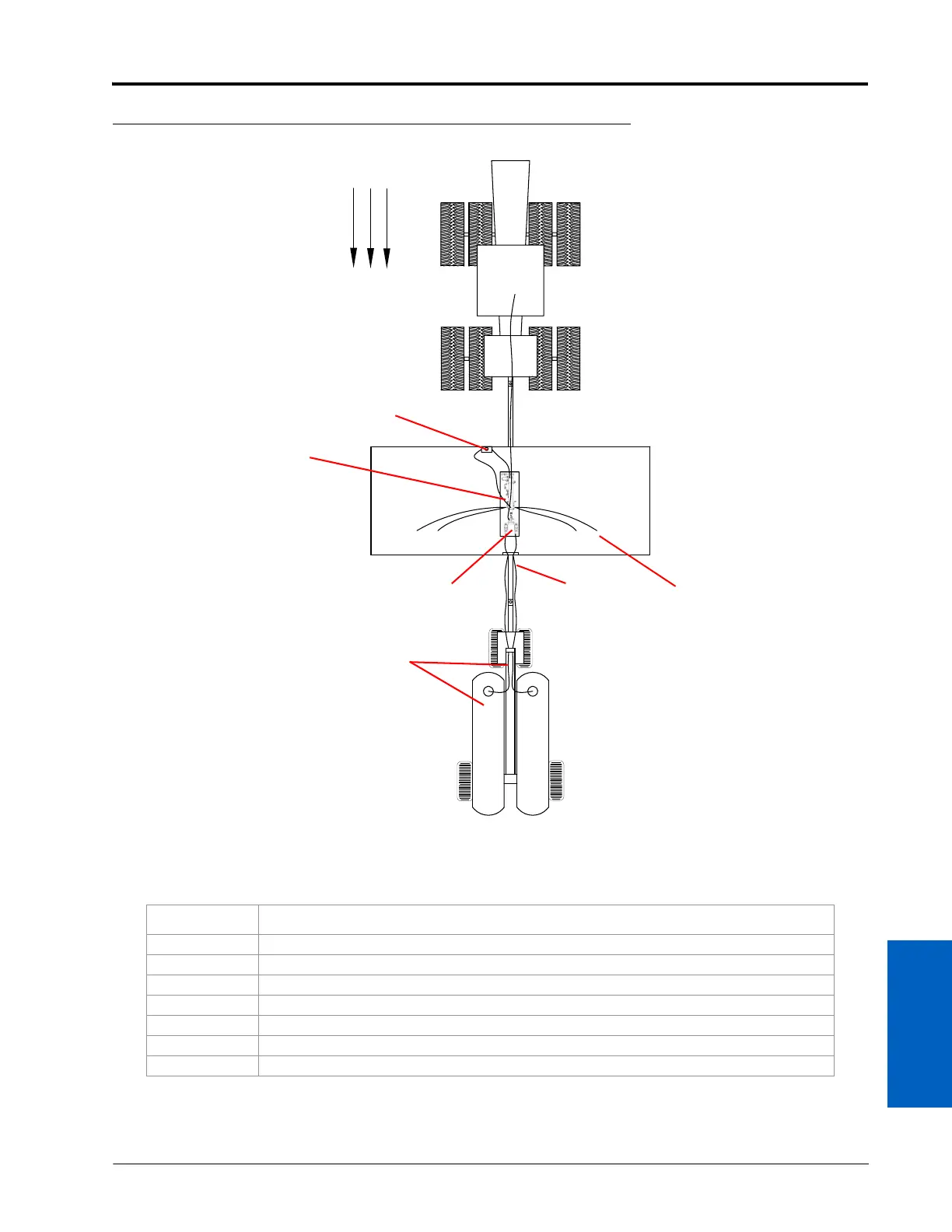

FIGURE 1. System Bleed and Emergency Shut-off (Top View)
TABLE 1.
System Bleed and Emergency Shut-off Components
Component # Description
1 Nurse Tank Main Shut-off and Bleed Valves (At Bulkhead or Withdrawal Valve)
2 Supply Hose Bleed Valves and Breakaway Couplers
3 Accuflow System Emergency Shut-off Valve and Rope to Tractor Cab
4 Accuflow System Primary Bleed Valve
5 Accuflow System Secondary Bleed Valve
6 Accuflow System Pressure and Temperature Gauges
7 Vapor Rows
Wind Direction for System
Bleed or Emergency Shut-off
1
2
3
4
5,6
7
To Next Page
