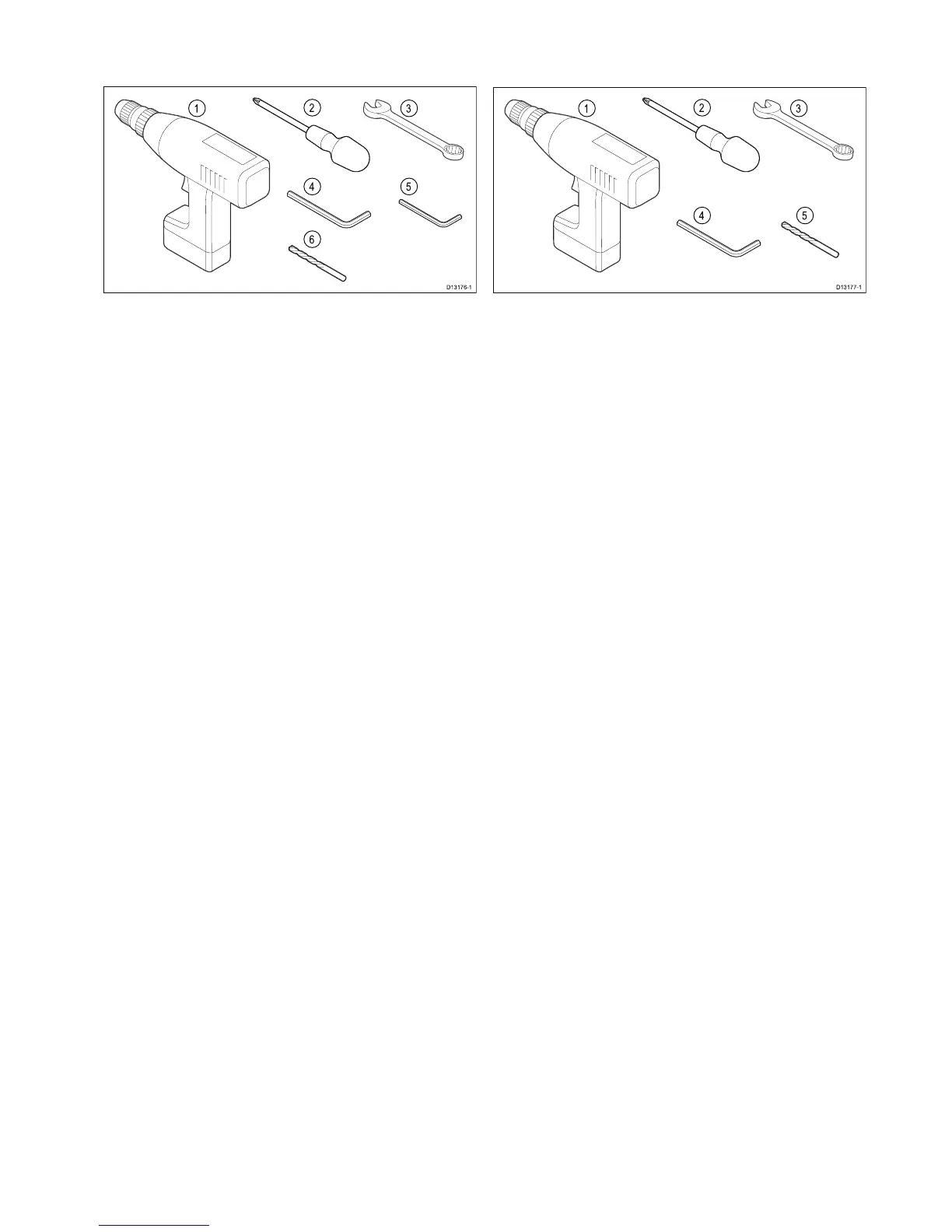

3.6Toolsrequiredforinstallation—
Dragony
®
DV/DVS/Pro/Wi-Fish
™
1 3
5
2
4
6
D13176-1
1.Cordlessdrill
2.Pozi-drivescrewdriver
3.8mmwrench(spanner)
4.5mmHexwrench(allenkey)
5.4mmHexwrench(allenkey)
6.Drillbit
Youwillalsorequire:
•marinegradesealant
•awaterprooffuseholderand5Ainlinefuse.
•apaperclip(incaseyouneedtoremovethe
transducerfromthebracket.)
3.7Toolsrequiredforinstallation—
Dragony-5M
1 3
2
4 5
D13177-1
1.Cordlessdrill
2.Pozi-drivescrewdriver
3.8mmwrench(spanner)
4.5mmHexwrench(allenkey)
5.Drillbit
Youwillalsorequire:
•awaterprooffuseholderand5Ainlinefuse.
Planningtheinstallation
23
