9.17Sonarlogging
WhenusingcompatibleNavionics
®
cartography
youcansharesonarinformationusingNavionics
®
SonarCharts
.
TheSonarLoggingfunctionallowsloggingofdepth
andpositiondatatoacompatibleNavionics
®
chart
card.Thesaveddatacanthenbeuploadedtothe
Navionics
®
websitetohelpimprovethecontour
detailofSonarChartsonyourMFD.Refertothe
Navionics
®
websiteforinstructionsonhowto
uploadyoursonarlogs.
EnablinganddisablingSonarlogs
Sonarloggingcanbeenabledordisabledatany
time.
FromtheChartapplicationmenu:
1.SelectChartSetting.
2.SelectSonarLogs:sothatOnisselectedto
enablesonarlogging,or
3.SelectSonarLogs:sothatOffisselectedto
disablesonarlogging.
9.18COGVector

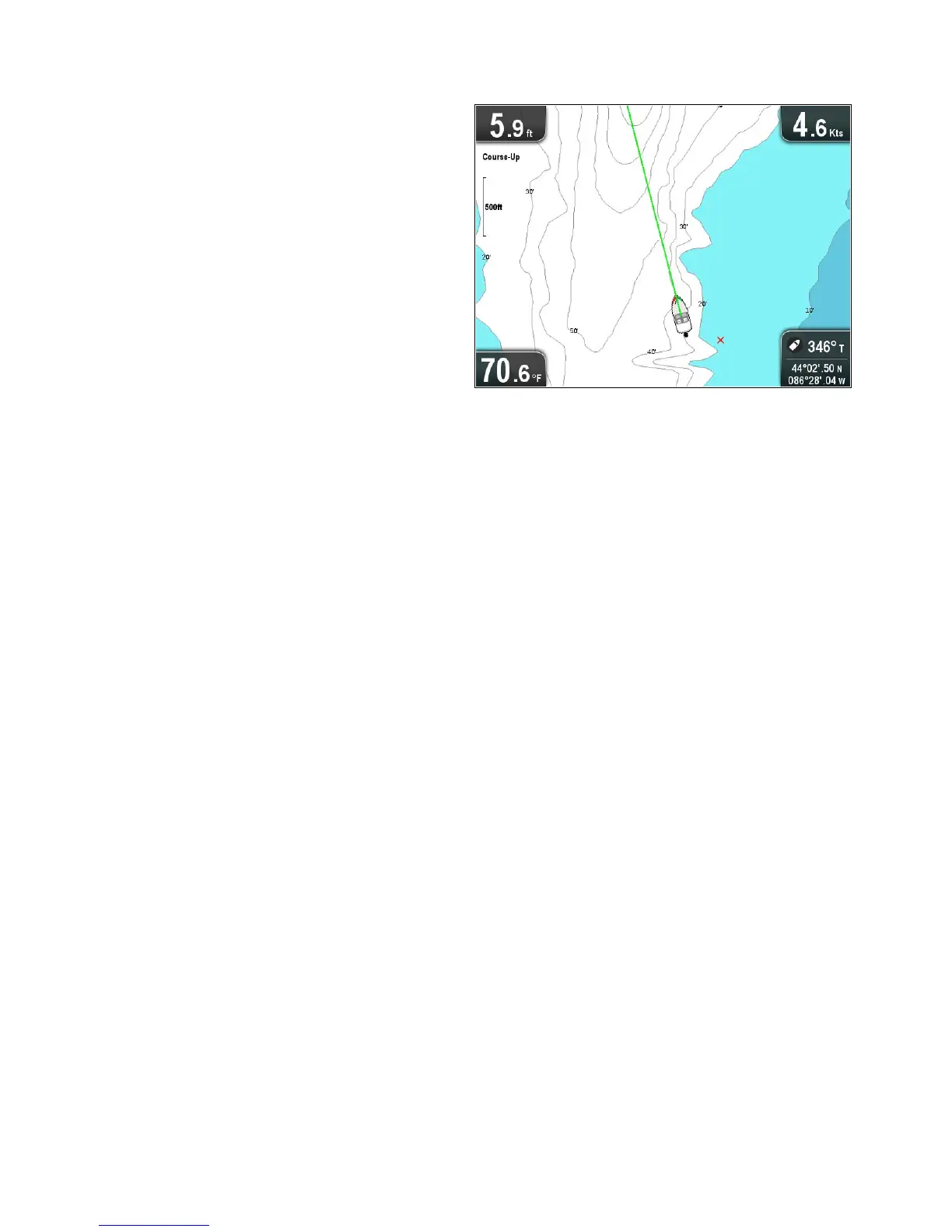

Thechartapplicationcanbesettodisplayagreen
linetorepresentCourseOverGround(COG).
Thegreenlineindicatesthevessel’sactualcourse.
EnablinganddisablingtheCOGvector
YoucanenableanddisabletheCOGvector.
FromtheChartapplicationmenu:
1.SelectChartSettings.
2.SelectCOGVectortoswitchbetweenOnand
Off.
90
Dragony–4/Dragony–5/Dragony–7/Wi–Fish

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Raymarine Dragonfly-5 DVS and is the answer not in the manual?

Raymarine Dragonfly-5 DVS Specifications

General IconGeneral
Display Size5 inches
GPSYes
ChartplotterYes
Waterproof RatingIPX6 and IPX7
TransducerIncluded
Depth RangeUp to 600 feet (183 meters)
MountingFlush mount or bracket mount
Display Resolution800 x 480 pixels
Dimensions145 mm x 145 mm x 56 mm
Weight0.7 kg
