Raymarine Dragonfly-5 DVS User Manual

•Allowenoughroomfordisplayangleadjustment.
•Allowenoughheadroomtoremovethedisplay
fromthebracket.

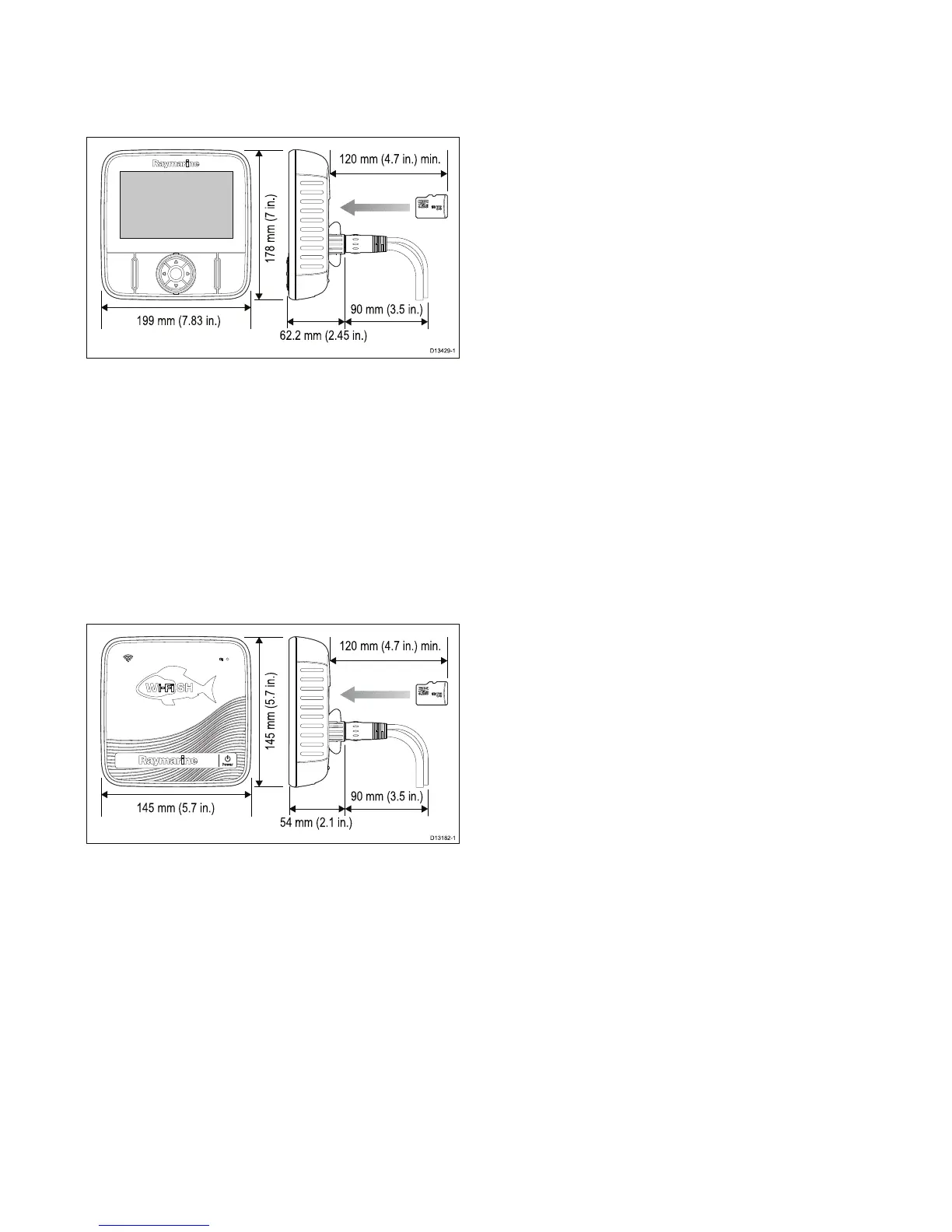

Productdimensions–Dragony–7
199 mm (7.83 in.)
178 mm (7 in.)
62.2 mm (2.45 in.)
90 mm (3.5 in.)
120 mm (4.7 in.) min.
D13429-1
Carepoints:
•Forvariantswithbuilt-inGPS,installinalocation
wheretheGPSperformancewillnotbeaffected
byvesselstructure;testGPSperformancebefore
installation.
•Allowaminimumof120mm(4.7in.)behindthe
displayforinsertingandremovingaMicroSDcard.
•Allowenoughroomfordisplayangleadjustment.
•Allowenoughheadroomtoremovethedisplay
fromthebracket.
Productdimensions—Wi-Fish
™
145 mm (5.7 in.)
145 mm (5.7 in.)
54 mm (2.1 in.)
90 mm (3.5 in.)
120 mm (4.7 in.) min.
D13182-1
Carepoints:
•Allowofminimumof120mm(4.7in.)behindthe
unitforinsertingandremovinganMicroSDcard.
•Allowenoughroomforunitangleadjustment.
•Allowenoughheadroomtoremovetheunitfrom
thebracket.
3.13Installationprocess
Thestepslistedbelowarerequiredtosuccessfully
installyourproductandensureoptimum
performance.
1.Mountingthetransducer.
2.Mountingthedisplay.
3.Testingthetransducer.
4.Finishingthetransducermounting.
28
Dragony–4/Dragony–5/Dragony–7/Wi–Fish

Raymarine Dragonfly-5 DVS Specifications

General

Display Size	5 inches
GPS	Yes
Chartplotter	Yes
Waterproof Rating	IPX6 and IPX7
Transducer	Included
Depth Range	Up to 600 feet (183 meters)
Mounting	Flush mount or bracket mount
Display Resolution	800 x 480 pixels
Dimensions	145 mm x 145 mm x 56 mm
Weight	0.7 kg
