4.3Mountingtheunit
Theunitismountedusingthebracketprovided.
Beforemountingensurethatyouhave:
•selectedasuitablelocation.
•installedthetransducerandroutedthe
power/transducercabletotheselectedlocation.

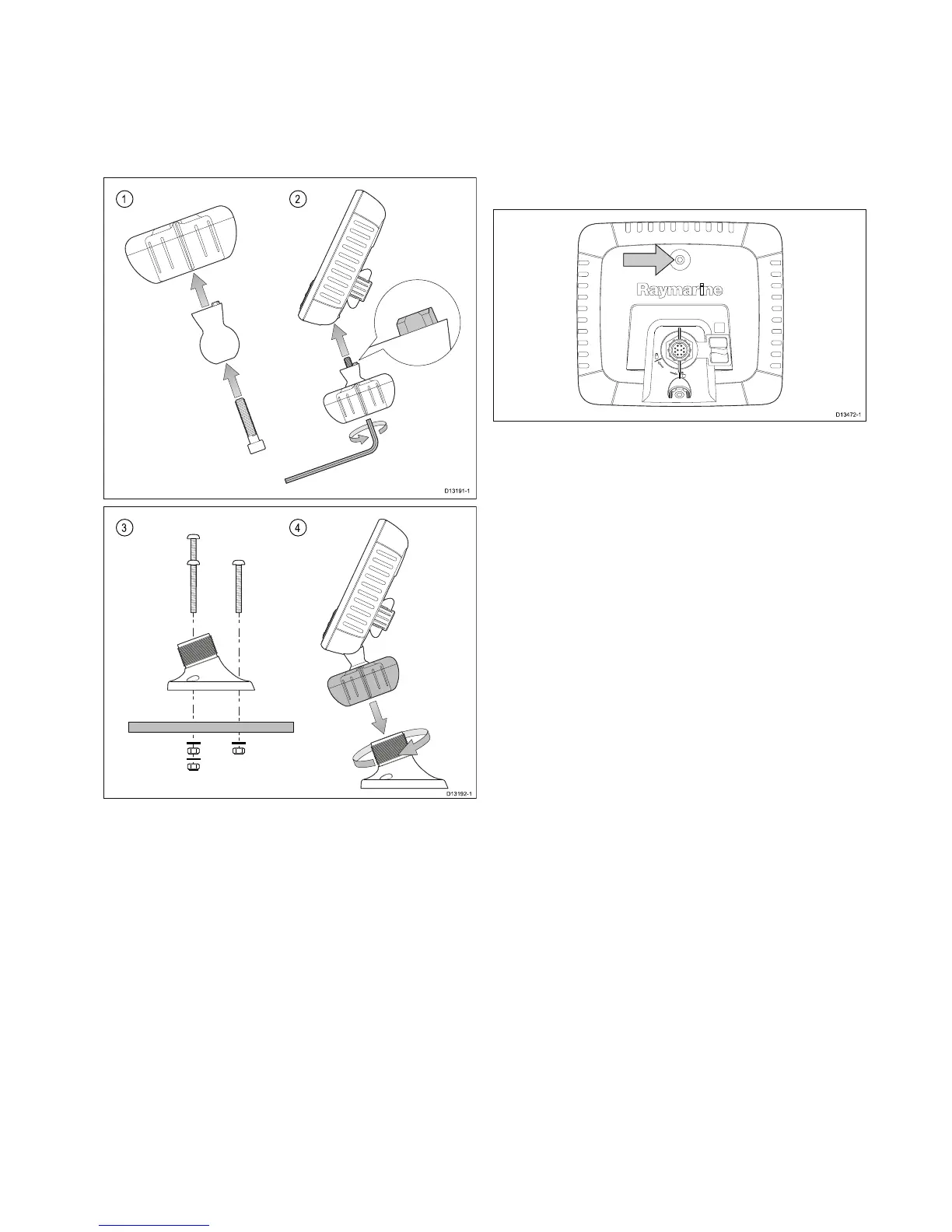

1 2
D13191-1
3 4
D13192-1
1.SlidetheHex(allen)boltthroughthepivotball,
thenslidethepivotballthroughthecenterofthe
bracketlockingcollar.
2.Usinga5mmHex(allen)key(notsupplied),
screwtheHex(allen)boltintotheundersideof
theunit,ensuringthelocatingtabsarecorrectly
aligned.
3.Usingthexingsprovidedmountthebracket
basetothemountingsurfaceasfollows:
i.Markthelocationofthebracketbase’s
mountingholesonthechosenmounting
surface.
ii.Drillholesforthexingsusingasuitabledrill,
ensuringthereisnothingbehindthesurface
thatmaybedamaged.
iii.Useapozi-drivescrewdriverandan8mm
wrench(spanner)toattachthebracketbase
securelytothemountingsurfaceusingthe
xingsprovided.
4.Positiontheunitatthedesiredangleandsecure
bytighteningthelockingcollar.
Theunitcanberemovedfromthebracket,by
unscrewingthelockingcollar.
Dragony-7PromountingusingRAM
®
mounts
TheDragony-7Procanalsobebracketmounted
usingRAM
®
mountscompatiblewiththeRAM1”
Tough-Ball
™
withM6–1x6mmMalethreadedpost
(PartNumber:RAP-B-379U-M616).
D13472-1
ThethreadedpostcanbeattachedtotheM6captive
nut,locatedtopcenterontherearofthedisplay.
Mounting
31

Raymarine Dragonfly-5 DVS Specifications

General

Display Size	5 inches
GPS	Yes
Chartplotter	Yes
Waterproof Rating	IPX6 and IPX7
Transducer	Included
Depth Range	Up to 600 feet (183 meters)
Mounting	Flush mount or bracket mount
Display Resolution	800 x 480 pixels
Dimensions	145 mm x 145 mm x 56 mm
Weight	0.7 kg
