Raymarine hsb2 PLUS - 4.3 Fishfinder Data Window

Chapter 4: Fishfinder Operations 4-7
Fishfinder Data
Window
4.3 Fishfinder Data Window
The Fishfinder can display various measurements in large format data boxes.
Use the DISPLAY key options to select a data window that is vertically split
with the full-screen fishfinder display. Three data windows are available, each
window provides several large-format data boxes for specific information as
follows:

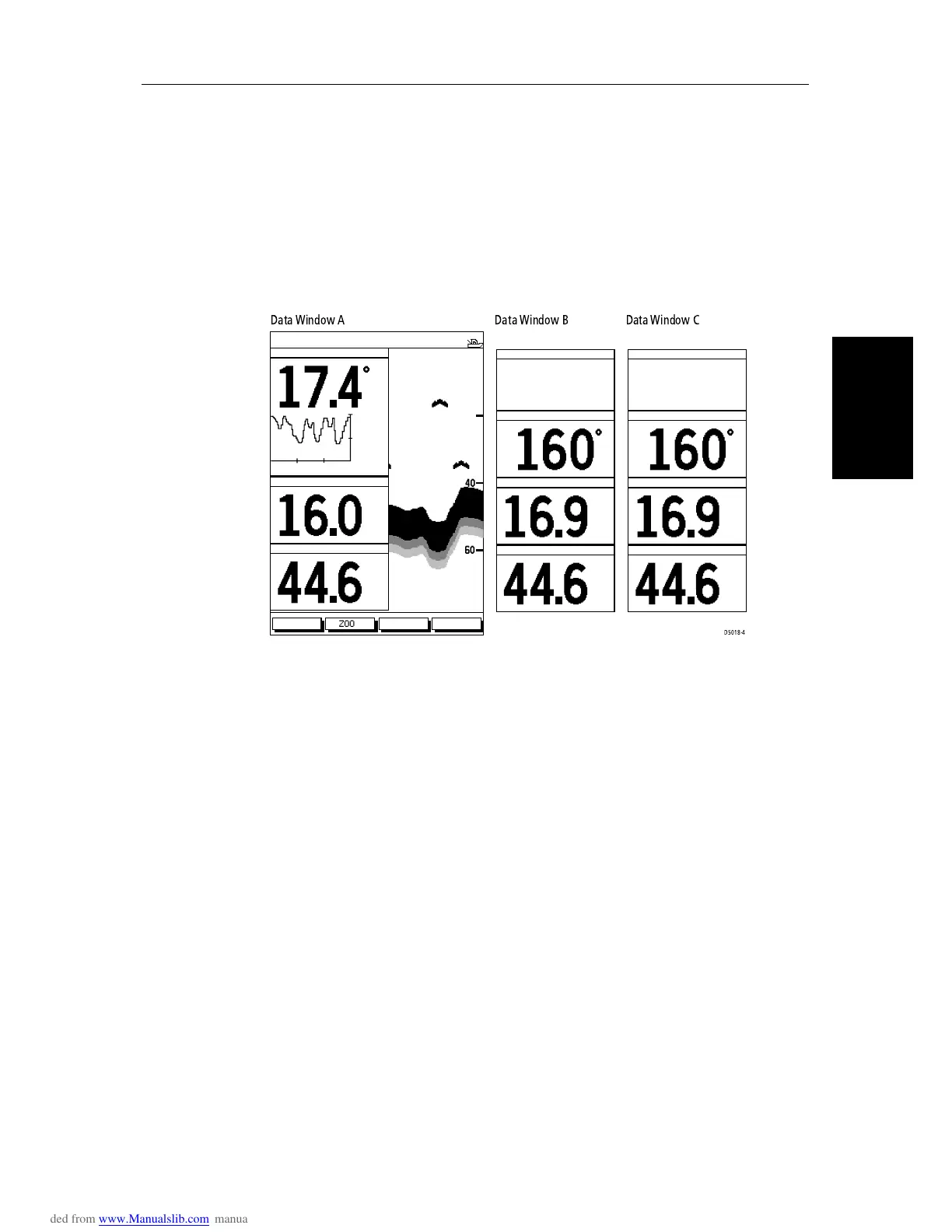

Figure 4-3: Fishfinder Data Windows
• Data Window A – provides surface temperature with a 30 minute tempera-
ture graph, speed through water and depth.
• Data Window B – provides position, course over ground (COG), speed
over ground (SOG) and depth.
• Data Window C – provides waypoint range and bearing, course over
ground (COG), speed over ground (SOG), and depth.
The data boxes display information in the units selected in system set up (see
Section 7.3).
M
BRG 099
o
R
RNG 2.410nm
CURSOR

40
60
ZOOMFREQUENCY
BTM.LOCK A-SCOPE
AUTO G RZ
50kHz
0
80
DEPTH
ft
SPEED
kts
20.1
15.1
10.1
F
30 0MINUTES
DEPTH
ft
SPEED OVER GROUND
kts
COURSE OVER GROUND
POSITION WAYPOINT
81°06^34W
28°17^07N
Rng 2.95nm
Brg 093°T
DEPTH
ft
SPEED OVER GROUND
kts
COURSE OVER GROUND
TT
20
        
