2.5 Mounting the Display Unit
The hsb
2
Plus Series LCD display unit is waterproof to CFR46 and can be
installed either above or below deck. The display unit can be mounted using
the mounting bracket supplied, or console mounted using the optional flush-
mounting kit (see Section 2.2).
Mounting Bracket
The display unit can be mounted on a dash, chart table, bulkhead, or deckhead.

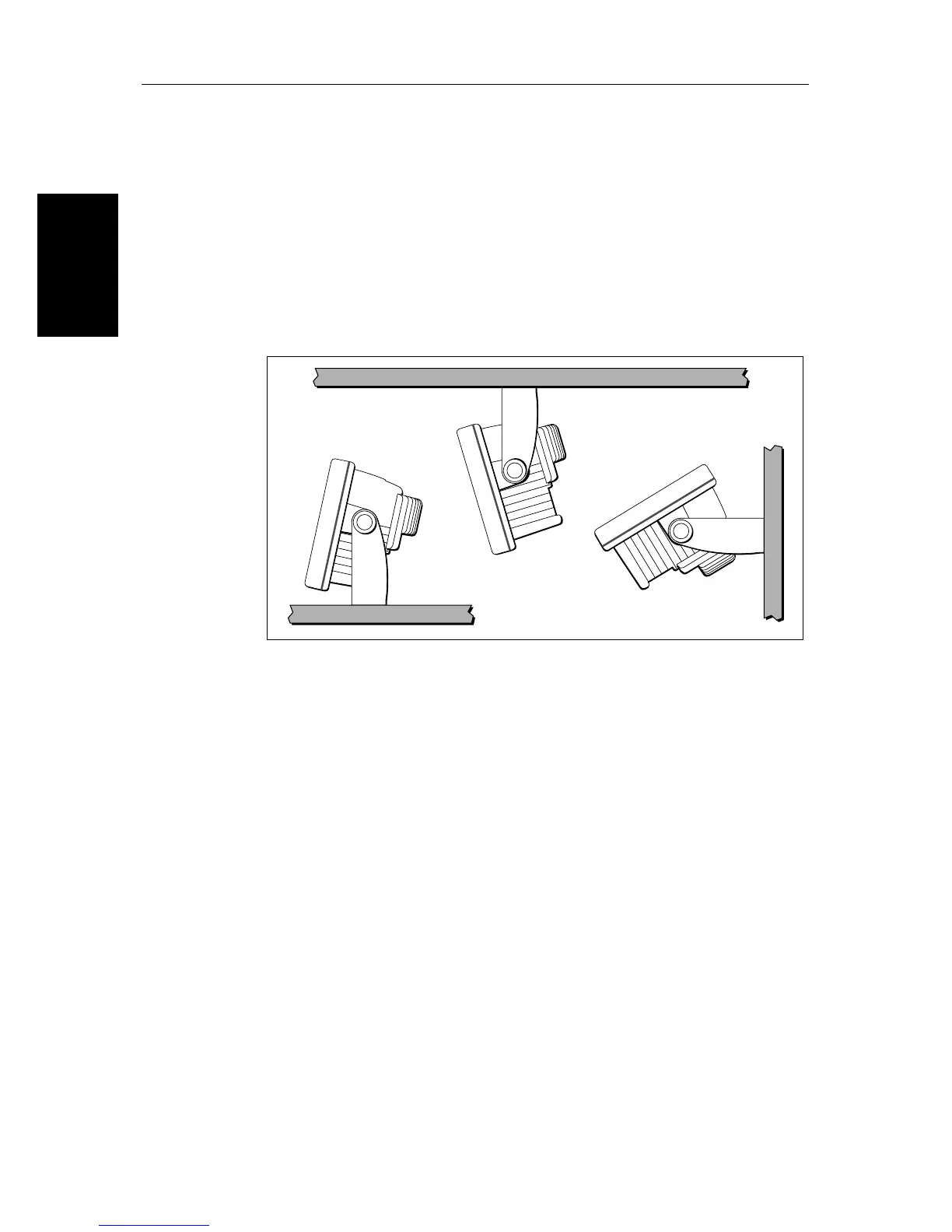

Figure 2-7: LCD Display Mounting
1. Loosen the knobs and remove the mounting bracket from the display unit.
2. Mark the locations of the mounting bracket screw holes on the mounting
surface.
3. Use the screws supplied to attach the mounting bracket at the marked loca-
tions.
4. Attach the display unit to the mounting bracket, adjust the display angle,
and tighten the knobs.
