Plus Series Fishfinders
General
General
The
hsb
2
Plus Series Fishfinder system, illustrated below, is comprised of the
7" or 10.4" LCD display unit, fishfinder transducer, and associated cables.

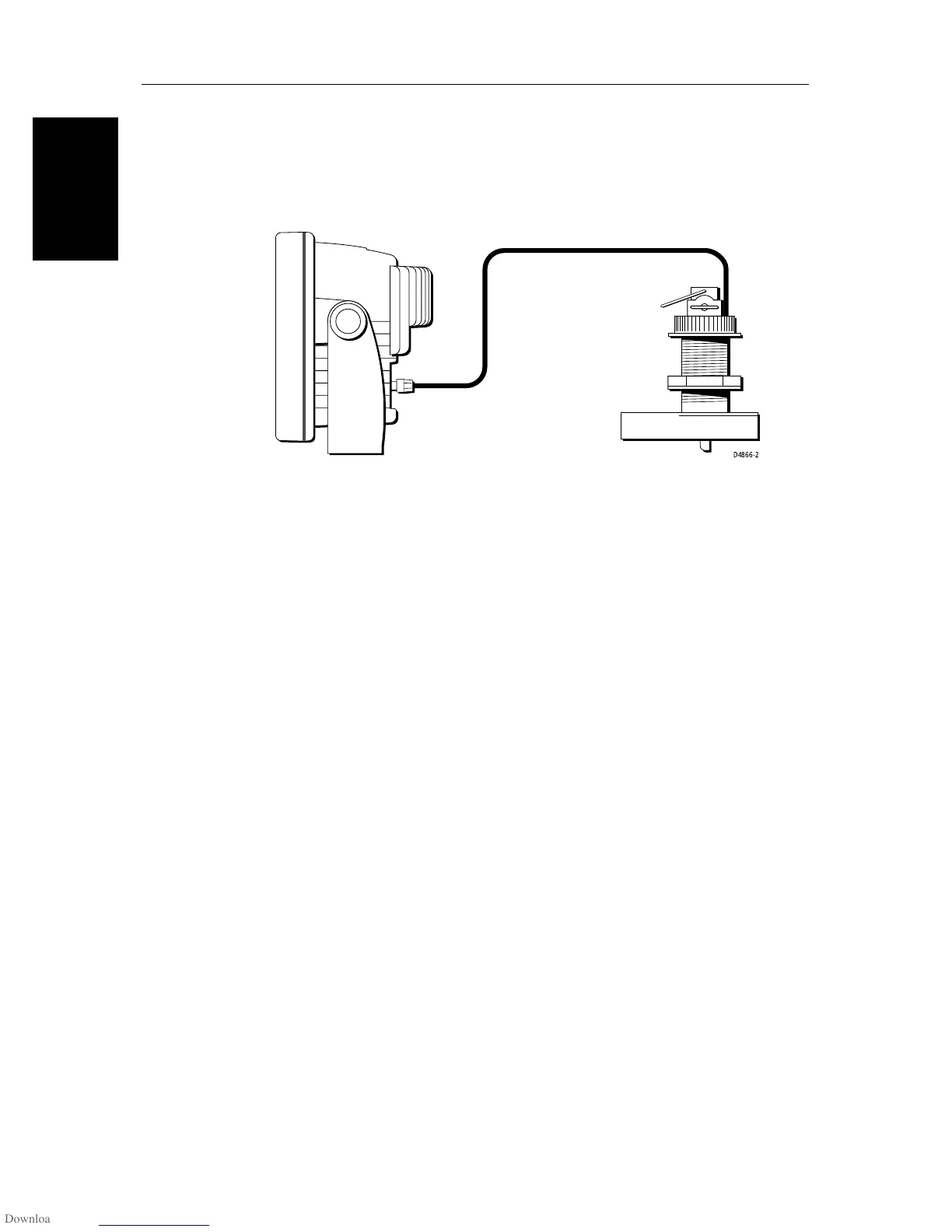

Figure 1-1: Basic Fishfinder System
Display Unit
The
hsb
2
Plus Series LCD display unit is waterproof to CFR46 and can be
installed either above or below deck.
The unit includes:
• 7" or 10.4" LCD display
• Trackpad
• Eleven dedicated (labeled) control keys
• Four soft keys (unlabeled) whose functionality changes
• Two slots for the C-MAP NT
®
or NT+ chart cards (Raychart models only)
The display and keys can be illuminated for night-time use.
Transducer
The
hsb
2
Plus Series Fishfinders require a transducer, either thru-hull, in-hull,
or transom-mount.
Transducers can measure water depth, temperature, distance traveled, and/or
speed. It is important to position your transducer correctly. For details on
transducers, including location and installation instructions, see document
number 81196, Transducers for Fishfinders Owner’s Handbook.
Note: If speed and temperature are being input via SeaTalk, these values are
displayed instead of the speed and temperature inputs from the transducer.
