Chapter 3: Getting Started & Adjusting the Display 3-5
Simulator Mode
➤ To switch the display unit off, press and hold the POWER key for three
seconds. A countdown timer is displayed as shown below:

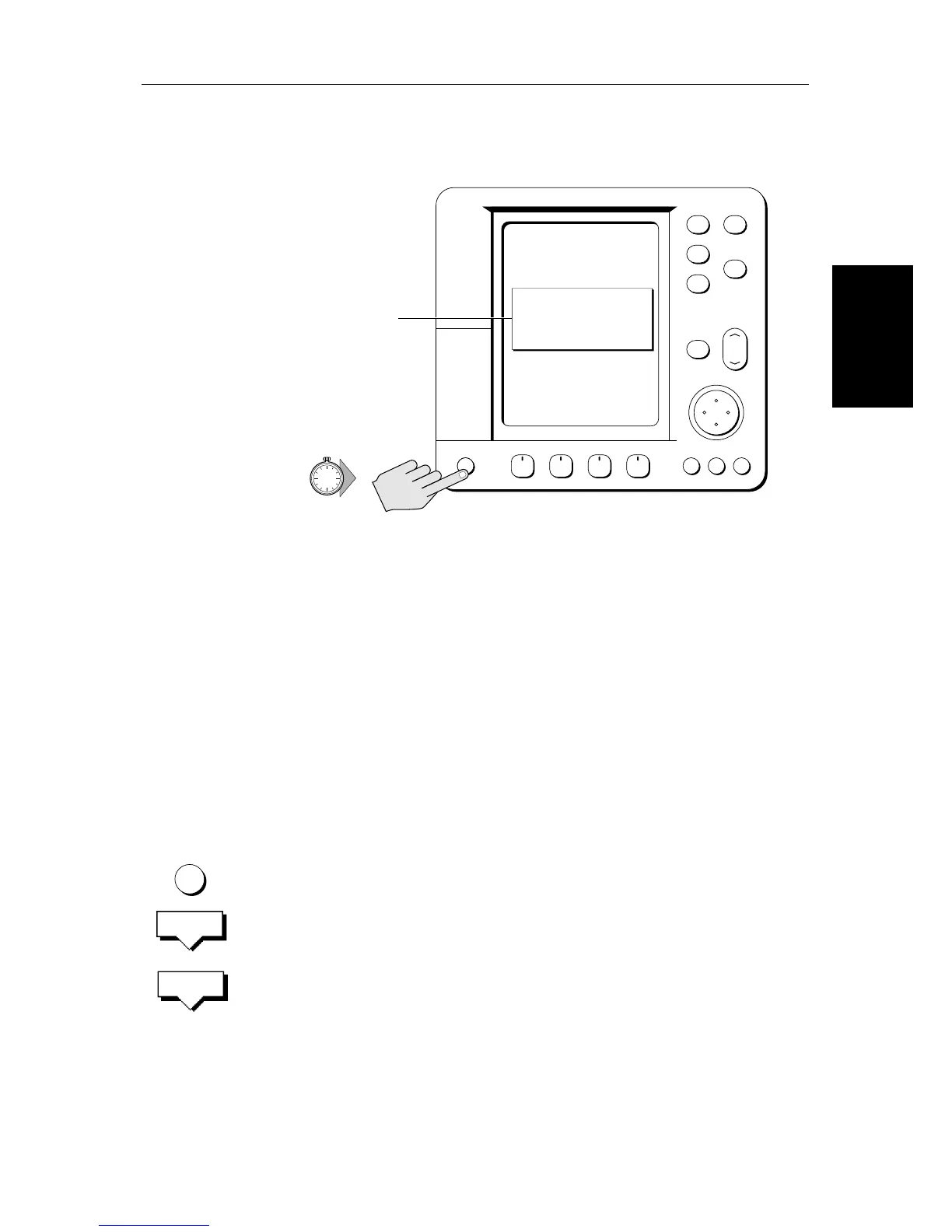

Figure 3-4: Switch Off
When the counter reaches zero a beep sounds, and the display unit switches
off. Release the POWER key.
Note: Switch the display unit off before you remove either the power or trans-
ducer cords.
Simulator Mode
When simulator mode is on a simulator database box is displayed.
When the display is switched off then on again, simulator mode is maintained.
It is recommended that you select the System Set Up Menu and switch off
simulator mode when you have finished.
➤ To view simulated image:
1. Press MENU followed by either:
the SYSTEM SET UP soft key for simulated data or
the SONAR SET UP soft key for a simulated fishfinder image.
The set up menu pop-up is displayed.
2. Use the trackpad to move the selection bar over the option SIMULATOR/
SONAR SIMULATOR. The simulator soft keys are displayed.
3. In the system set up menu, press DATA to view the chart display with simu-
lated position.
In the sonar set up menu, press the ON soft key to switch on the sonar simu-
lator.
4. Press ENTER twice to return to the default display.
Note: Any waypoints placed on the chartplotter in simulator mode are re-
tained in the database list and are available for use in routes.
