Appendix B: Using the Auxiliary Junction Box B-5
Appendix B: Using
the Auxiliary
Junction Box
Raystar 114 Combined GPS and Differential Beacon
Receiver

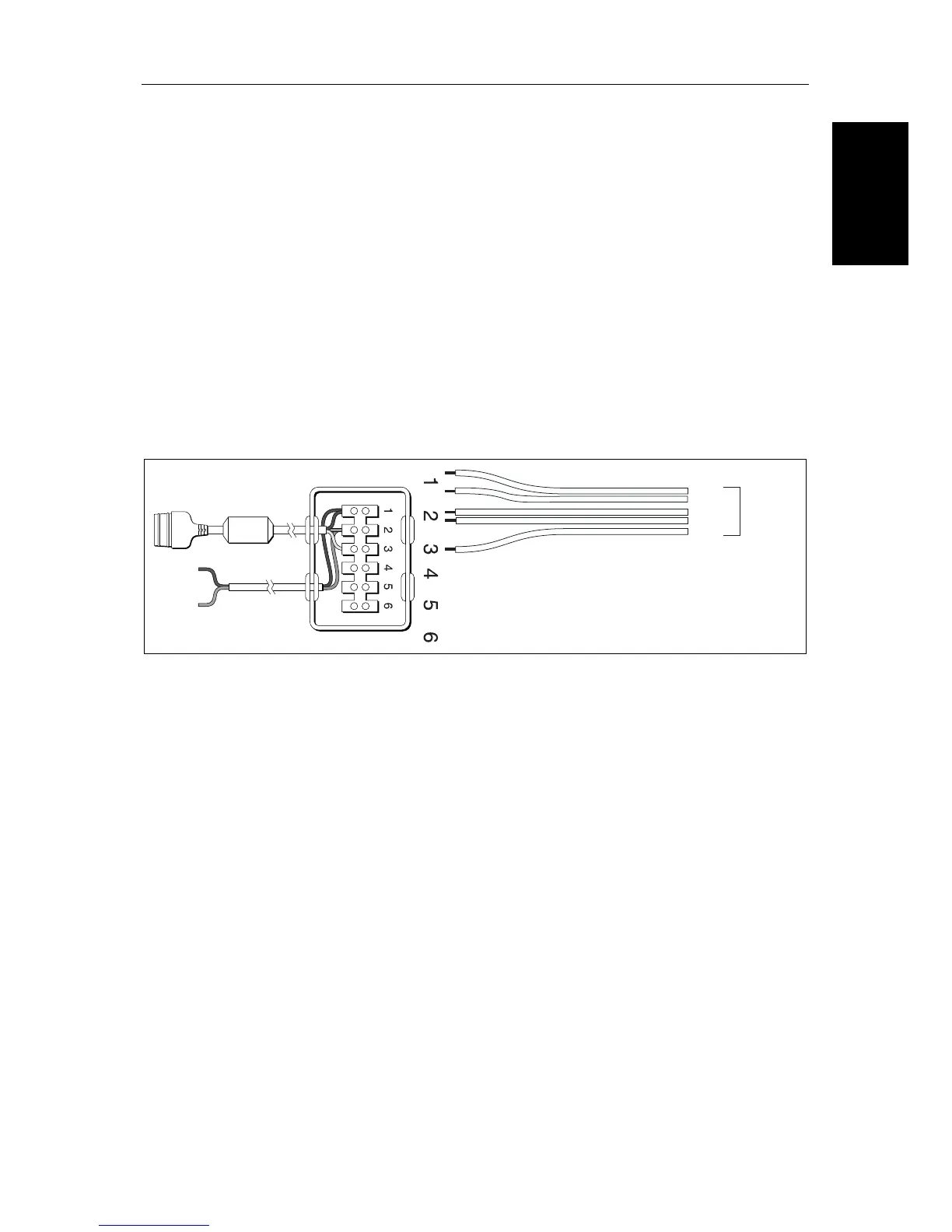

To connect your Raystar 114 Combined GPS and Differential Beacon
Receiver to your Fishfinder, cut off the 5-pin connector, strip back the
insulation on all the wires and connect to the Auxiliary Junction Box as shown
in the illustration below.
CAUTION:
Ensure the correct polarity of the 12 V supply before applying display or
SeaTalk power. It is recommended that a multimeter is used to check the
connections.
Note: You can use the GPS Set-Up page to manually tune the Raystar 114.
Refer to Chapter 6 for details.
12V
Power
Supply
(fused)
From
Combined
GPS/DBR
sensor
Green
Red
Black
To Display Unit
SeaTalk Socket
D4301_1
Red
Black
White
Yellow
