Removing a Chart
Card
5. Close the card cover until it clicks shut, to prevent water entering the dis-
play unit.

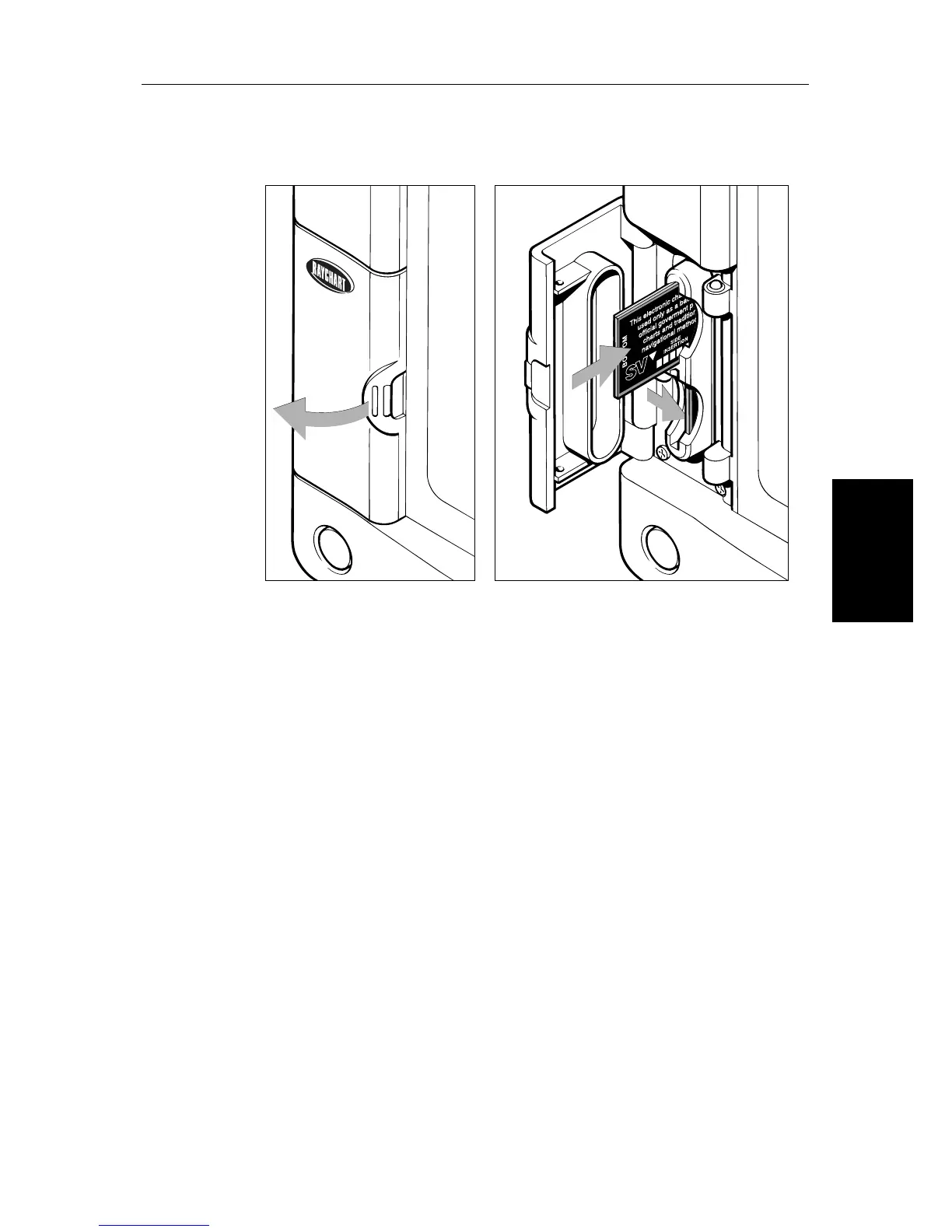

Figure 5-1: Inserting the Chart Card
Removing a Chart Card
➤ To remove a chart card:
1. Open the card cover, at the lower left of the display front panel.
2. Press on the card you wish to remove, and move the top of the card to the
left to clear the retaining pegs.
The card will spring half-way out, enabling you to grip the card and
remove it from the slot.
3. Remember to close the card cover so that it clicks shut, to prevent water
from entering the card reader assembly.
Displaying the Chart Data
The new chart information will be displayed when you move the cursor into an
area covered by the new chart or, if it is already in the area, change the range
scale.
If an
hsb
2
Plus Series repeater display is connected, the chart can also be
accessed by the repeater display. To see the chart you may need to zoom or
pan, to redraw the chart area to the screen.
D4158-2
