2-2
hsb
2
Plus Series Fishfinders
Introduction

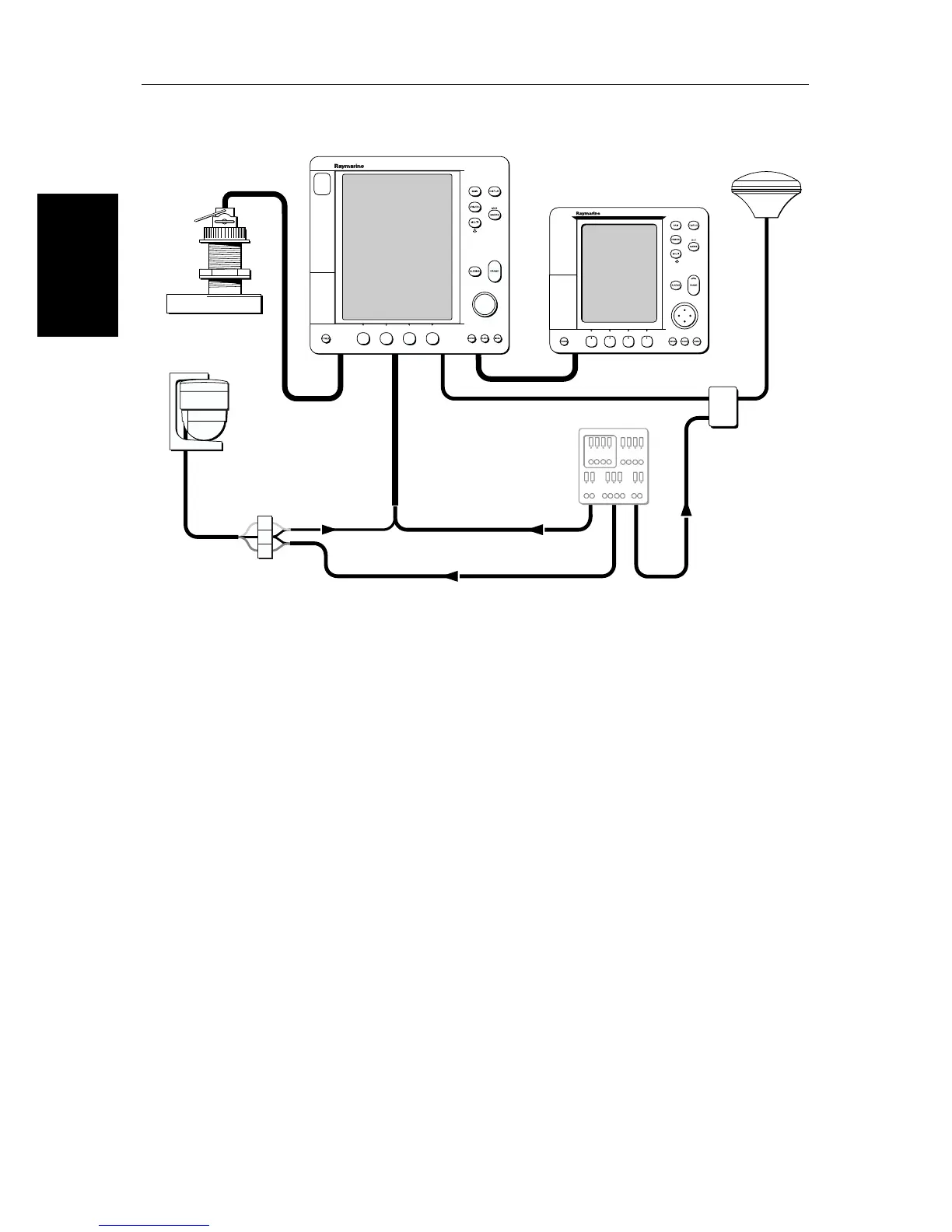

Figure 2-2: Fishfinder in an Integrated System
Note: If you wish to practice using the display before installation, use the sim-
ulator mode, as described in Chapter 3. For power, connect a 12V or 24V DC
power supply, attaching the red wire via a quick blow fuse (6A for 12V or 4A
for 24V) to positive and the black wire to negative.
If you are connecting your display to other equipment (including another
hsb
2
Plus Series display unit) install then test the fishfinder display and transducer
as described in this chapter. Once the display is operating correctly, you can
connect it to other equipment as described in Section 2.7Integrated Systems
on page 2-18, taking particular care to ensure the correct polarity of the
SeaTalk supply. Section 2.7 describes the
hsb
2
, SeaTalk and NMEA
interfaces.
For the Fishfinder to display depth, water temperature and speed, you must
install the Depth/Speed/Temp transducer supplied with your system.
For full functionality of the radar and chartplotter you need to provide position
and heading data.
• Heading data enables the chart to operate in North Up and Course Up
modes. If speed data is also available the MOB function operates.
• Position data is required for full functionality of the chart display.
NMEA
SeaTalk
HSB
hsb
2
Series Master Display
hsb
2
Series Repeater Display
Distribution Panel
12/24V Supply
12V Supply
12V Supply
Junction
Box
GPS
Compass
Transducer
D5442-3
