2 RC400 GPS Chartplotter

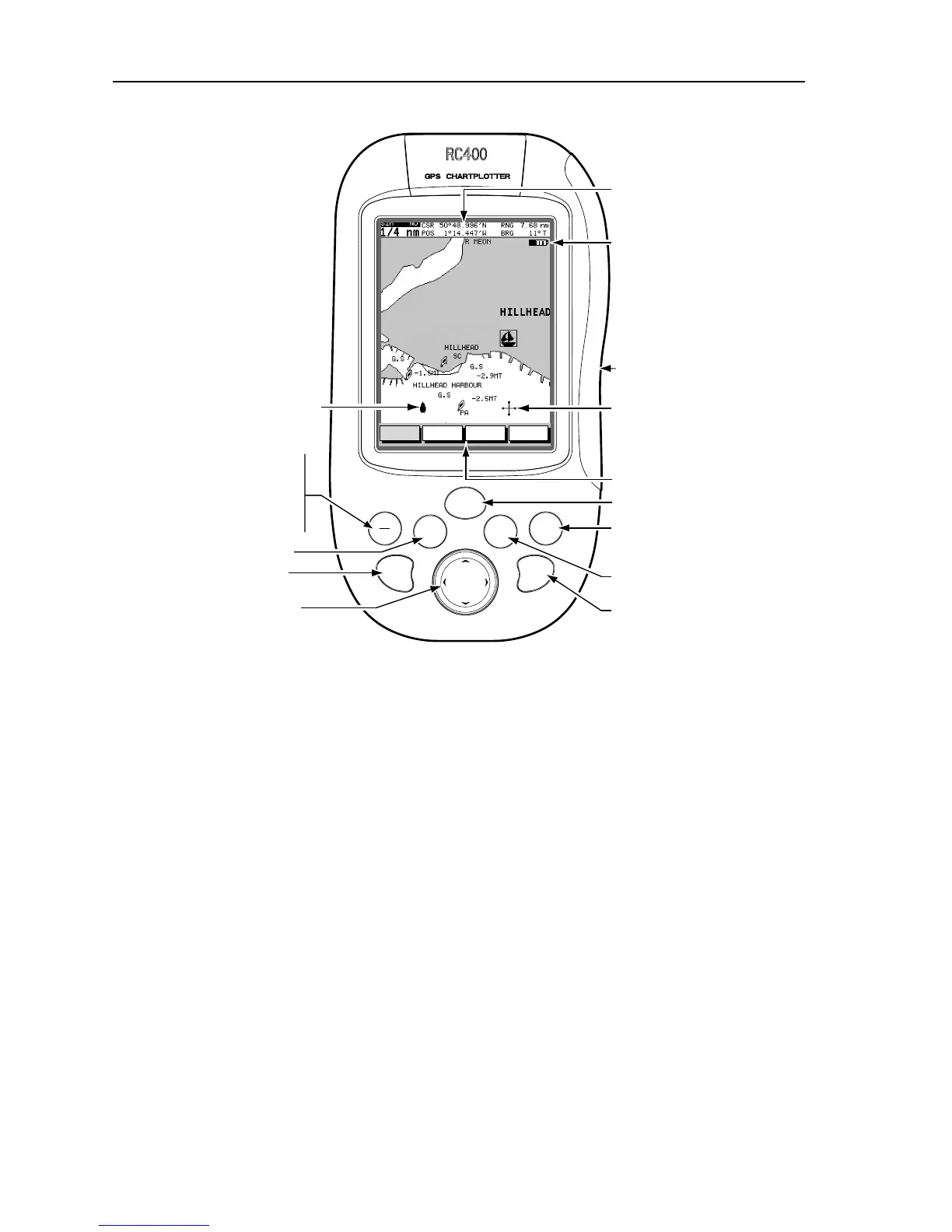

Figure 1-1: RC400 GPS Chartplotter Operating Controls
Trackpad and Cursor
On the primary chart display, the trackpad is used to move the cursor
horizontally, vertically or diagonally. The cursor is the cross-hair symbol
(+) which is used to select a position or item on the chart.
The longer the trackpad is pressed, the faster the cursor moves. The
current cursor position (in latitude and longitude) is shown in the status
bar at the top of the screen.
The cursor is context-sensitive. Some items on the screen, such as
waypoints and chart objects have information associated with them.
When the cursor is placed over such objects, this information is displayed
in the status bar. Some items may also have options or settings. If
available, these are displayed in a function bar at the bottom of the screen.
Note: During many operations the cursor cannot be moved around the
screen (while a function bar is displayed, for example) and the cursor is
used exclusively for selection.
POWER
CLEAR
PAGE
ENTER
RANGE
IN
GOTO
MOB
RANGE
OUT
FIND SHIP ROUTES
WAYPOINTS
MORE¬
Chart card compartment
(under battery tray, rear)
Status bar
Primary Function Bar
Cursor
Battery strength
Vessel Symbol
D6530-2
PAGE toggles between Set Up, CDI,
BDI, Waypoints, Navigation and
Time/Date display modes.
POWER toggles the unit on and off.
CLEAR exits a function or backs up
one menu level.
RANGE OUT zooms out to display
a larger chart area.
RANGE IN zooms in to display a
smaller chart area.
TRACKPAD navigates through soft
key selections maneuvers the cursor.
ENTER accepts soft key selections.
GOTO is for following a route or for
going to a waypoint, port, nearest
facility or current cursor position.
MOB is for returning to a location if
a person or object is lost overboard.
