10 Raypak, Inc.
HTC# 059105-00D


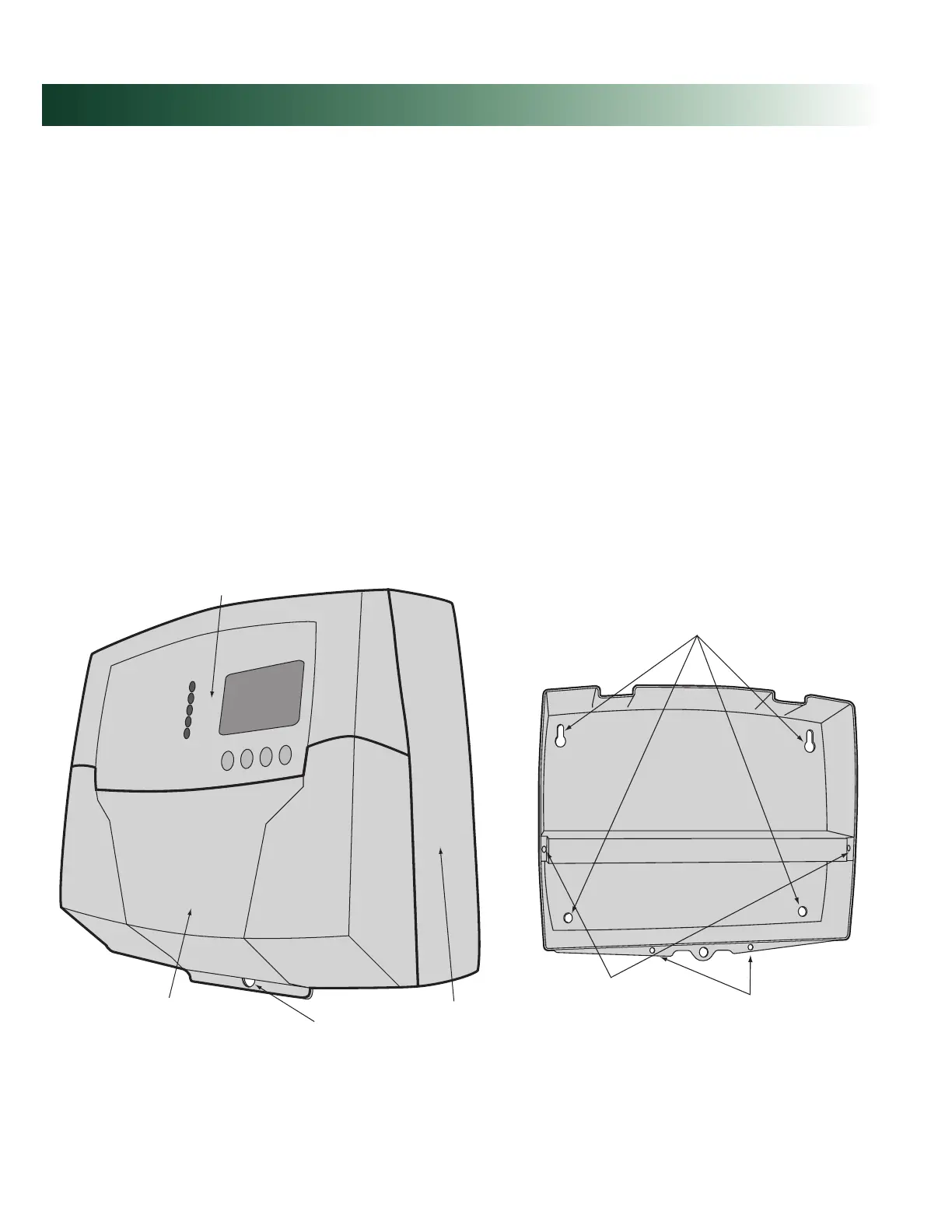

Each of the TempTracker mod+ Hybrid or Extension consists of three primary enclosure components.
• TheEnclosureDisplayModule: contains the control electronic board, display, buttons, LEDs and electric wiring terminals. It has
two screws to hold it to the base. A program conguration switch, used to adjust the control settings, is placed above the terminals.
This switch is enclosed with the enclosure wiring cover for security. Wiring terminals are of the plug-in type to ease installation and
removal.
• TheEnclosureBase: contains the holes to mount and hold the control against the wall or any at surface. All other enclosure
components mount on the base. The bottom section of the Enclosure Base contains the wiring chamber with knockouts on the
bottom to ease installation.
• TheEnclosureWiringCover: seals the wires from the external environment. It has two screws to hold it the base and a hole to
secure a lock on the wiring enclosure. A plastic web that separates the wiring chamber into high and low volt sections has been
provided.

Select a location near the equipment to be controlled.
The surface should be at and sufciently wide and strong to hold the TempTracker mod+ Hybrid or the Extension.
Keep the control away from extreme heat, cold, or humidity. Ambient operating temperature is from 20 to 120°F.
Remove the Enclosure Wiring Cover from the control enclosure by removing the two bottom screws.
Remove the Enclosure Display Module by removing the enclosure middle screws.
Screw the Enclosure Base to the surface through the upper and lower mounting holes on the back of the enclosure.
Replace the Enclosure Display Module and replace the enclosure middle screws.
Do not replace the enclosure wiring cover until all wiring is done.
When purchasing a padlock for the enclosure, the maximum shank diameter should not exceed ¼"
Enclosure Display Module
Enclosure Wiring Cover Enclosure Base
Hole for optional lock
(not supplied)
Mounting Holes
Display Mounting Screws
Wiring Cover
Mounting Screws

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Raypak TempTracker mod+ Hybrid and is the answer not in the manual?

Raypak TempTracker mod+ Hybrid Specifications

TempTracker mod+ Hybrid

Operating Environment IconOperating Environment
operating temperature20°F/-6°C to 130°F/54°C
operating humidity20% to 80% non-condensing
control sensor rangesminus 35°F/-37°C to 250°F/121°C
Power IconPower
voltage input120 VAC 60 Hz
power consumption12 VA Max
output relay ratings1 Amp inductive (⅛ HP), 6 Amp resistive at 120 VAC 60 Hz, 15 A total for all circuits
Weight and Dimensions IconWeight and Dimensions
dimensions11"W x 9" H x 3 ¾" D
weight2.5 pounds

TempTracker mod+ Hybrid

Power IconPower
output relay ratings1 Amp inductive (⅛ HP), 6 Amp resistive at 120 VAC 60 Hz, 15 A total for all circuits
power backupLithium coin battery, 100 days minimum
add-on extension panelsup two Extension Panels using RS485 (RJ45 or RJ11)
Temperature Control IconTemperature Control
ignition point1 to 50%
modulation start point0 to 100%
outdoor cutoff range20°F/-6°C to 100°F
Operating Environment IconOperating Environment
minimum water temperature50°F/10°C to 170°F/77°C
maximum water temperature90°F/32°C to 240°F/116°C
offset adjustmentminus -40°F°/-22°C° to plus 40°F°/22°C°

Extension

Output Specifications IconOutput Specifications
boiler outputs(6) N.O. S.P.S.T.
modulating output types(6) 4-20mA and 0-10V
output relay ratings1 Amp inductive (⅛ HP), 6Amp resistive at 120 VAC 60 Hz, 15 A total for all circuits
