Connecting the Power Cables
Installing the Hardware 4-9
Install the Cable Management Brackets
The SmartEdge 100 router is shipped with a pair of cable management brackets for the front of the chassis.
When installed, each bracket accommodates both fiber-optic and nonfiber cables.
To install a bracket, align it with two unused screw holes in the attached flange, as shown in Figure 4-5;
using a Phillips screwdriver, secure it with two 6-32 x 0.25-inch flat-head screws provided with each
bracket. Then tighten each screw using 9.6 inch-lbs torque (1.1 Newton-meters) maximum.

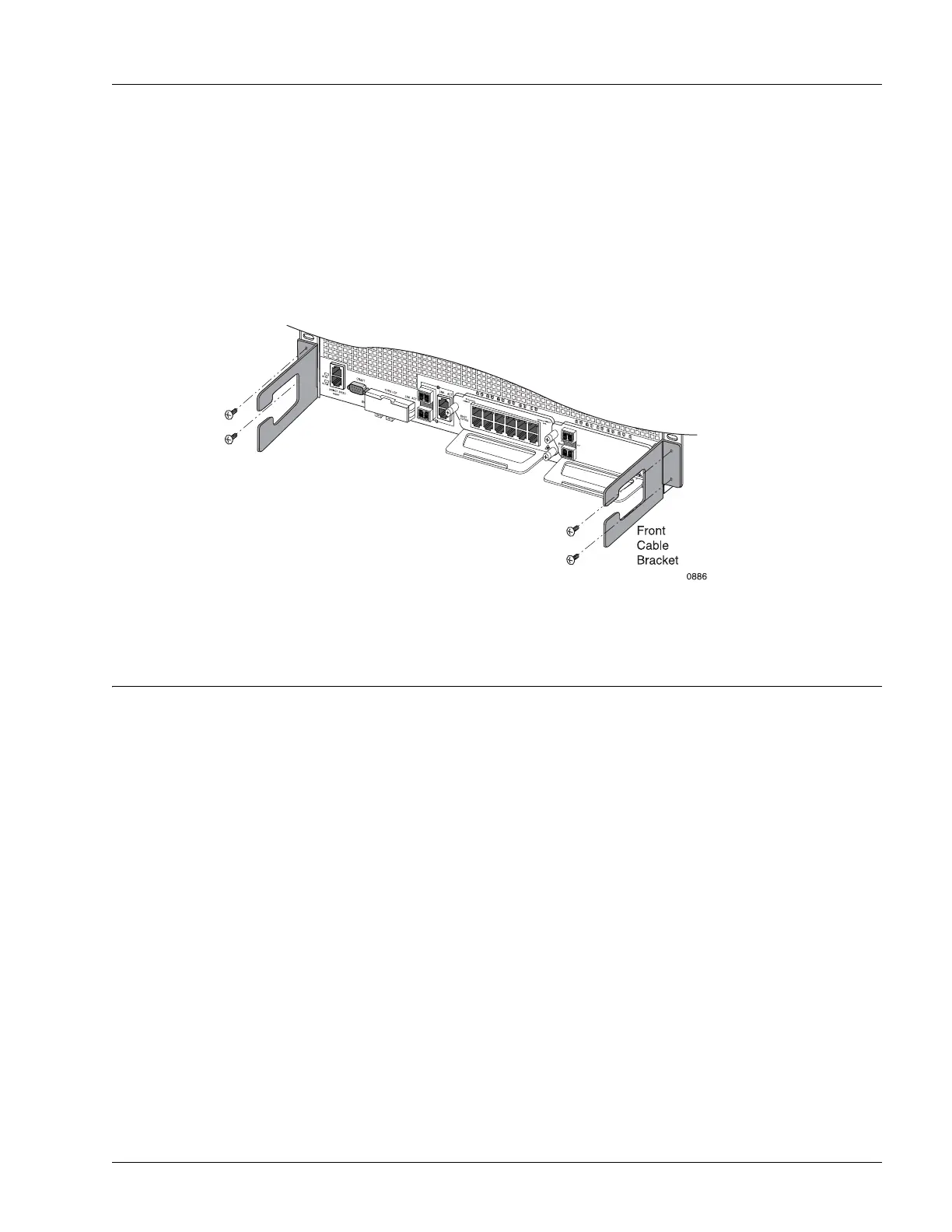

Figure 4-5 Install the Cable Brackets
Connecting the Power Cables
You can power the SmartEdge 100 router from a DC or AC power source. To connect a DC power source
to the SmartEdge 100 chassis, perform the tasks described in the following sections:
• Connect the Chassis Ground Cable
• Install the DC Power Cables
To connect an AC power source to the SmartEdge 100 chassis, perform the tasks described in the following
sections:
• Connect the Chassis Ground Cable
• Install the AC Power Cord
