Connecting the Power Cables
4-12 SmartEdge 100 Router Hardware Guide

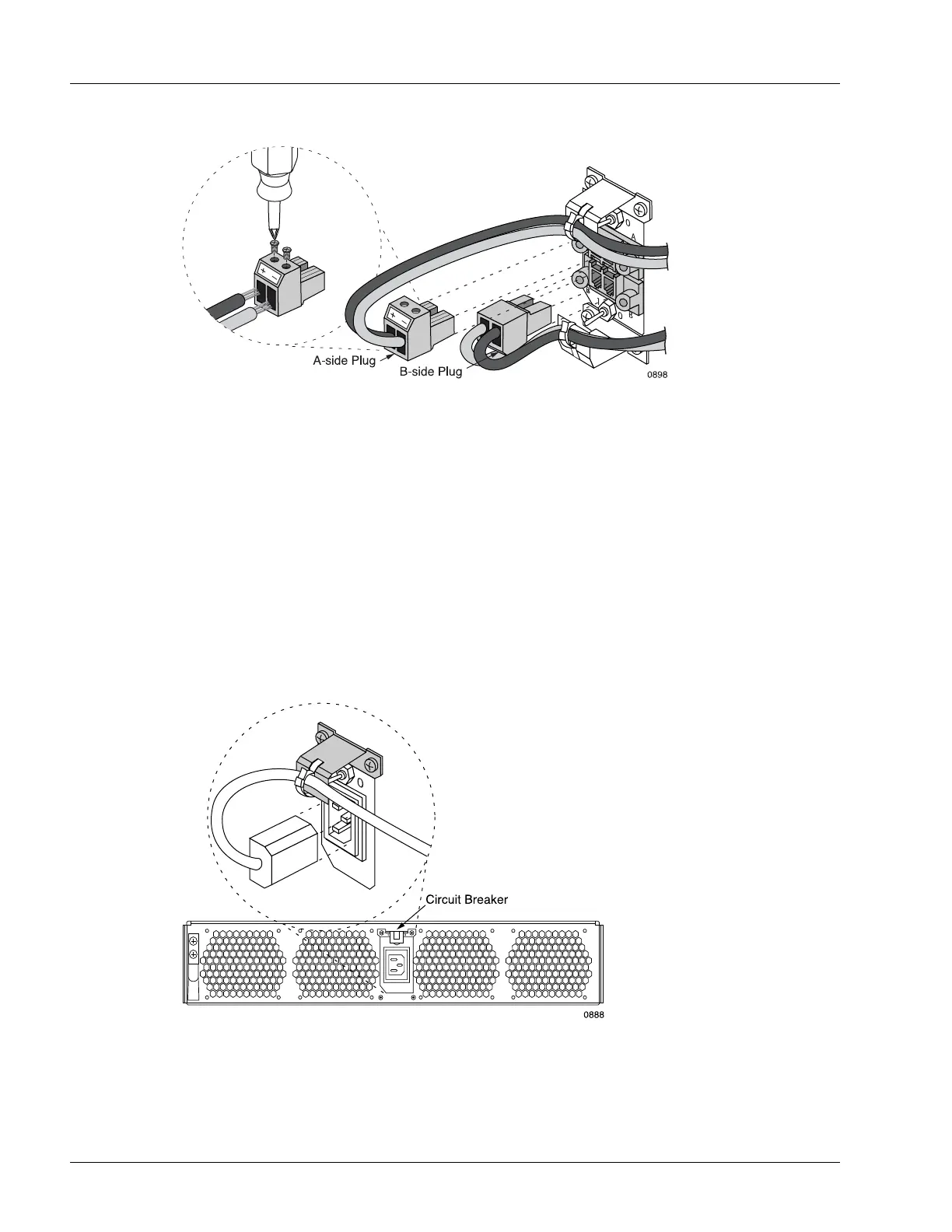

Figure 4-7 Installing the DC Power Cables
Install the AC Power Cord
To install the AC power cord, perform the following steps (see Figure 4-8):
1. Ensure that the circuit breaker toggle switch is set to the off position, which is marked by a stamped “0”
on the chassis rear panel.
2. Insert the AC power cord in the connector.
3. Secure the AC power cord to the circuit-breaker shield.
4. Plug the other end of the AC power cord to a building outlet that provides a 15A circuit.
Figure 4-8 Installing the AC Power Cord
