Model 4720 Control/Communicator Installation Manual (P/N 150476, Rev. A) Revised 10/98
4. The Bell Test at Arming option or the Ringback at Closing option must be selected.
5. Both panic hardwire loops and touchpad zones must be programmed as silent.
6. The ICOM timeout must not exceed 90 seconds.
2.3.2.2 Programming Restrictions
1. The following options MAY NOT be selected for any UL installations:
Force Arm option
Auto Close option
Auto Open option
Listen Time option
Silent Night Trouble option
2. The factory default code (1-2-3-4-5-6) must NOT be used as an access code.
2.3.3 NFPA 72 Temporal Pattern Siren
Local Protective Signaling Systems (UL 864) and
Household Fire Warning Systems (UL 985)
1. The Regency
®
Supervised Siren Module must be wired to the Model 4720. To warn of a
fire, the module provides a UL temporal-three siren that uses three distinctive, repeating
short beeps. The module converts the communicator’s non-supervised, pulsed fire
cadence to a supervised, temporal-three fire cadence. This module also provides a
distinctive supervised burglary (police) siren. See Figure 2a for details on wiring the
module to the Model 4720. For additional information, see the Regency Supervised Siren
Module Installation Instructions (P/N 466-1584).

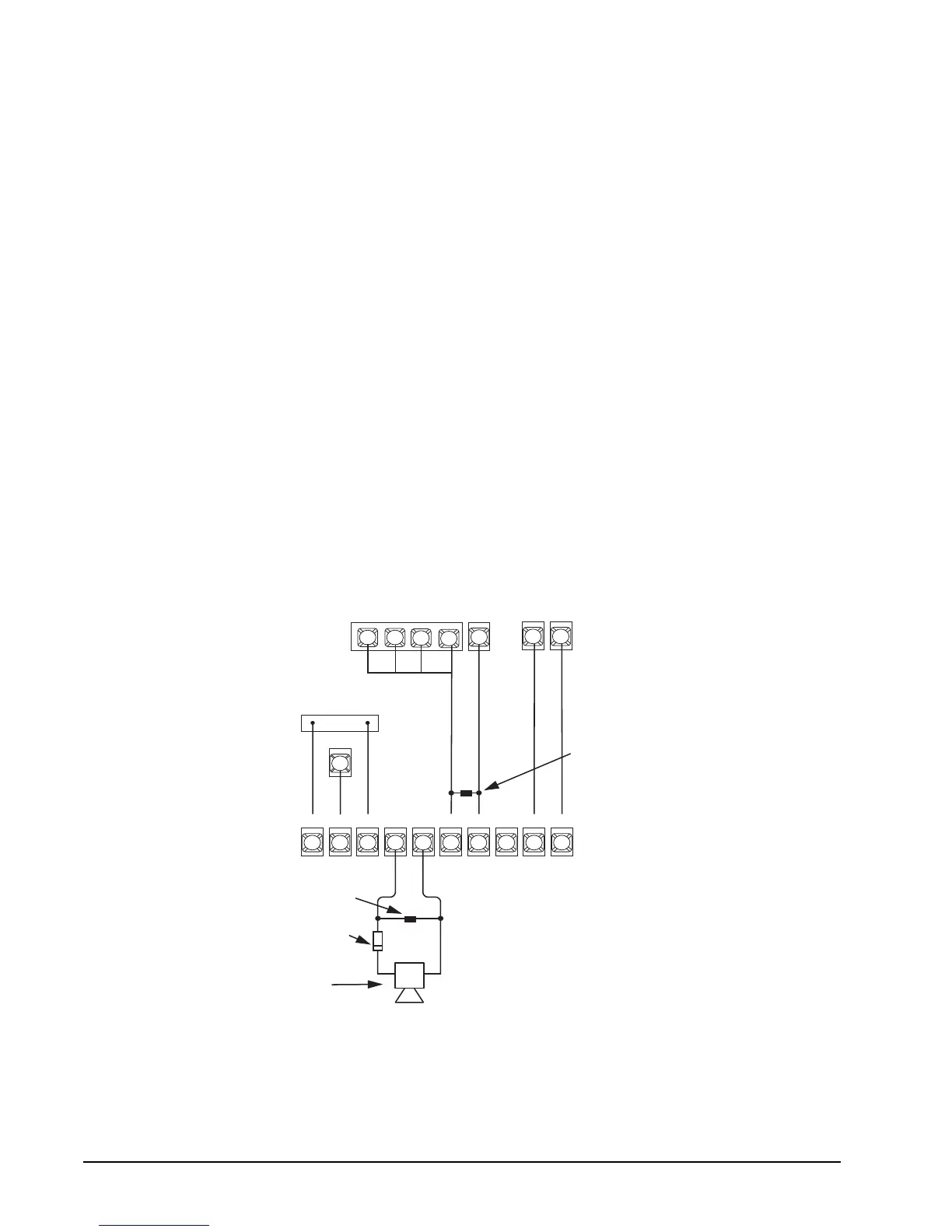

Figure 2a: Connecting the Supervised Siren Module to the Model 4724
8457G30B.DSF
FIRE
4.7k Ohm
EOL RESISTOR 49-365
(LOCATE AT SIREN)
1
COM
2
4
BURG
3
5
NO
7
C
6
COM
9
NC
8
+12V
10
SIREN
+
SIREN
--
+–
12V
SIREN/SOUNDER**
GND
ZONE
16*
INPUT
+12V
GND
13
P3
4.7K OHM EOL RESISTOR
600-7630 (LOCATE AT
SUPERVISED SIREN MODULE)
1A, 50V DIODE**
IN 4001 07-001
(LOCATE AT SIREN)
FIRE
ALARM
INTRU-
SION
ALARM
REGENCY MODEL 4720(A)
PANEL TERMINALS
REGENCY
MODEL 4180
STATUS
DISPLAY
MODULE
CONNECTOR
AND
TERMINAL
SUPERVISED SIREN
MODULE TERMINALS
* OR ANY ZONE INPUT PROGRAMED AS A
NORMALLY-OPEN SUPERVISORY INPUT.
56
14
** NOTE POLARITY.
38
1211
ZONE LOOP POWER
13
