Regency
®
Model 4720 Control/Communicator Installation Manual (P/N 150476, Rev. A) Revised 10/98
55
15 Touchpad Operation
The following paragraphs describe the functions of the indicators and switches provided on the touchpads. Keep in
mind that some of the touchpads do not provide all of the functions listed. If you are using a touchpad that does not
have a described function, skip that particular paragraph.

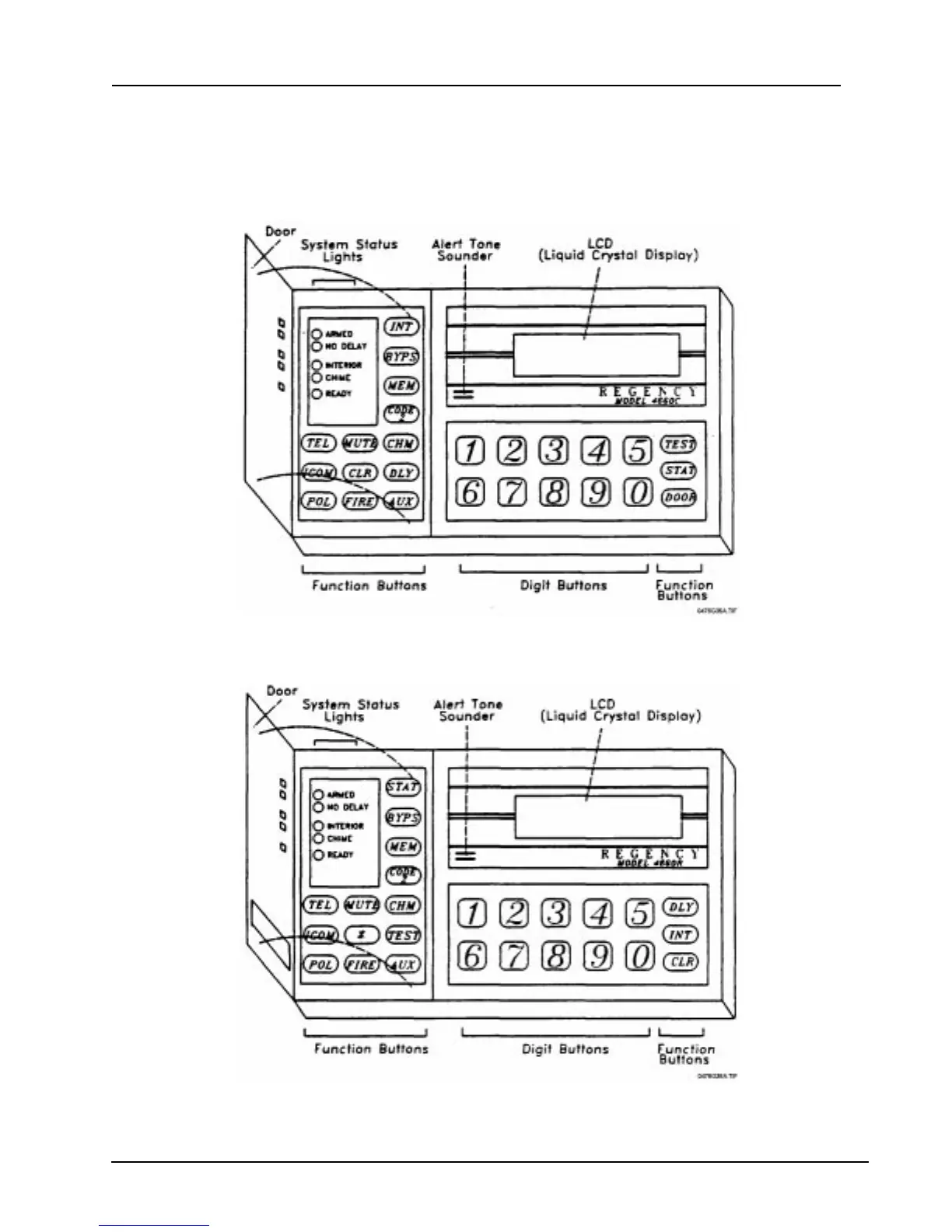

Figure 15a: Model 4660B/C Commercial Touchpad
Figure 15b: Model 4660R Residential Touchpad
