Regency

Model 4720 Control/Communicator Installation Manual (P/N 150476, Rev. A) Revised 10/98

3.15 Non-UL Wiring Diagram

For UL installations, refer to the wiring diagram mounted in the front cover of the Model 4720 only. This

diagram contains items which are not currently acceptable for UL installations. These items are the Model

4203 Touchpad, PLC Connector, 7140 relays, and external siren driver. The UL wiring diagram also

contains various electrical ratings and restrictions.

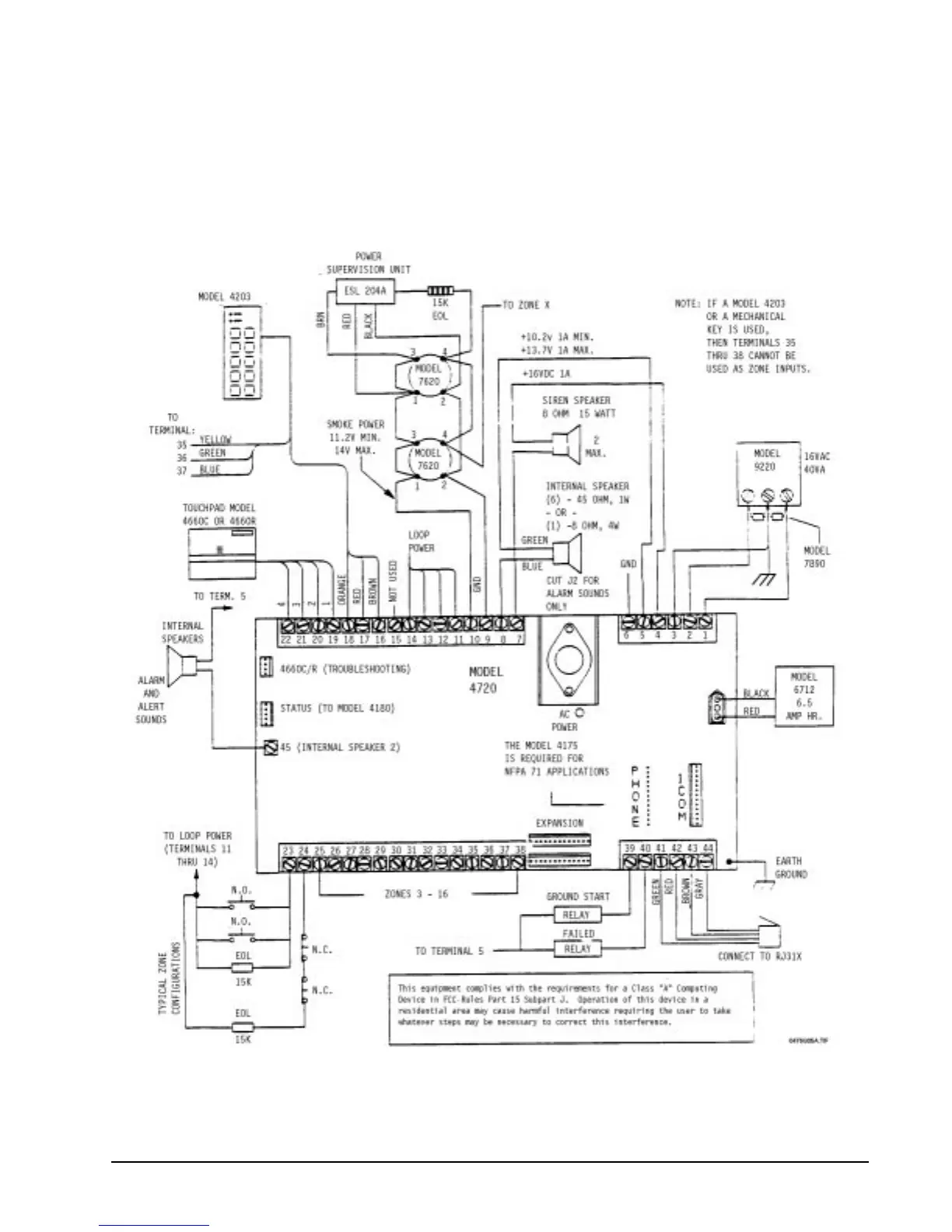

Figure 3.15a: Model 4720 Non-UL Wiring Diagram
