VR-3800D Series Digital Video Recorder
32

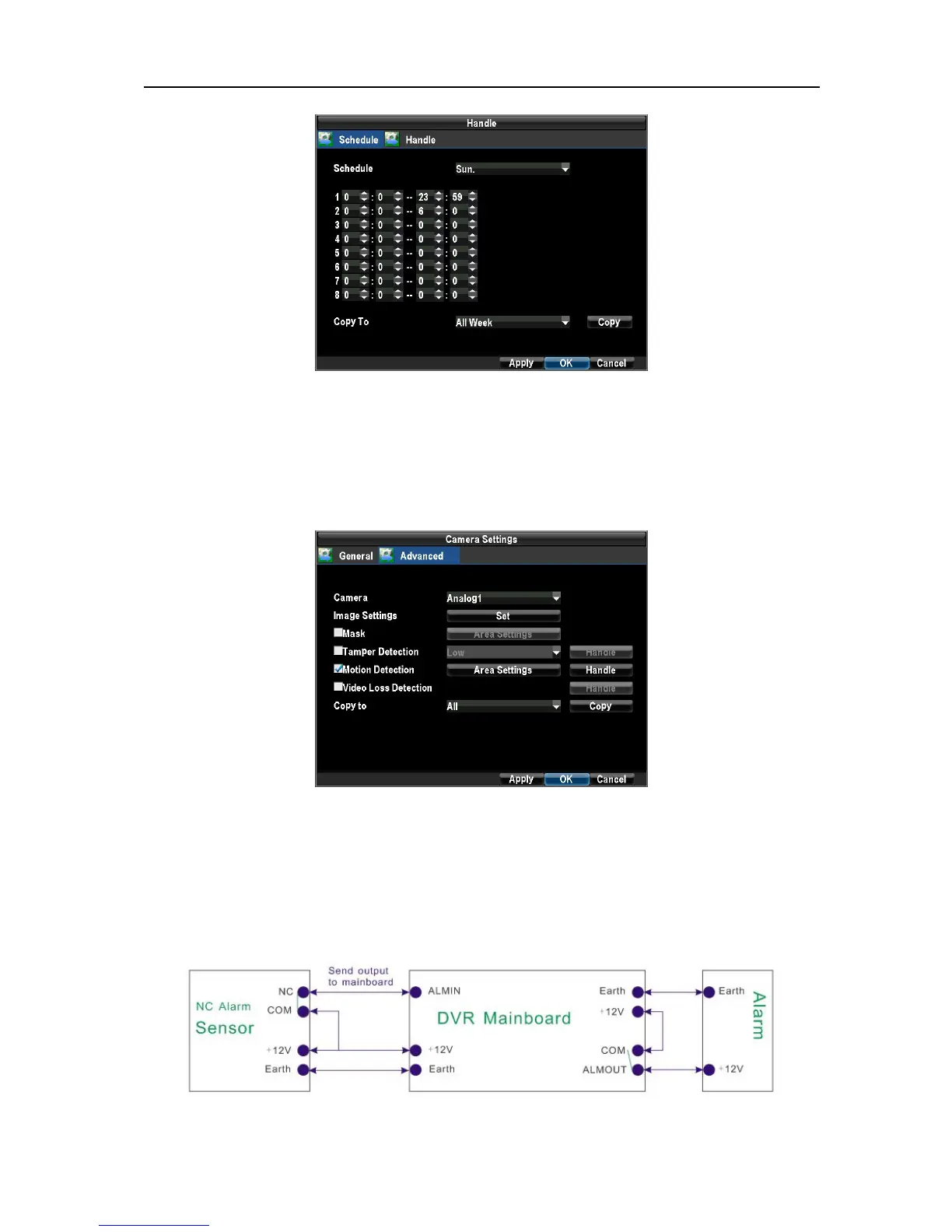

Arm time can be set for a specific day or the whole week, 8 periods can be set for each day.
It is important to note that time periods cannot be overlapped.
Click APPLY to finish configuration. Repeat steps 2-3 for other camera. If other camera
settings are the same, proceed to step 4.
4. I f other cameras settings are the same, copy this settings to other camera.
6.2. Setting up Sensor Alarms.
Alarming circuit description.
If connected to N.C.(normal close) alarm, set the DVR main controller board to N.C. alarm
mode. Then the 1/0 alarm input would trigger alarm under low level voltage.
