Bosch Rexroth Canada ı May.2018 ı Revision 7.0

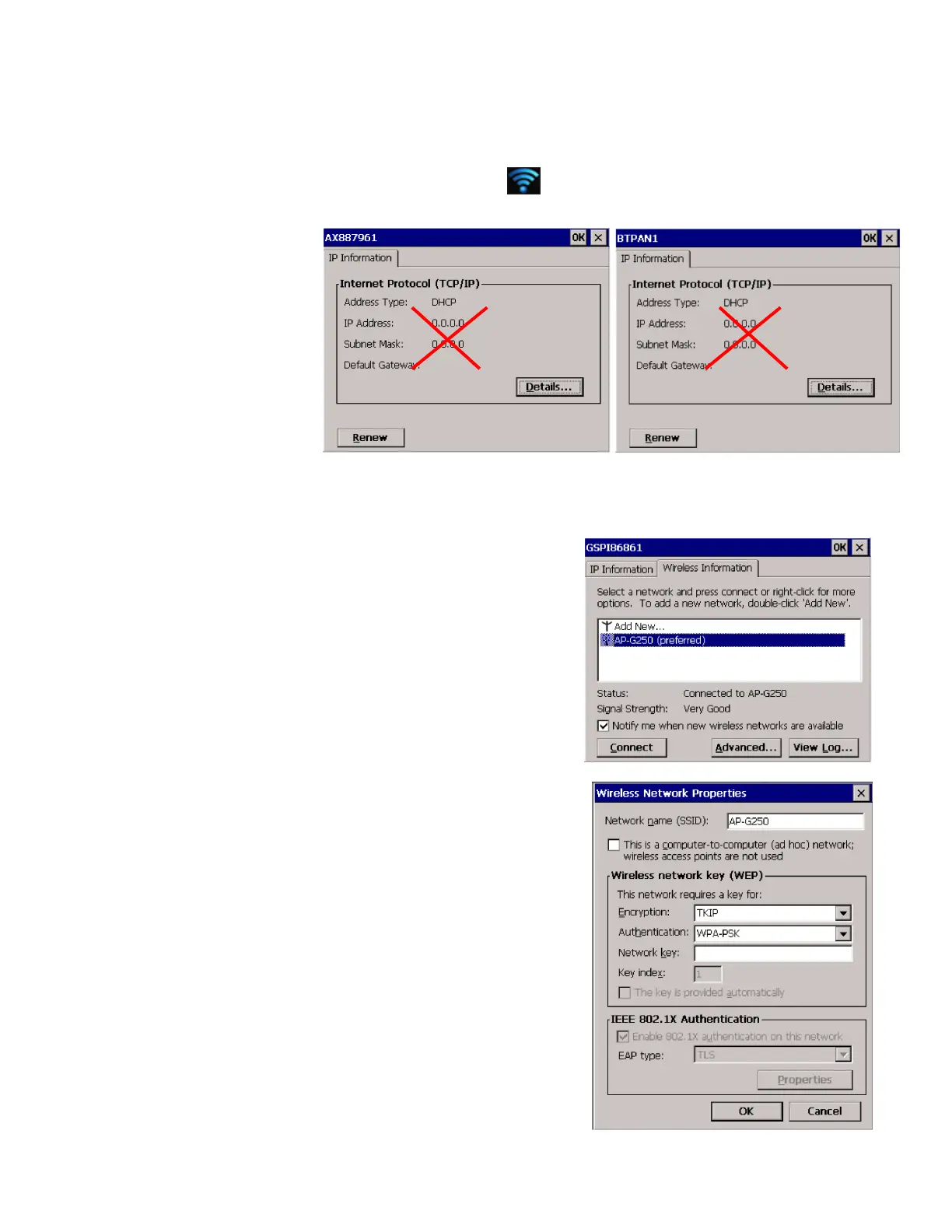

When the network icon is pressed there are three windows opening up,
AX887961(Ethernet, NOT USED), BTPAN1(Bluetooth, NOT
USED),GSPI86861(WiFi).
**Note: Above two windows DO NOT need to be configured, just close them.
The WiFi setup is almost
identical to standard
Windows.
- Search for networks
- Click on ‘Connect’
- Enter ‘security key’
- Uncheck ‘Notify
me…’ to stop this
window pop up every
time the system starts
up.
- Click on ‘Advanced’
to remove or modify
the network profile
