4-2 Identifying and Checking the Delivered Components Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Double-Axis Drive Controllers
1. Product
1.1 HMD . . . . . . . . . = HMD
2. Line
2.1 1 . . . . . . . . . . . . . . . . . . . = 01
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . . . . = 1
4. Power supply
4.1 without . . . . . . . . . . . . . . . . . . . . . = N
5. Cooling mode
5.1 Air, internal (through integrated blower) = W
6. eff. peak current
6.1 12 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0012
6.2 20 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0020
6.3 36 A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 0036
7. Protection mode
7.1 IP 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = A
8. DC-bus nominal voltage
8.1 DC 700 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 07
9. Other design
9.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NNNN
10. Standard reference
Standard Titel Edition
DIN EN 60529 Degrees of protection provided by enclosures (IP-Code) 2000-09
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
HMD01 . 1N-W0020 -A- 07-NNNN

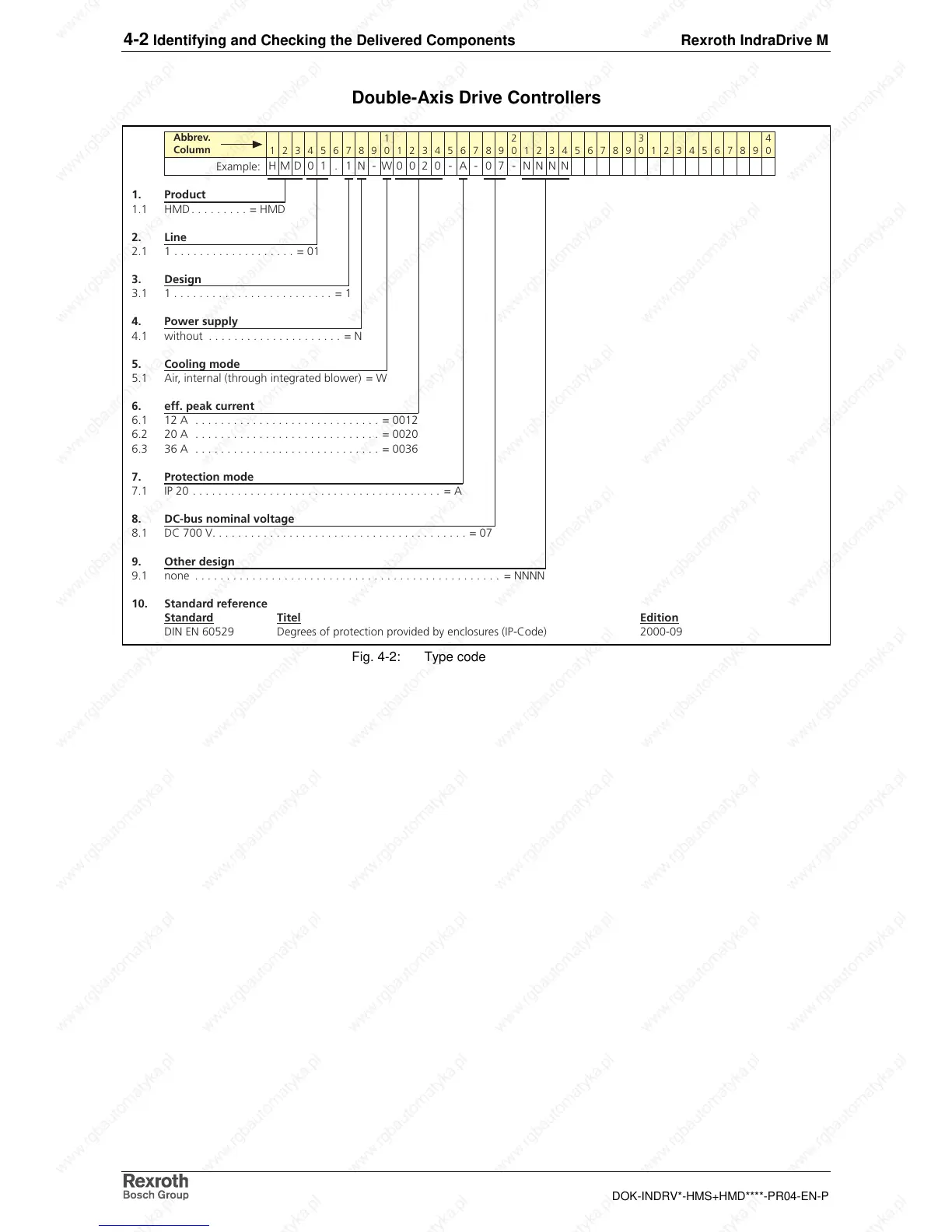

Fig. 4-2: Type code
