REXROTH IndraDrive M - Type Plates on the Drive Controller

Rexroth IndraDrive M Identifying and Checking the Delivered Components 4-3
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Type Plates on the Drive Controller
lt_rt_typenschilderf2.fh7
1
2

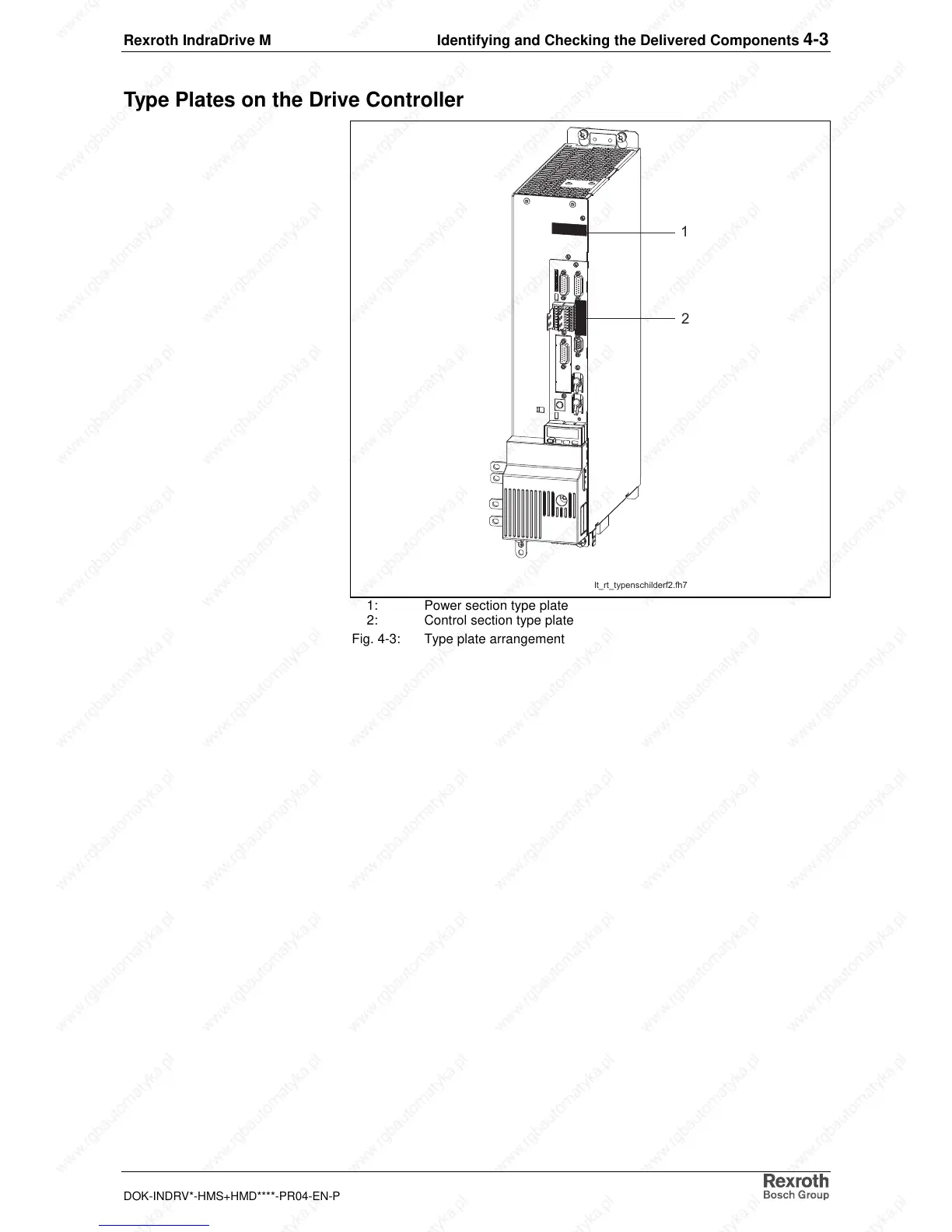

1: Power section type plate
2: Control section type plate
Fig. 4-3: Type plate arrangement
