6-22 Electrical Data Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Overview
HMS01.1N-W0020 and HMS01.1N-W0036,
HMD01.1N-W0020 and HMD01.1N-W0036
hms0020_frontf2.fh7
X1 inX1 out
+24 V
0 V
L+
L-
control voltage
DC bus
equipment grounding
conductor

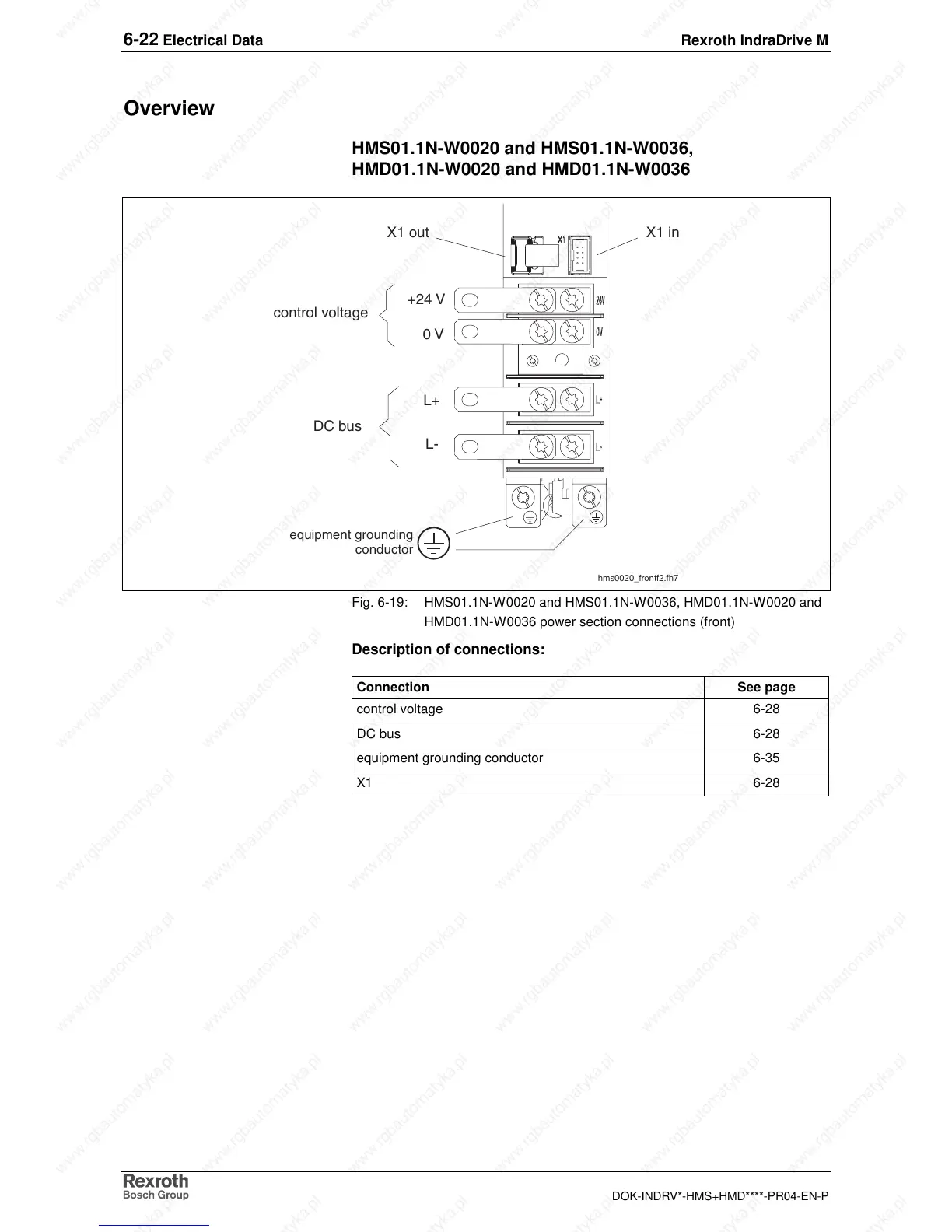

Fig. 6-19: HMS01.1N-W0020 and HMS01.1N-W0036, HMD01.1N-W0020 and
HMD01.1N-W0036 power section connections (front)
Description of connections:
Connection See page
control voltage 6-28
DC bus 6-28
equipment grounding conductor 6-35
X1 6-28
