4 Identifying and Checking the Delivered
Components
4.1 Device Types
Type Code
Note: The following illustrates the basic structure of the type codes.
Your sales representative will help with the current status of
available versions.
Single-Axis Drive Controllers
1. Product
1.1 HMS . . . . . . . = HMS
2. Line
2.1 1. . . . . . . . . . . . . . . . . = 01
3. Design
3.1 1 . . . . . . . . . . . . . . . . . . . . . . = 1
4. Power suppyl
4.1 without . . . . . . . . . . . . . . . . . . = N
5. Cooling mode
5.1
Air, internal (through integrated blower) = W
6. Maximum current
6.1 20 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0020
6.2 36 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0036
6.3 54 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0054
6.4 70 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0070
6.5 150 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0150
6.6 210 A . . . . . . . . . . . . . . . . . . . . . . . . . = 0210
7. Protection mode
7.1 IP 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = A
8. DC-bus nominal voltage
8.1 DC 700 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = 07
9. Other design
9.1 none . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . = NNNN
10. Standard reference
Standard Title Edition
DIN EN 60529 Degrees of protection provided by enclosures (IP-Code) 2000-09
1234 6789
1
05 1234 6789
2
05 1234 6789
3
05 1234 6789
4
05
Example:
Abbrev.
Column
HMS01 . 1N-W0020-A- 07 -NNNN

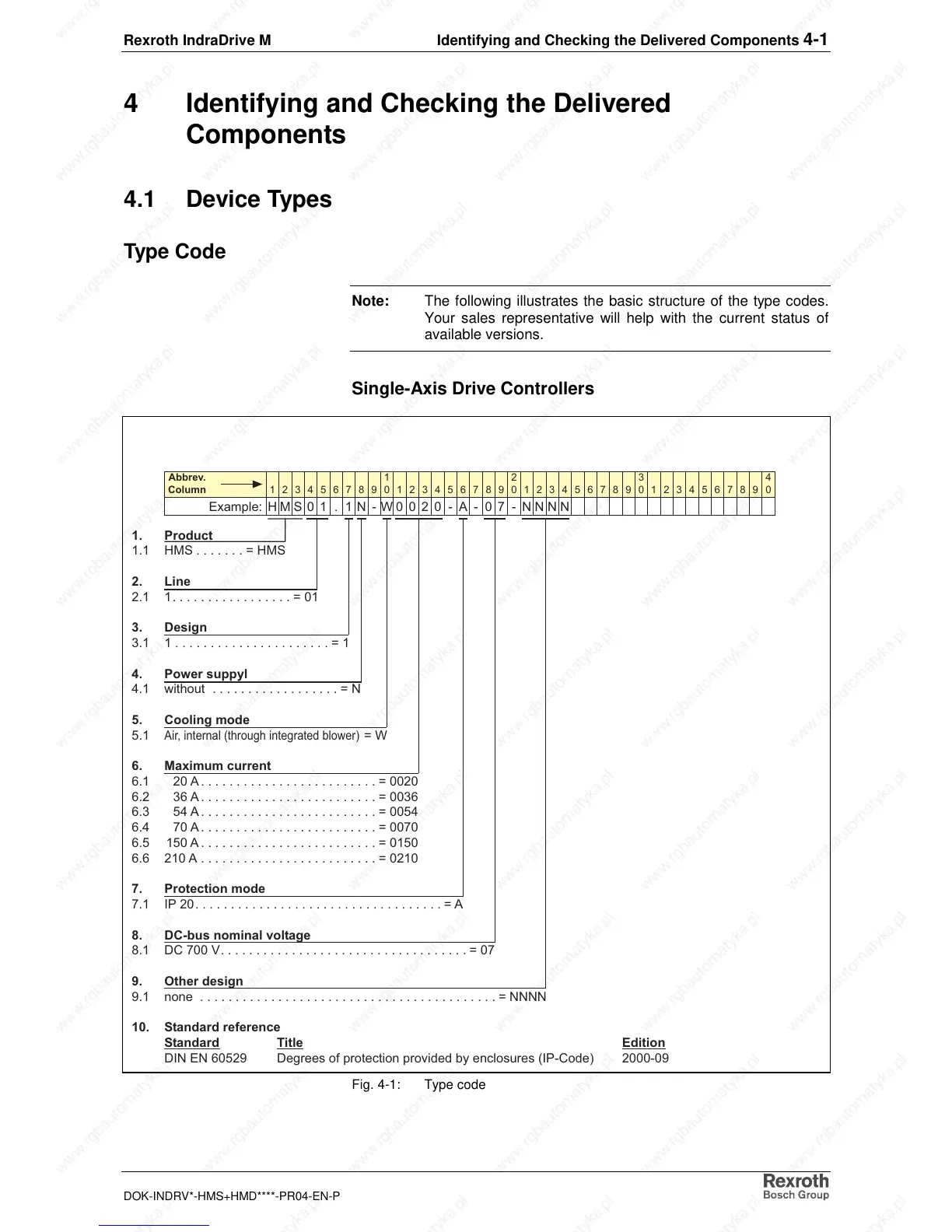

Fig. 4-1: Type code
