Rexroth IndraDrive M Electrical Data 6-35
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Equipment Grounding Conductor Connection
DANGER
Lethal electric shock caused by live parts with
more than 50 V!
⇒ Via the joint bar on the front connect the drive
controller to the supply unit.
⇒ Via the joint bar on the front connect the drive
controller to the neighboring drive controller.
⇒ Connect the equipment grounding conductor
terminal of the supply unit to the equipment
grounding conductor system of the control cabinet.
masseanschluss_frontf2
1
1: joint bar

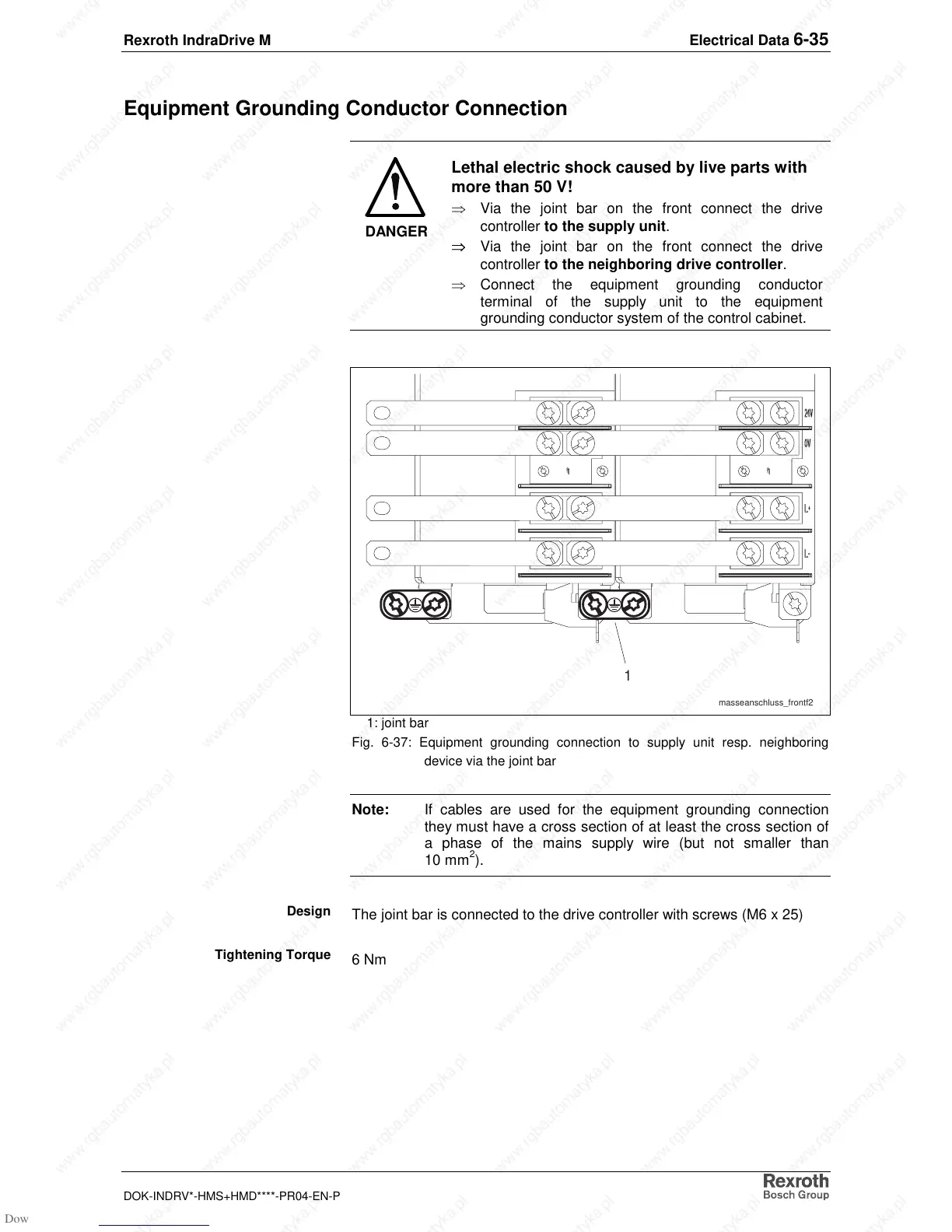

Fig. 6-37: Equipment grounding connection to supply unit resp. neighboring
device via the joint bar
Note: If cables are used for the equipment grounding connection
they must have a cross section of at least the cross section of
a phase of the mains supply wire (but not smaller than
10 mm
2
).
The joint bar is connected to the drive controller with screws (M6 x 25)
6 Nm
Design
Tightening Torque
