Mounting
hms_beruehrschutz.fh7

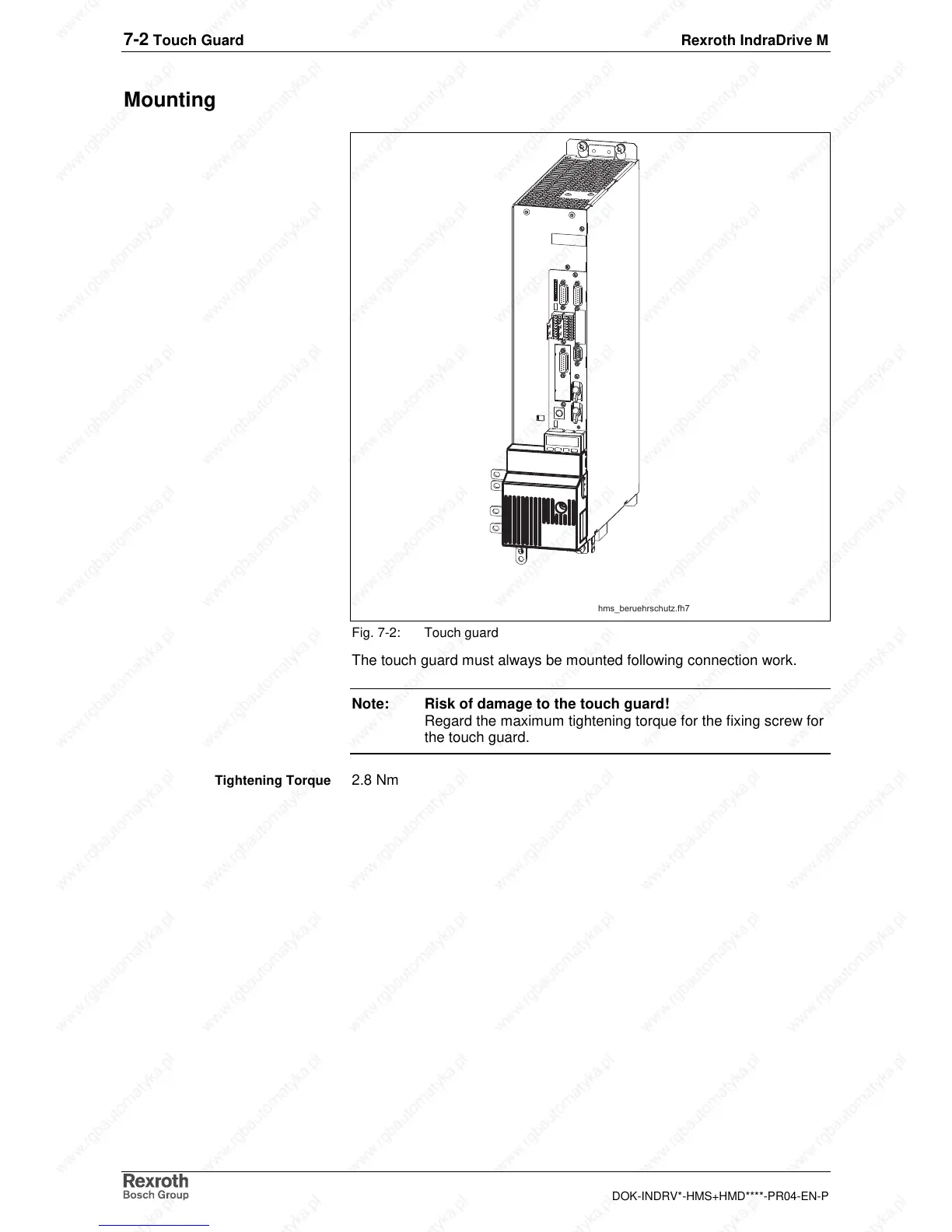

Fig. 7-2: Touch guard
The touch guard must always be mounted following connection work.
Note: Risk of damage to the touch guard!
Regard the maximum tightening torque for the fixing screw for
the touch guard.
2.8 Nm
Tightening Torque
