XS1, Shield Connection (Control Wires)
XS1f2
XS1

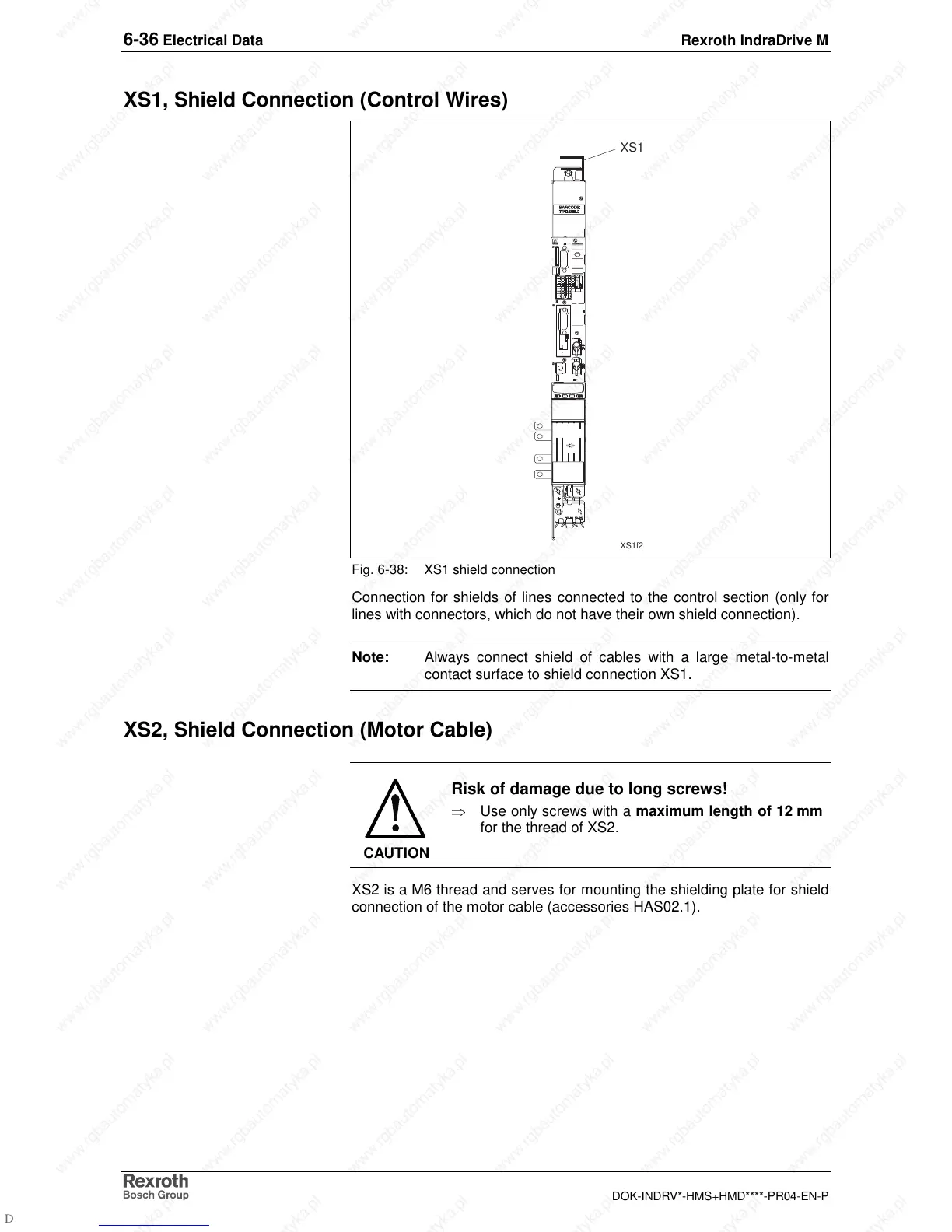

Fig. 6-38: XS1 shield connection
Connection for shields of lines connected to the control section (only for
lines with connectors, which do not have their own shield connection).
Note: Always connect shield of cables with a large metal-to-metal
contact surface to shield connection XS1.
XS2, Shield Connection (Motor Cable)
CAUTION
Risk of damage due to long screws!
⇒ Use only screws with a maximum length of 12 mm
for the thread of XS2.
XS2 is a M6 thread and serves for mounting the shielding plate for shield
connection of the motor cable (accessories HAS02.1).
