Rexroth IndraDrive M Mechanical Data 5-9
DOK-INDRV*-HMS+HMD****-PR04-EN-P

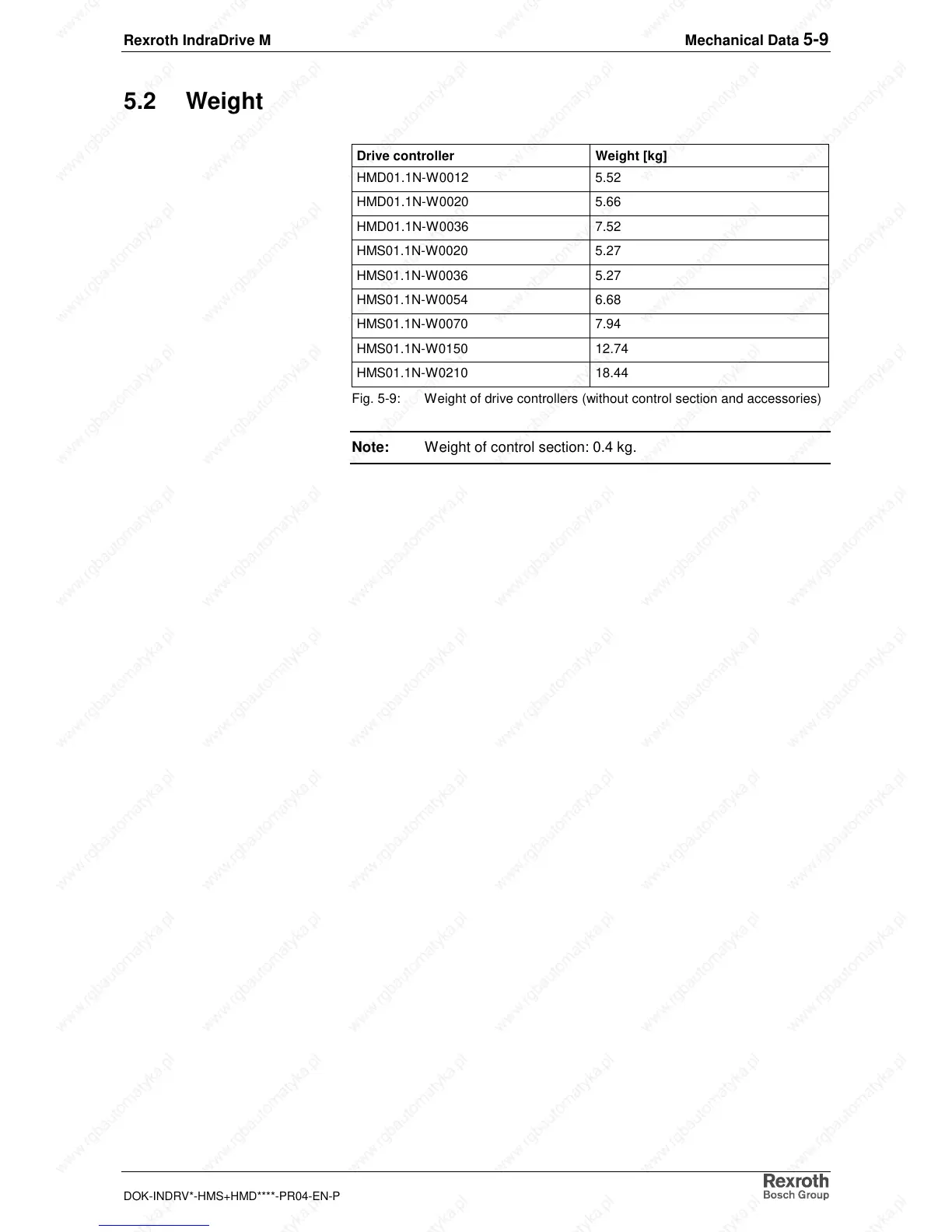

5.2 Weight
Drive controller Weight [kg]
HMD01.1N-W0012 5.52
HMD01.1N-W0020 5.66
HMD01.1N-W0036 7.52
HMS01.1N-W0020 5.27
HMS01.1N-W0036 5.27
HMS01.1N-W0054 6.68
HMS01.1N-W0070 7.94
HMS01.1N-W0150 12.74
HMS01.1N-W0210 18.44
Fig. 5-9: Weight of drive controllers (without control section and accessories)
Note: Weight of control section: 0.4 kg.
