REXROTH IndraDrive M - Dimensional Drawing for HMS01.1 N-W0210

5-8 Mechanical Data Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Dimensional Drawing for HMS01.1N-W0210
A) minimum mounting clearance (plus space for motor cable)
Note: Rexroth IndraDrive supply units require a greater minimum
mounting clearance!
B) view from the rear!
C) dimension for accessories HAS02.1 (motor cable routing horizontal)
D) dimension for accessories HAS02.1 (motor cable routing with 45°)
E) dimension for accessories HAS02.1 (motor cable routing vertical)

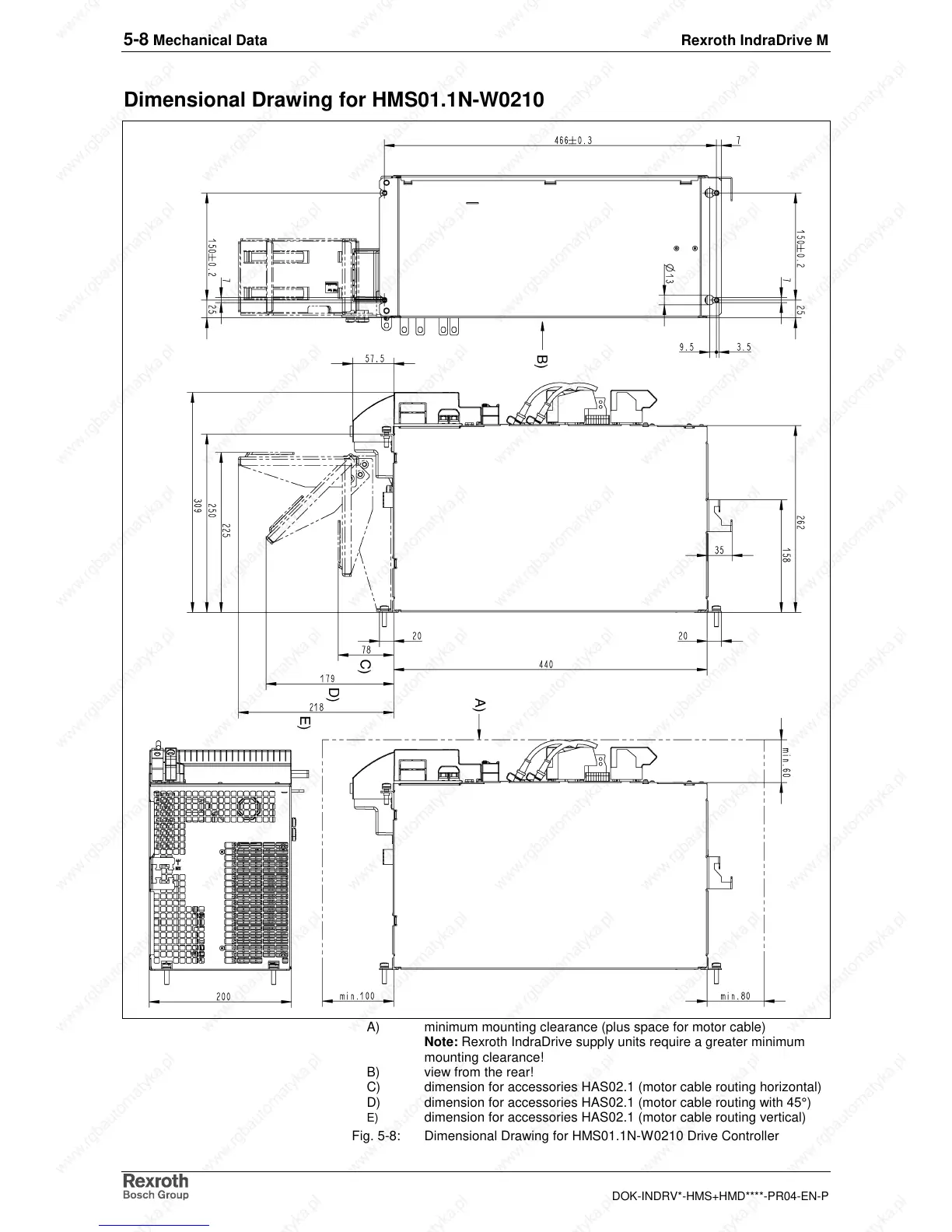

Fig. 5-8: Dimensional Drawing for HMS01.1N-W0210 Drive Controller
