5 Mechanical Data
5.1 Dimensions

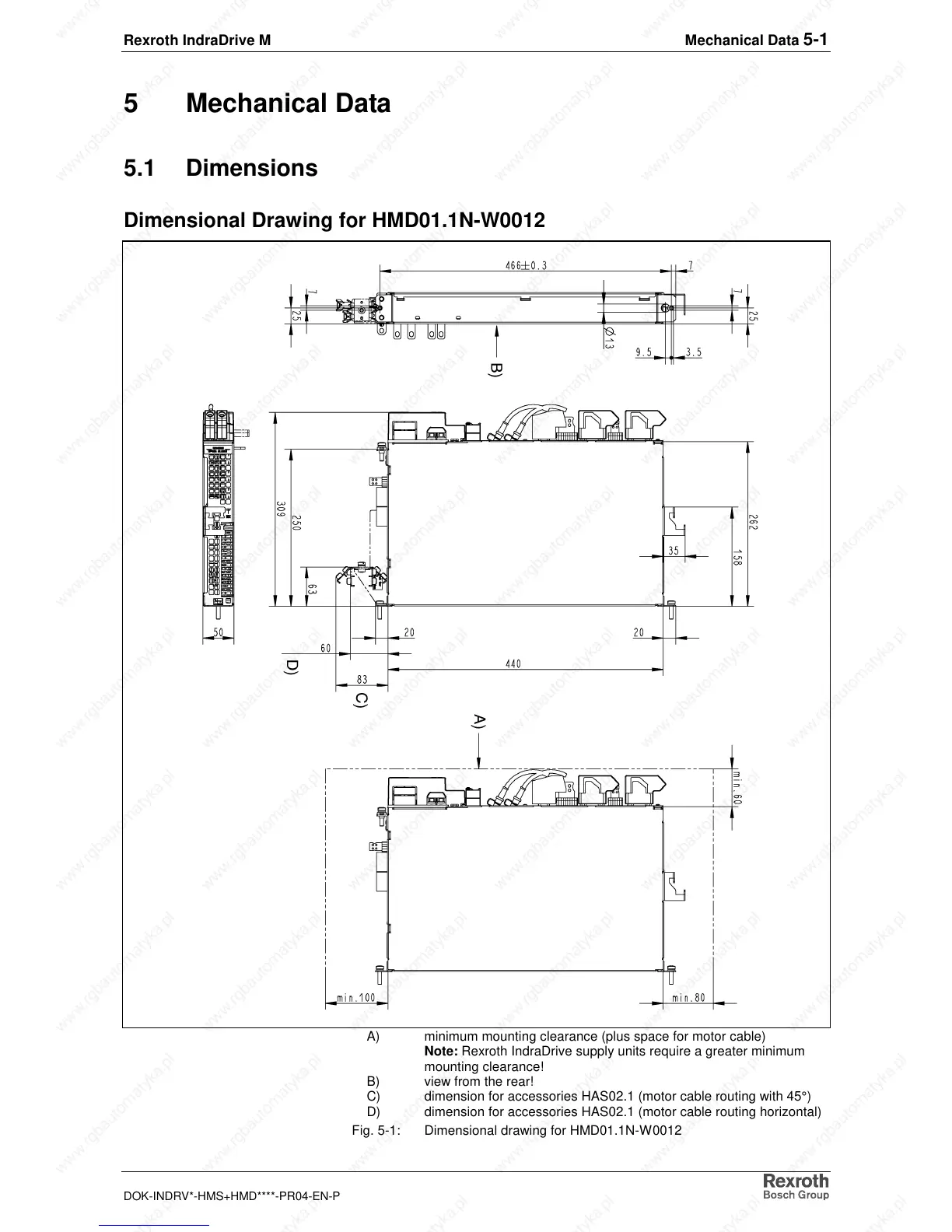

Dimensional Drawing for HMD01.1N-W0012
A) minimum mounting clearance (plus space for motor cable)
Note: Rexroth IndraDrive supply units require a greater minimum
mounting clearance!
B) view from the rear!
C) dimension for accessories HAS02.1 (motor cable routing with 45°)
D) dimension for accessories HAS02.1 (motor cable routing horizontal)
Fig. 5-1: Dimensional drawing for HMD01.1N-W0012
