7 Touch Guard
WARNING
Lethal electric shock caused by live parts with
more than 50 V!
⇒ The appropriate touch guard must be mounted for
each drive controller following connection work.
⇒ Never mount a damaged touch guard.
⇒ Immediately replace a damaged touch guard by an
undamaged touch guard.
Cutouts
hms_beruehrschutz_seite.fh7
A
B C

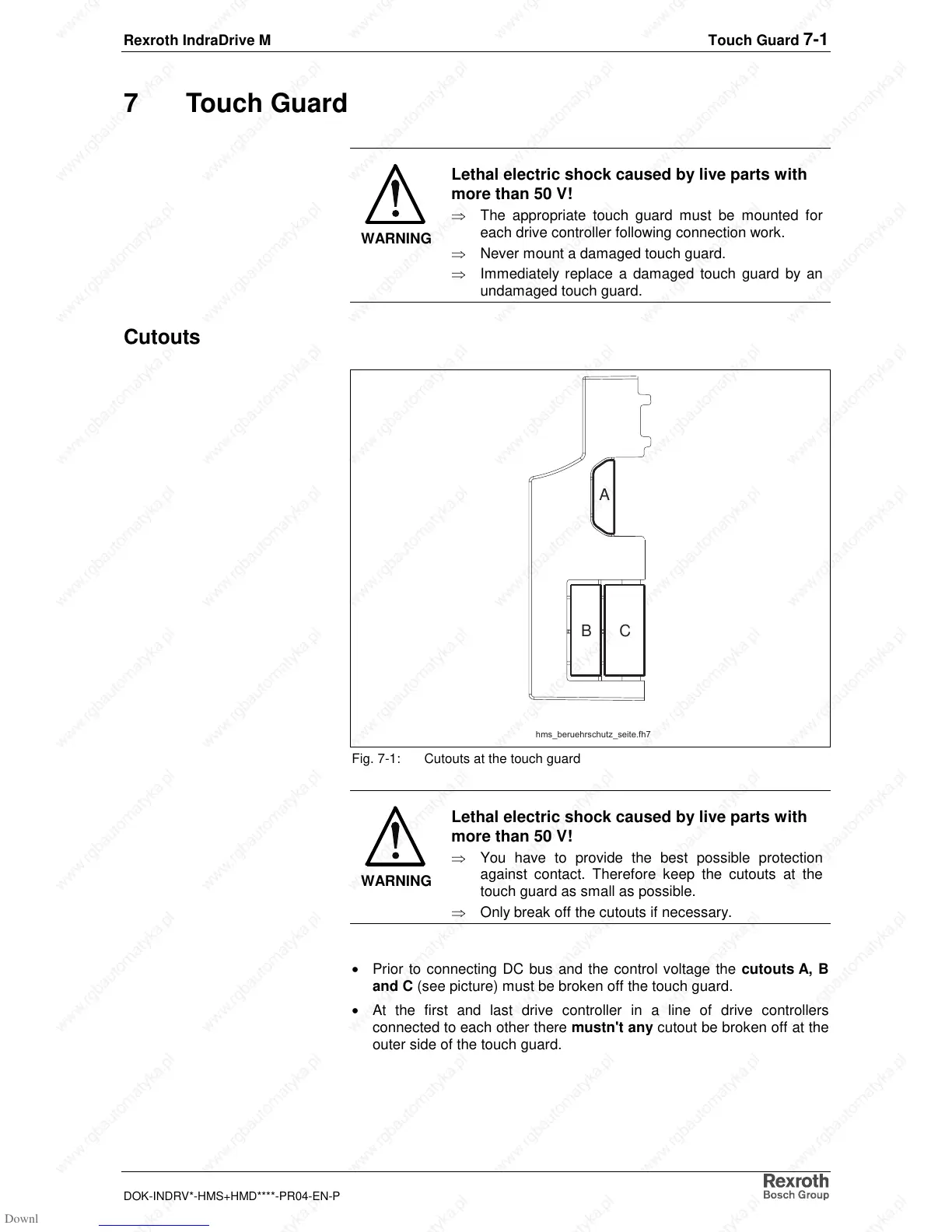

Fig. 7-1: Cutouts at the touch guard
WARNING
Lethal electric shock caused by live parts with
more than 50 V!
⇒ You have to provide the best possible protection
against contact. Therefore keep the cutouts at the
touch guard as small as possible.
⇒ Only break off the cutouts if necessary.
• Prior to connecting DC bus and the control voltage the cutouts A, B
and C (see picture) must be broken off the touch guard.
• At the first and last drive controller in a line of drive controllers
connected to each other there mustn't any cutout be broken off at the
outer side of the touch guard.
