Rexroth IndraDrive M Mechanical Data 5-5
DOK-INDRV*-HMS+HMD****-PR04-EN-P

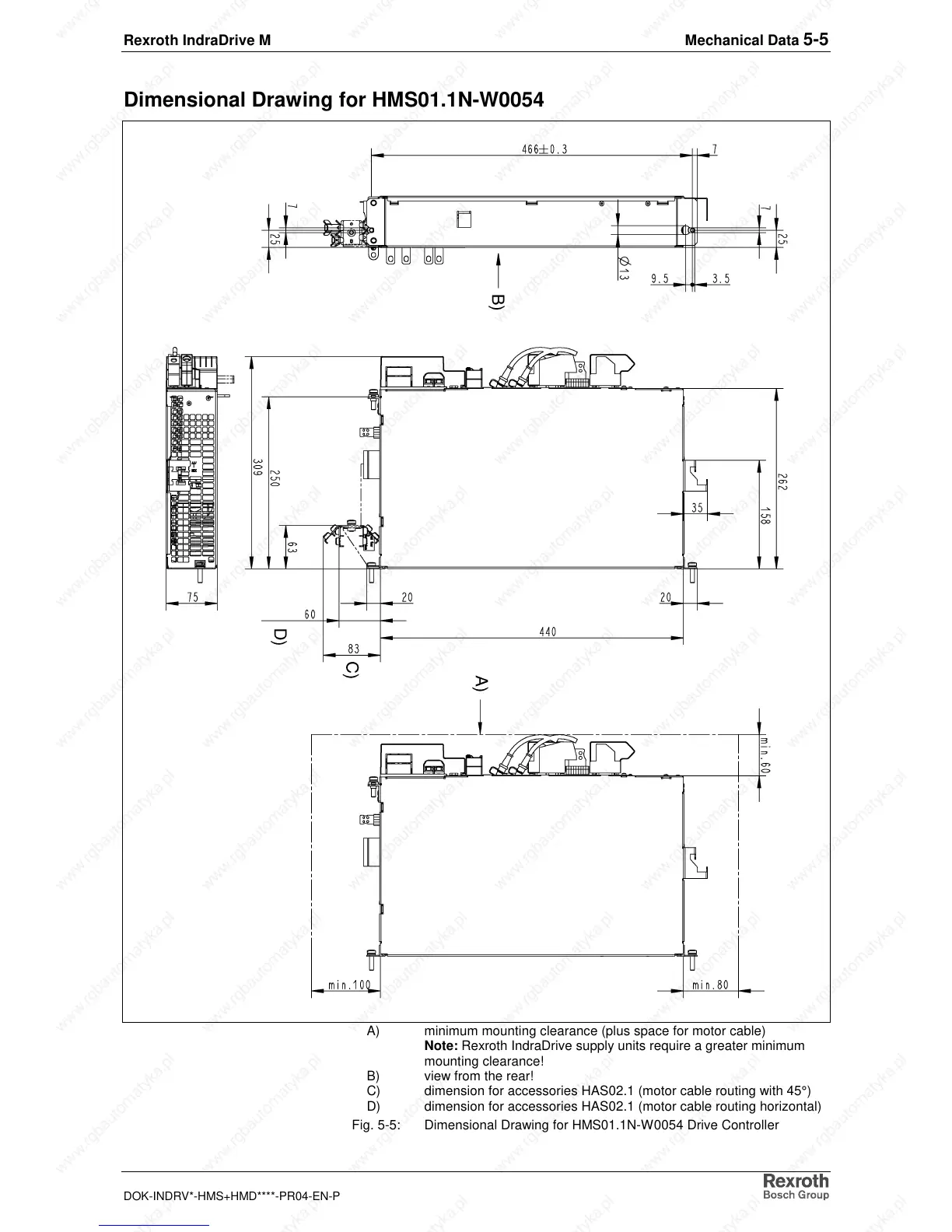

Dimensional Drawing for HMS01.1N-W0054
A) minimum mounting clearance (plus space for motor cable)
Note: Rexroth IndraDrive supply units require a greater minimum
mounting clearance!
B) view from the rear!
C) dimension for accessories HAS02.1 (motor cable routing with 45°)
D) dimension for accessories HAS02.1 (motor cable routing horizontal)
Fig. 5-5: Dimensional Drawing for HMS01.1N-W0054 Drive Controller
