Rexroth IndraDrive M Electrical Data 6-17
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Examples of Allowed Load Profiles
Designation Symbol Unit HMS01.1N-W0150 HMS01.1N-W0210
Characteristic curve
output current;
operation at overload
Peak load allowance:
Iout_base
Iout_peak
=K
T
I
out_base
t
I
I
out_peak
t
I
out_peak_1 (4 kHz)
150,0 210,0
Iout_peak_1 (8 kHz)
130,3 183,9
Iout_peak_1 (12 kHz)
95,1 133,9
Maximum output
current
t=400ms; T=4s;
Iout_peak_1 (16 kHz)
A
72,4 101,0
I
out_base_1 (4 kHz)
33,3 46,7
I
out_base_1 (8 kHz)
29,0 40,9
I
out_base_1 (12 kHz)
21,1 29,8
Base load current
available at maximum
current
t=400ms; T=4s;
I
out_base_1 (16 kHz)
A
16,1 22,4
I
out_peak_3 (4 kHz)
150,0 210,0
I
out_peak_3 (8 kHz)
106,0 155,0
I
out_peak_3 (12 kHz)
76,6 111,5
Maximum output
current
t=2s; T=20s; K=2,5
I
out_peak_3 (16 kHz)
A
58,2 83,7
I
out_base_3 (4 kHz)
60,0 84,0
I
out_base_3 (8 kHz)
42,4 62,0
I
out_base_3 (12 kHz)
30,6 44,6
Base load current
available at maximum
current
t=2s; T=20s; K=2,5
I
out_base_3 (16 kHz)
A
23,3 33,5
I
out_peak_4 (4 kHz)
108,5 165,6
I
out_peak_4 (8 kHz)
73,7 112,3
I
out_peak_4 (12 kHz)
52,9 80,2
Maximum output
current
t=60s; T=5min; K=1,7
I
out_peak_4 (16 kHz)
A
40,3 60,0
I
out_base_4 (4 kHz)
63,8 97,4
I
out_base_4 (8 kHz)
43,4 66,1
I
out_base_4 (12 kHz)
31,1 47,2
Base load current
available at maximum
current
t=60s; T=5min; K=1,7
I
out_base_4 (16 kHz)
A
23,7 35,3
I
out_peak_5 (4 kHz)
103,2 156,7
I
out_peak_5 (8 kHz)
69,9 105,9
I
out_peak_5 (12 kHz)
50,2 75,6
Maximum output
current
t=60s; T=10min; K=1,7
I
out_peak_5 (16 kHz)
A
38,1 56,5
I
out_base_5 (4 kHz)
86,0 130,6
I
out_base_5 (8 kHz)
58,2 88,3
I
out_base_5 (12 kHz)
41,8 63,0
Base load current
available at maximum
current
t=60s; T=10min; K=1,7
I
out_base_5 (16 kHz)
A
31,8 47,1

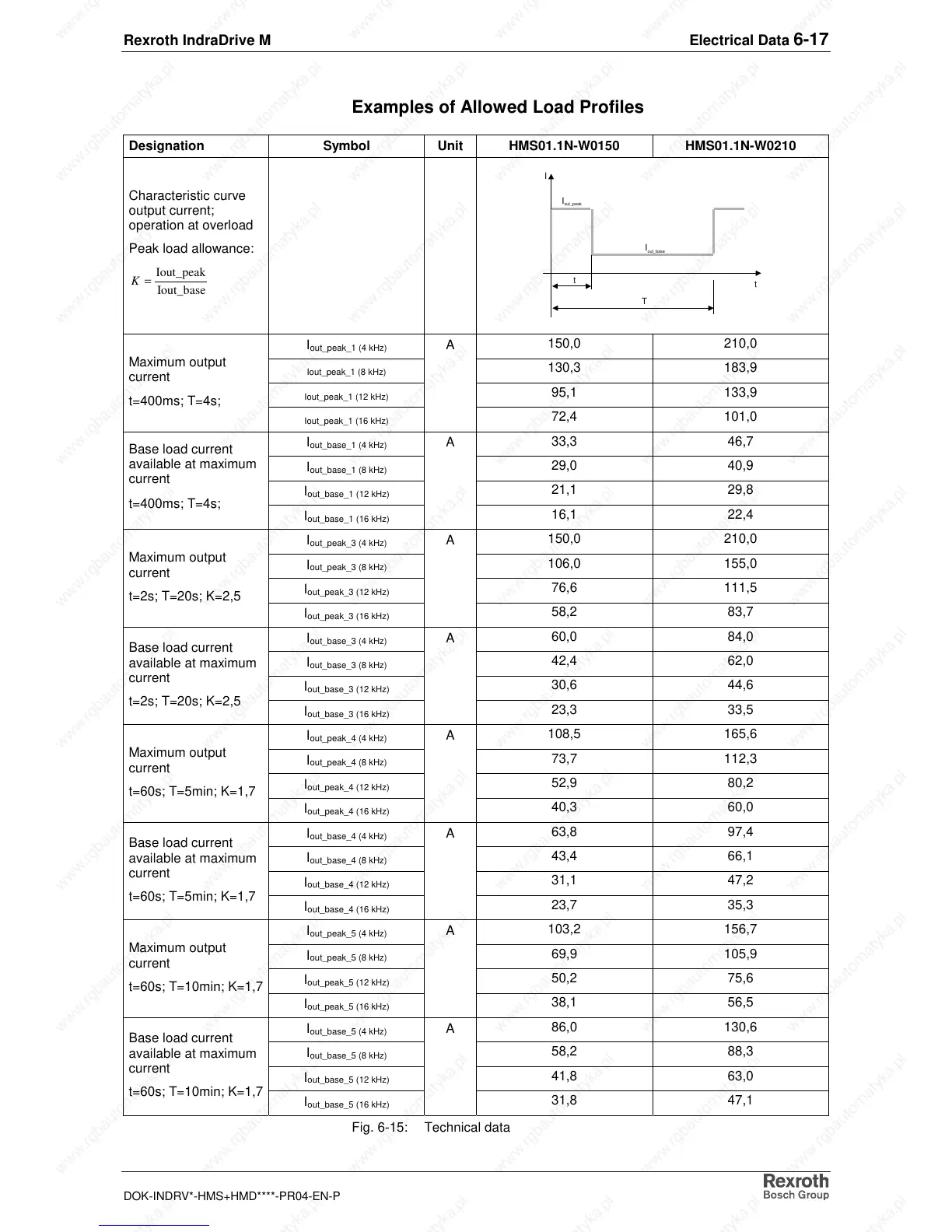

Fig. 6-15: Technical data
