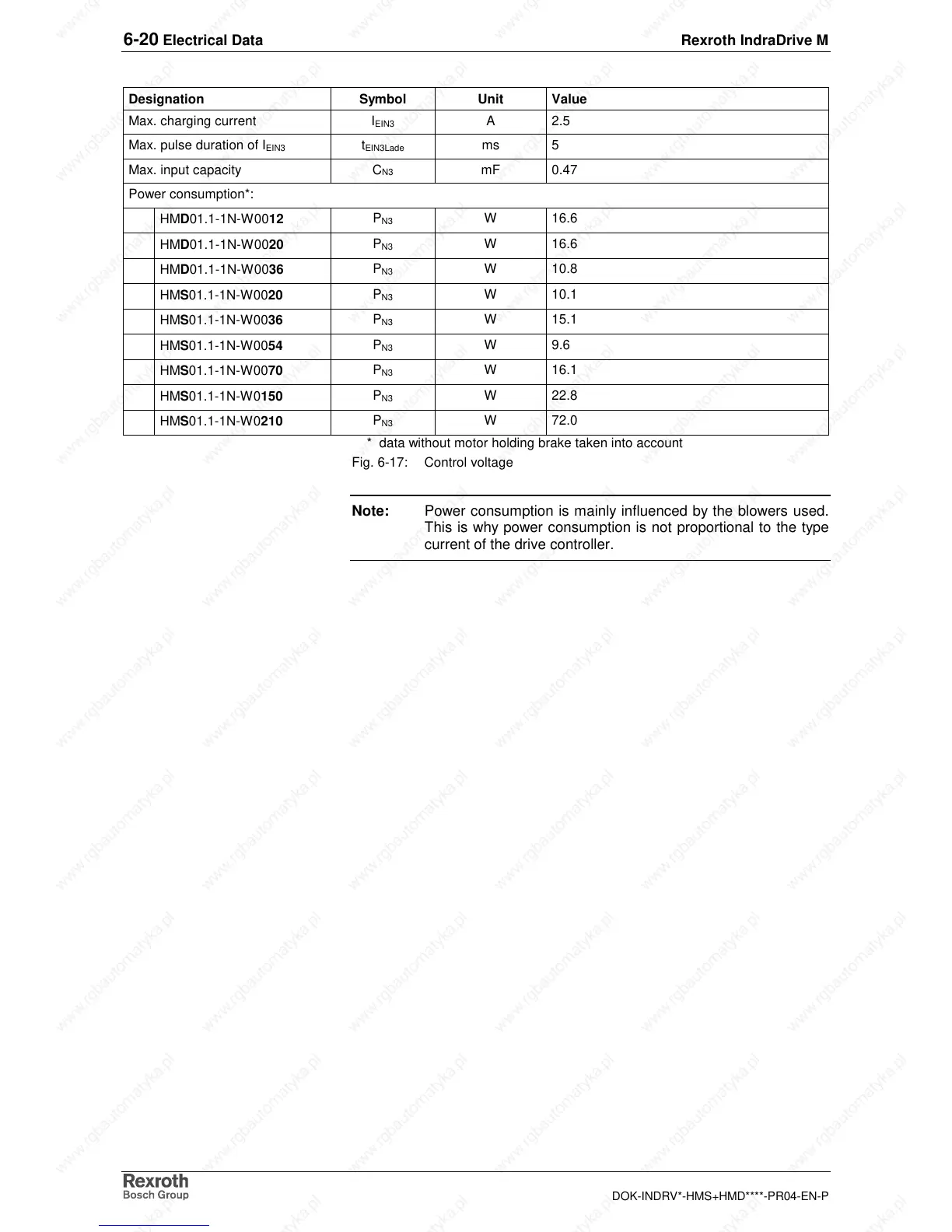

6-20 Electrical Data Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Designation Symbol Unit Value
Max. charging current I
EIN3
A2.5
Max. pulse duration of I
EIN3
t
EIN3Lade
ms 5
Max. input capacity C
N3
mF 0.47
Power consumption*:
HMD01.1-1N-W0012
P
N3
W 16.6
HMD01.1-1N-W0020
P
N3
W 16.6
HMD01.1-1N-W0036
P
N3
W 10.8
HMS01.1-1N-W0020
P
N3
W 10.1
HMS01.1-1N-W0036
P
N3
W 15.1
HMS01.1-1N-W0054
P
N3
W9.6
HMS01.1-1N-W0070
P
N3
W 16.1
HMS01.1-1N-W0150
P
N3
W 22.8
HMS01.1-1N-W0210
P
N3
W 72.0
* data without motor holding brake taken into account
Fig. 6-17: Control voltage
Note: Power consumption is mainly influenced by the blowers used.
This is why power consumption is not proportional to the type
current of the drive controller.
