Rexroth IndraDrive M Electrical Data 6-27
DOK-INDRV*-HMS+HMD****-PR04-EN-P
hms0140_x5_x6.fh7
X6
XS2

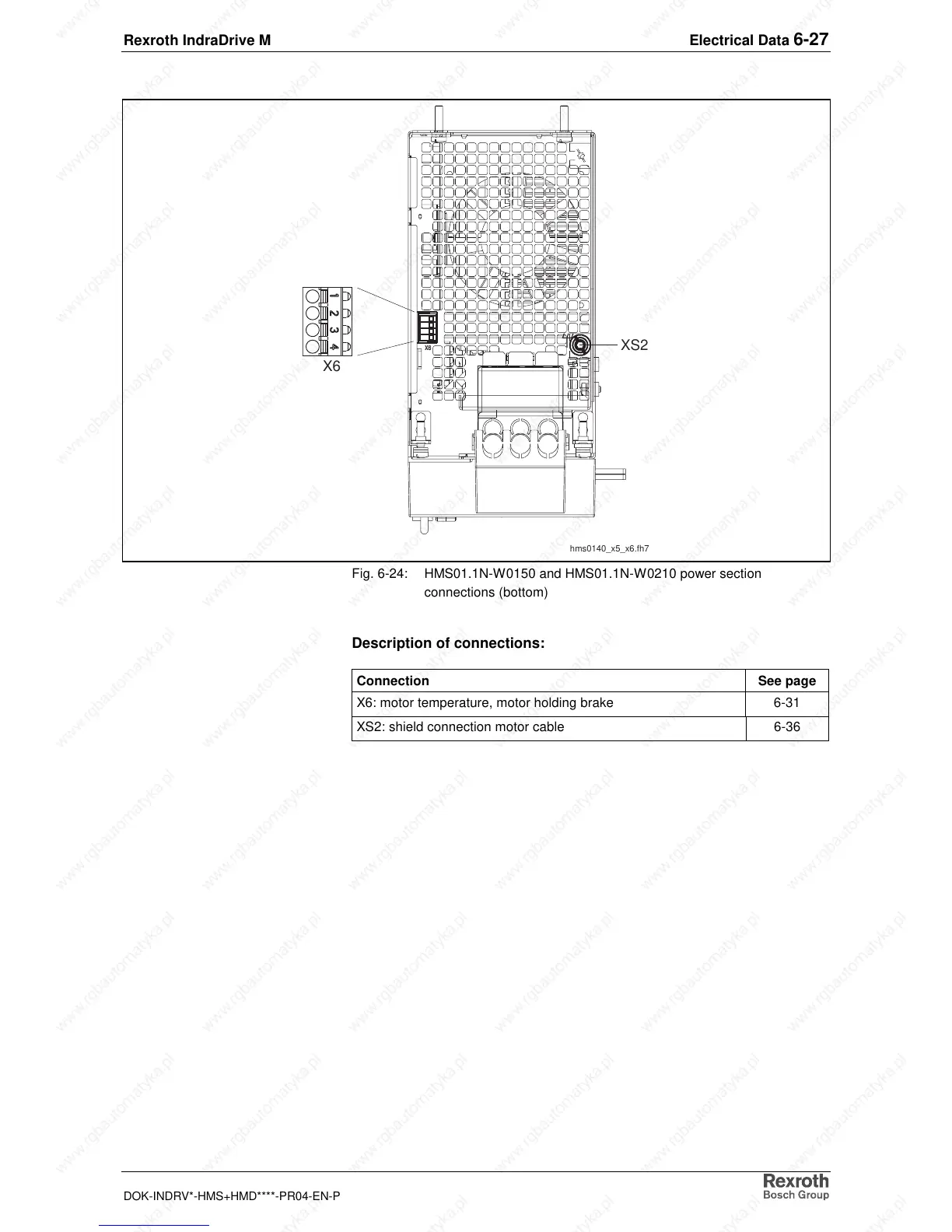

Fig. 6-24: HMS01.1N-W0150 and HMS01.1N-W0210 power section
connections (bottom)
Description of connections:
Connection See page
X6: motor temperature, motor holding brake 6-31
XS2: shield connection motor cable 6-36
