6-32 Electrical Data Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
HMS01.1N-W0020 to -W0070 and HMD01.1N-W0012 to -W0036:
Cross section
single-wire
[mm²]
Cross section
multiwire
[mm²]
Cross section
in AWG
0.14-1.5 0.14-1.5 28-16
Fig. 6-34: Connection cross section
HMS01.1N-W0150 to -W0210:
Cross section
single-wire
[mm²]
Cross section
multiwire
[mm²]
Cross section
in AWG
2.5 2.5 12
Fig. 6-35: Connection cross section
1MotTemp+
2MotTemp-
Motor temperature monitoring
3 +24 V
40 V
Motor holding brake
x6_kabel_anschluss.FH7
X6
holding
brake
PTC /
NTC /
KTY84
(depends on motor type)
shield for
motor cable
AC motor
M
3
A B C D
F G
U
E H
3
+24VBr
4
0VBr
1
MotTemp+
2
MotTemp-
A1 A2 A3
X5

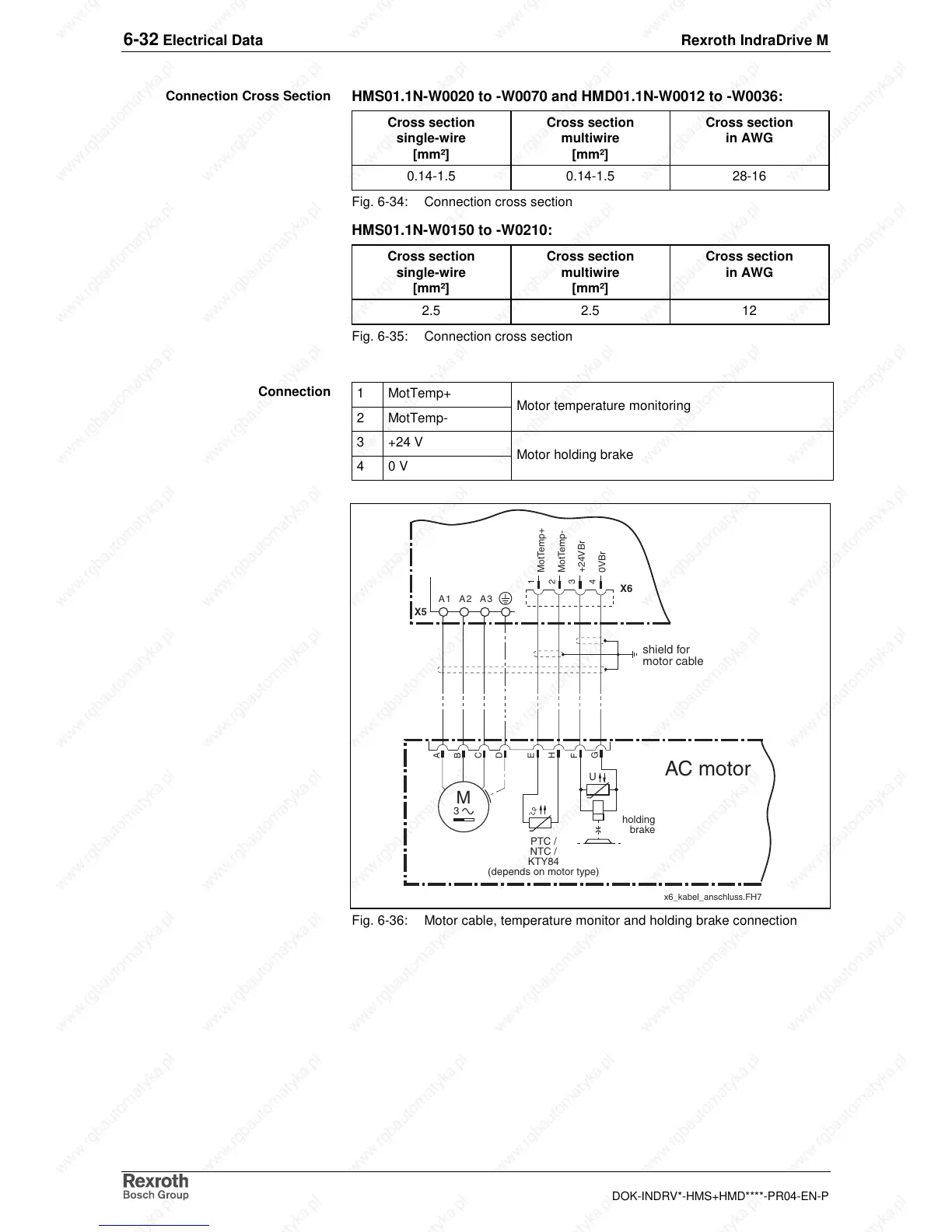

Fig. 6-36: Motor cable, temperature monitor and holding brake connection
Connection Cross Section
Connection
