ASMxxxx Series User’s Manual
Asia Pacific | EMEA | Americas 156
CAM/SAM Comms connectors (Sub D DB-15) pin-out:

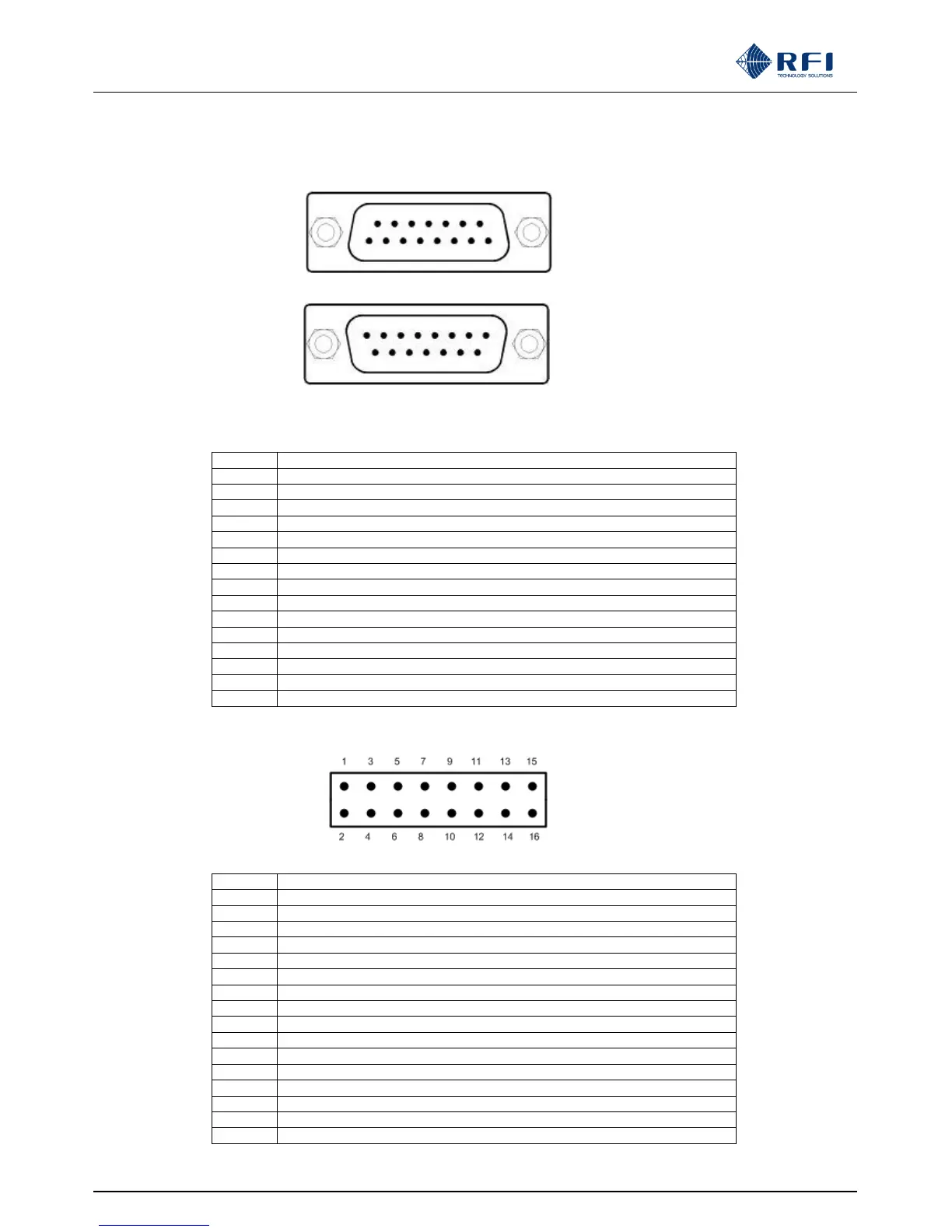

The pin numbers on the DB15 (M) connector at the rear of the (optional) CAM/SAM/RSM are illustrated below.
Pinout of DB15 Connectors
Pin Function Table:
Pin
Function
1
Communications Buss - GND
2
Communications Buss – Rx
3
Connected through to same pin number on other connector
4
Connected through to same pin number on other connector
5
Connected through to same pin number on other connector
6
Connected through to same pin number on other connector
7
Connected through to same pin number on other connector
8
Connected through to same pin number on other connector
9
Communications Buss – Tx
10
Connected through to same pin number on other connector
11
Connected through to same pin number on other connector
12
Connected through to same pin number on other connector
13
Connected through to same pin number on other connector
14
Connected through to same pin number on other connector
15
Connected through to same pin number on other connector
RSM Comms connector (IDC-16) pin-out:
Pin Function Table:
Pin
Function
1
Communications Buss - GND
2
Communications Buss – Rx
3
Connected through to same pin number on DB15
4
Connected through to same pin number on DB15
5
Connected through to same pin number on DB15
6
Connected through to same pin number on DB15
7
Connected through to same pin number on DB15
8
Connected through to same pin number on DB15
9
Communications Buss – Tx
10
Connected through to same pin number on DB15
11
Connected through to same pin number on DB15
12
Connected through to same pin number on DB15
13
Connected through to same pin number on DB15
14
Connected through to same pin number on DB15
15
Connected through to same pin number on DB15
16
Not connected
1
8
9
15
1
8
9
15
