1.Installation
13
[G]: Power Connector
[H]: Main Power Switch
[I]: Diagnostic LEDs (For service use only)
[J]: Service Switches (For service use only)
Connecting E-25C to the Copier
After you unpack the E-25C, connect the E-25C to the copier before you connect it to the network. This
is to confirm that there are no problems with the hardware and controller itself.
Preparing the Copier
Before doing the following steps, turn OFF the controller main power switch and copier main
power switch, and disconnect the power cords.

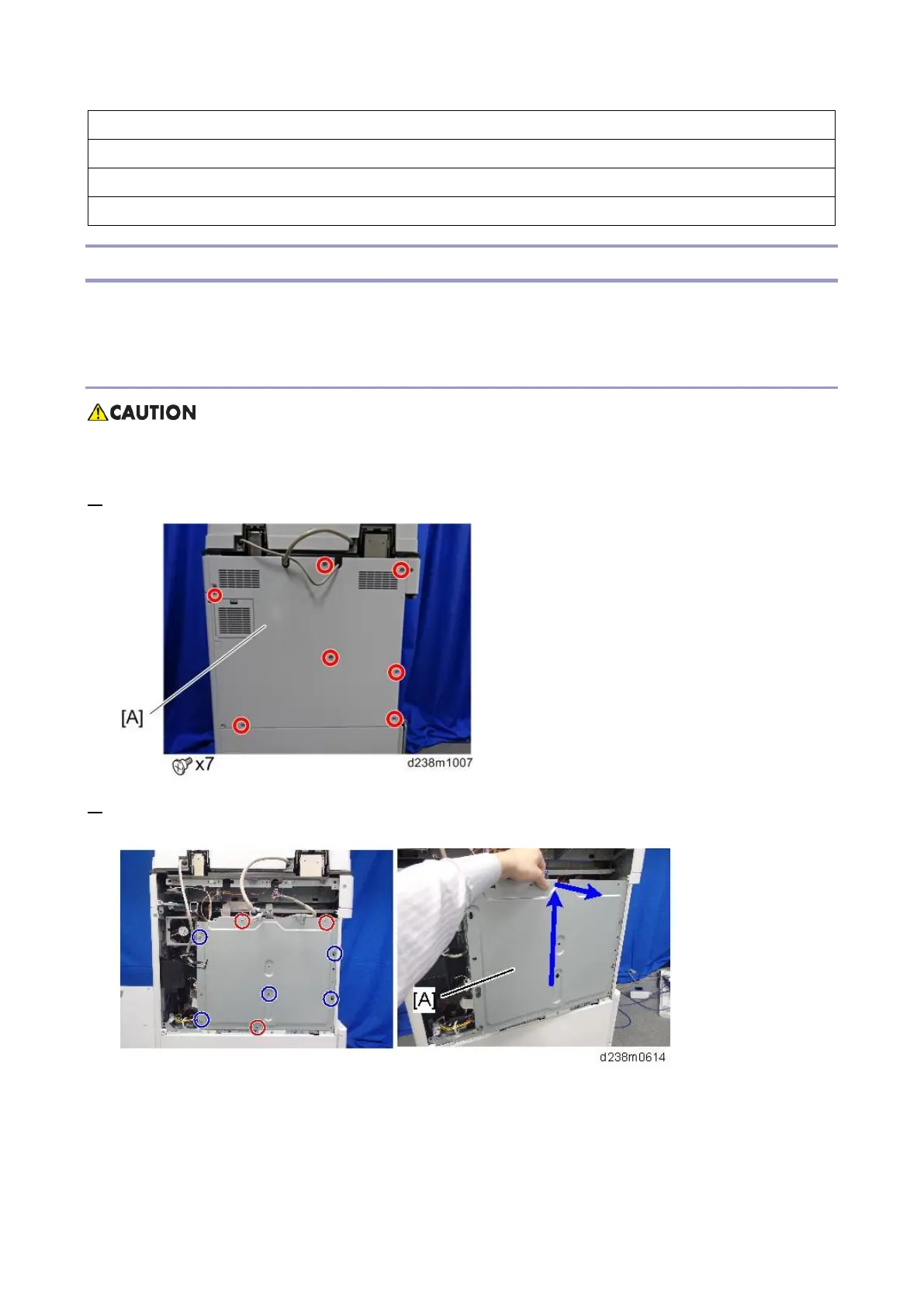

1. Remove the rear cover [A].
2. Remove the controller box cover [A].
Red Circle: Remove / Blue Circle: Loosen
