1.Detailed Descriptions
13
• If Corner Stapling on B5 SEF or Larger Paper
The movement is basically the same except that the front jogger fence, not the rear jogger fence,
moves for paper alignment when the paper is fed into the tray.

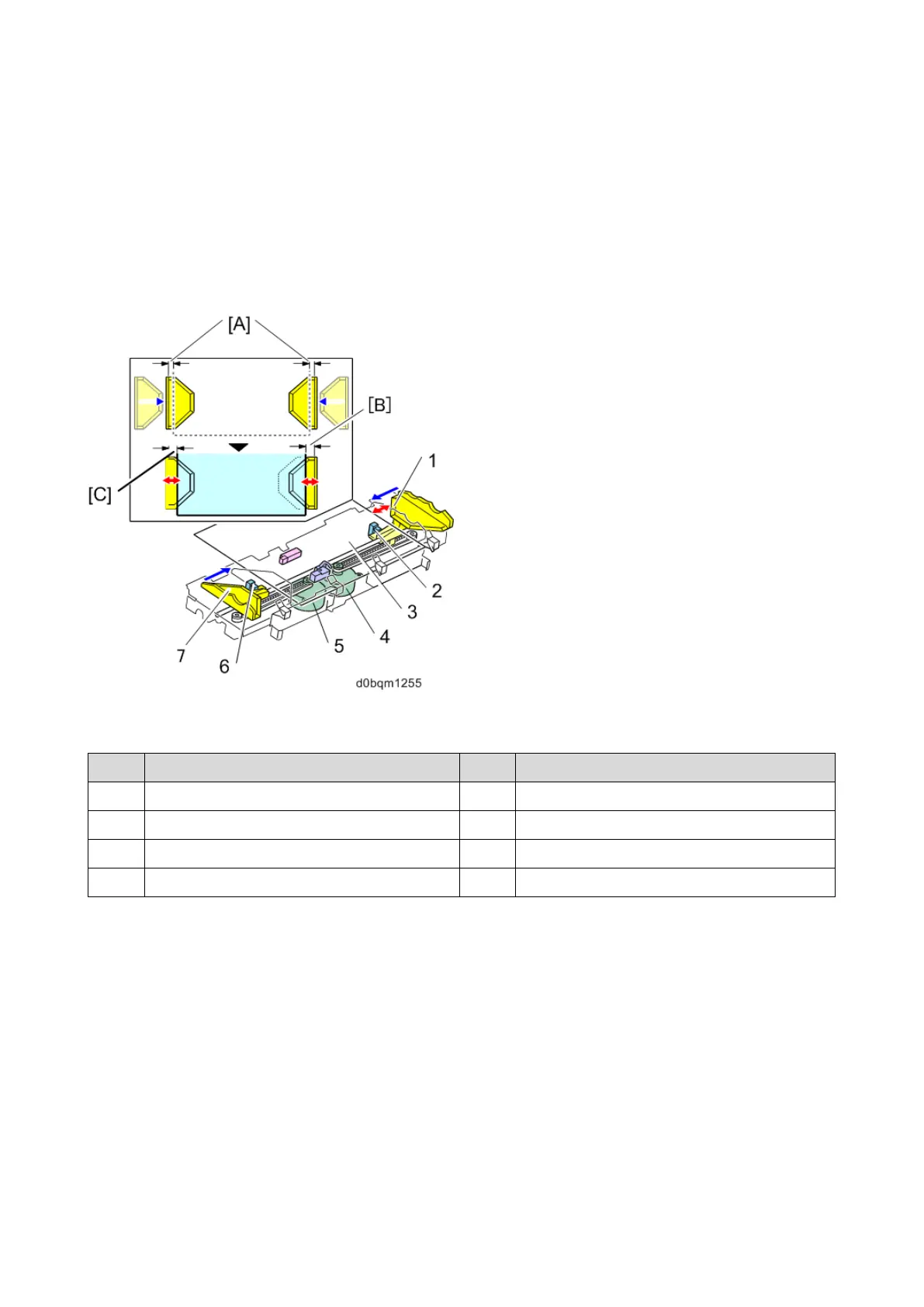

The jogger fences (rear and front) stand by 7 to 12 mm away from the paper, and again moves 7 mm
[A] towards the paper in order to perform paper alignment, so it moves a total of 14 to 19 mm [B].
During the paper alignment, the jogger fences (rear and front) repeat this movement.
[A]: 7mm
[B], [C] : 14 to 19 mm
No.
Description
No.
Description
1
Jogger fence (rear)
5
Jogger fence motor (front)
2
Jogger fence HP sensor (rear)
6
Jogger fence HP sensor (front)
3
Stapler tray
7
Jogger fence (front)
4
Jogger fence motor (rear)
-
-
Stapler movement mechanism
Stapler specification is as follows:
• There are three stapling positions, i.e., one front parallel, one back parallel and two parallel.
• 30 large sheets or 50 small sheets can be stapled.
To change the stapling position, a mechanism is provided which moves the stapler.
The stapler is moved by a stapler retreat motor, and the home position is detected by the stapler HP
sensor.
