Ricoh SR3300 - Page 12

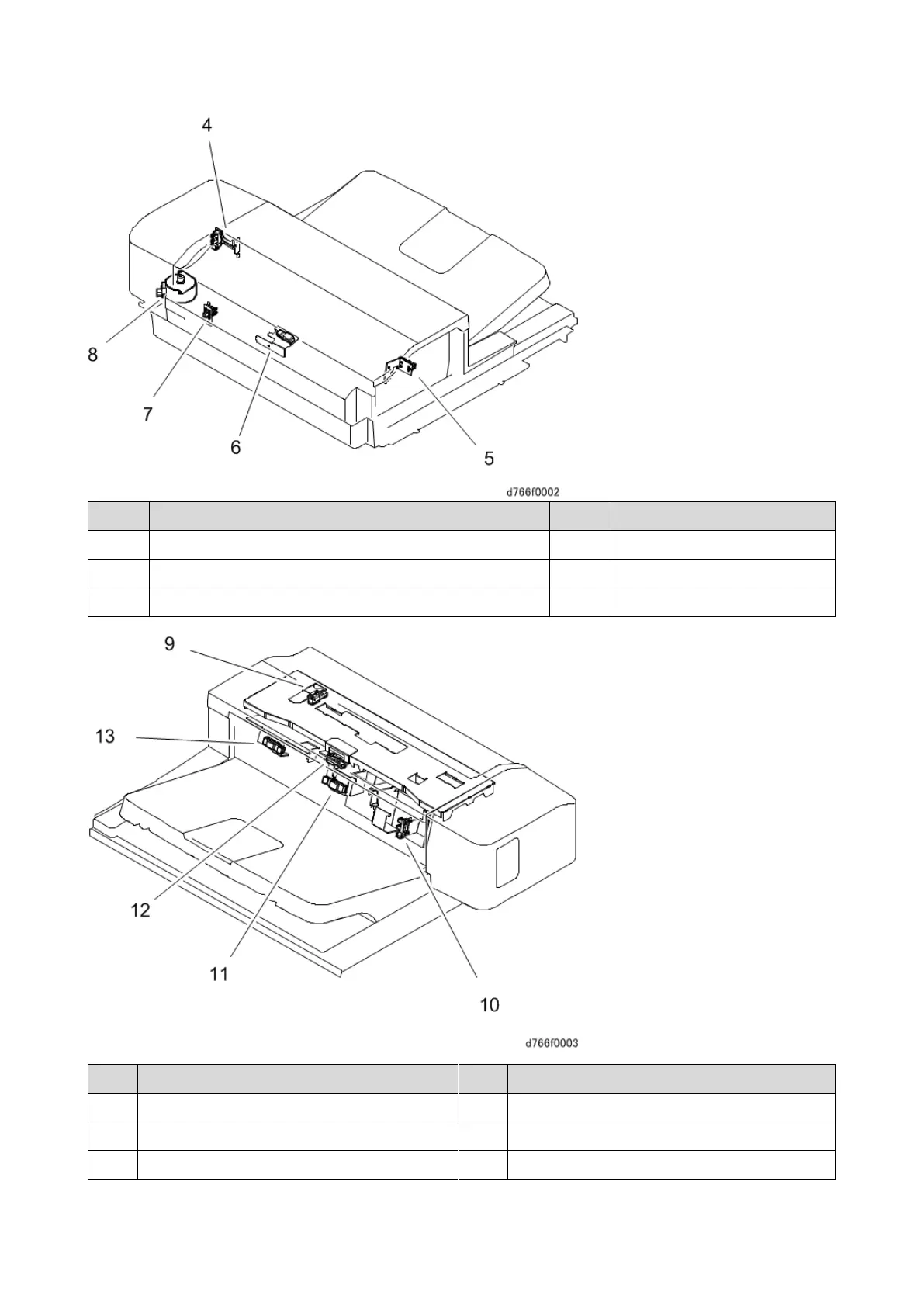

1.Detailed Descriptions
6
No.
Description
No.
Description
4
Shift HP sensor (S7)
7
Door switch (SW1)
5
Junction gate motor HP sensor (S1)
8
Shift motor (STM3)
6
Entrance sensor (S6)
-
-
No.
Description
No.
Description
9
Sub-scan registration sensor (S2)
12
Paper exit sensor (S3)
10
Paper exit pressure HP sensor (S8)
13
Paper exit full sensor 2 (Staple) (S5)
11
Paper exit full sensor 1 (S4)
-
-
