Ricoh SR3300 - Paper Exit Pressure Motor (STM4)

2.Replacement and Adjustment
36

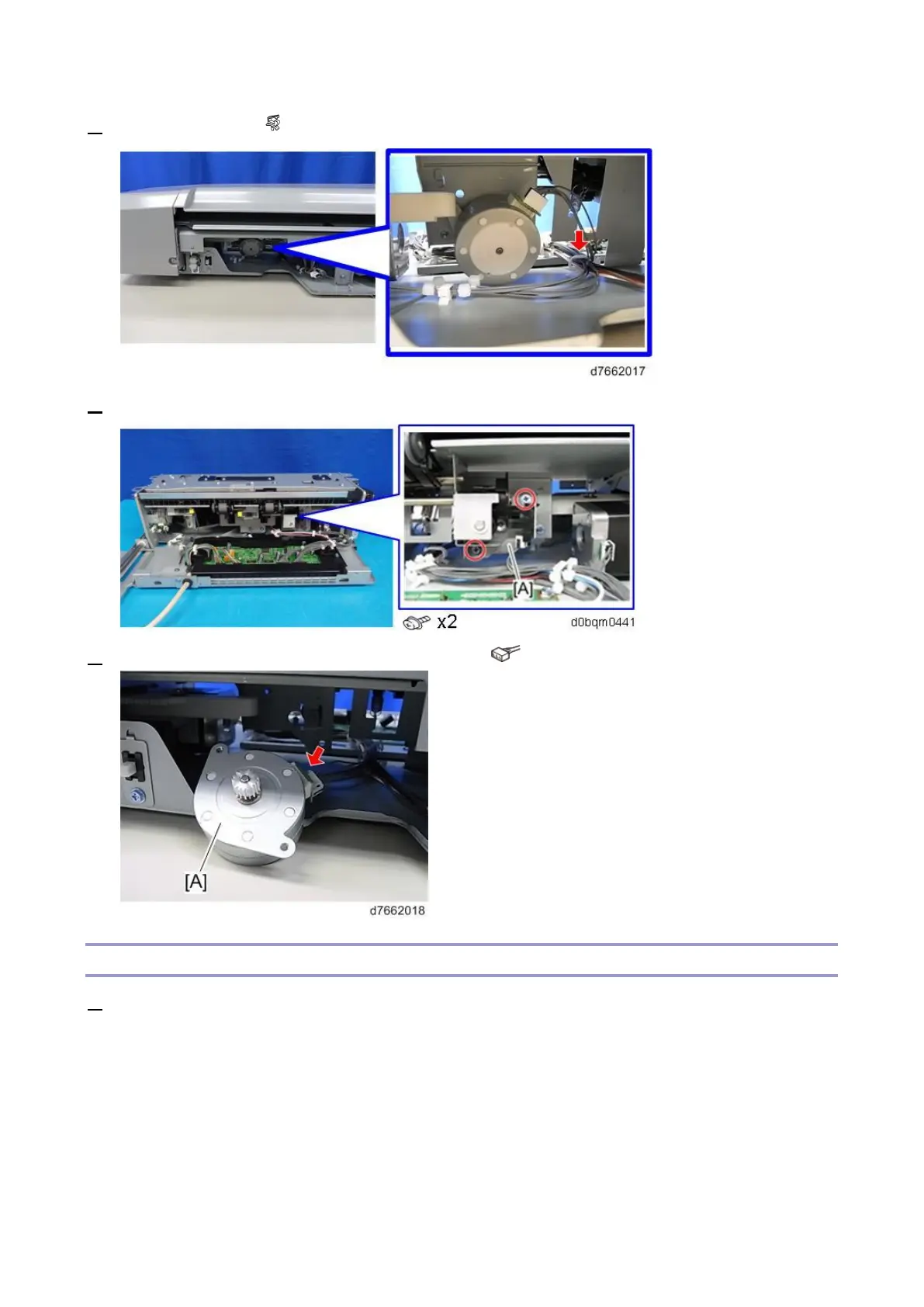

2. Release the clamp ( ×1).
3. Remove the screws on the bracket [A].
4. Remove the paper exit pressure motor (STM4) [A] ( ×1).
Stapler Drive Motor (DCM1)
1. Remove the following parts.
• Stapler Unit
• Stapler Drive HP Sensor (S9)
