1.Detailed Descriptions
9

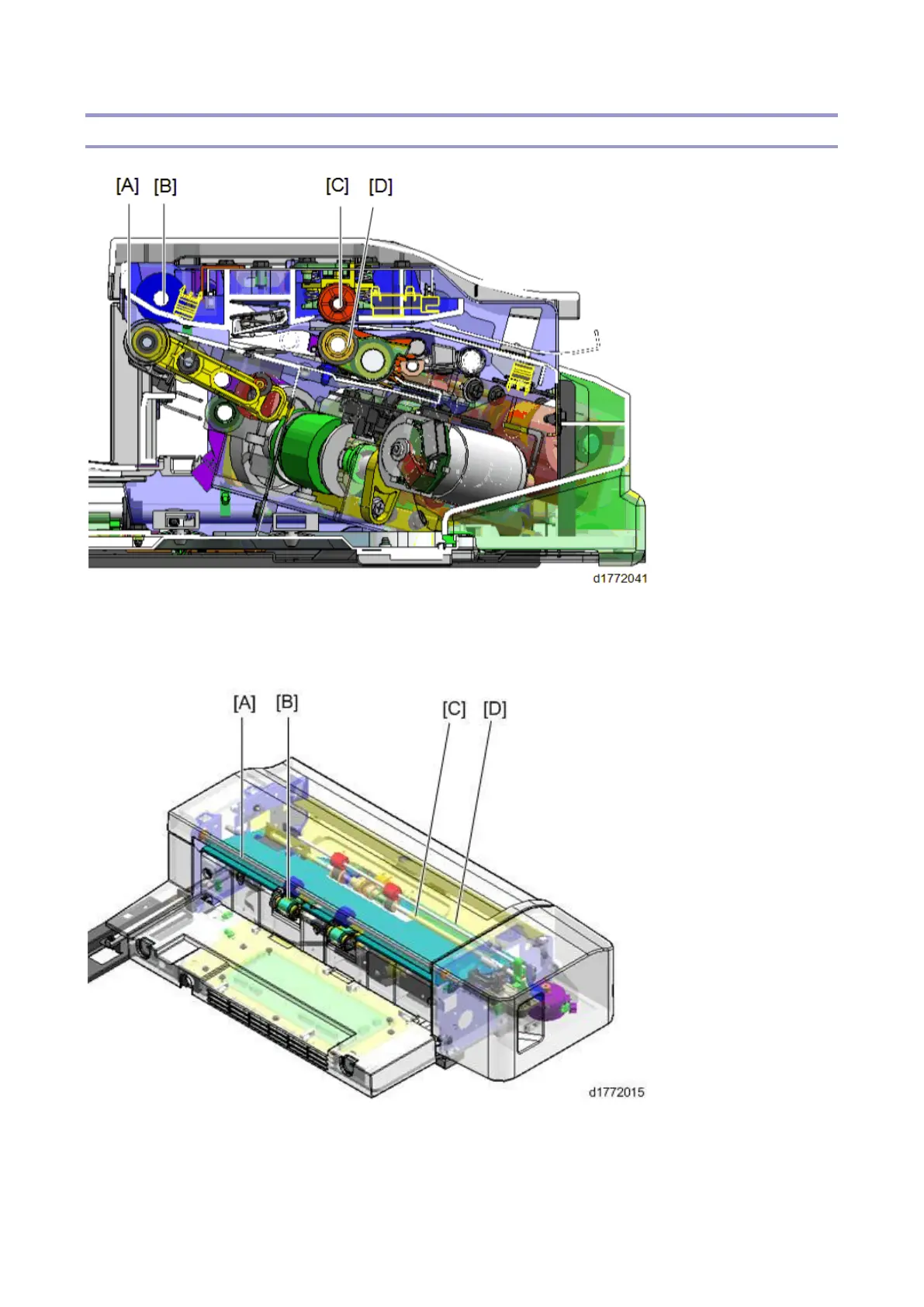

Straight paper exit/shift paper exit mechanism
Paper from the main machine is transported to the paper exit roller [B] and paper exit belt [A] via the
shift rollers ([C] and [D]). The transport motor drives the shift rollers, reverse rollers and paper exit
rollers.
After passing through the paper exit roller of the main machine, to shift the paper from side to side, the
shift rollers ([C] and [D]) nip the sheets and the shift motor moves the paper towards the front or rear of
the machine.
