Ricoh SR3300 - Sensors and Switch; Entrance Sensor (S6); Sub-scan Registration Sensor (S2)

2.Replacement and Adjustment
28
Sensors and Switch
Entrance Sensor (S6)
1. Remove the rear cover (Rear Cover).

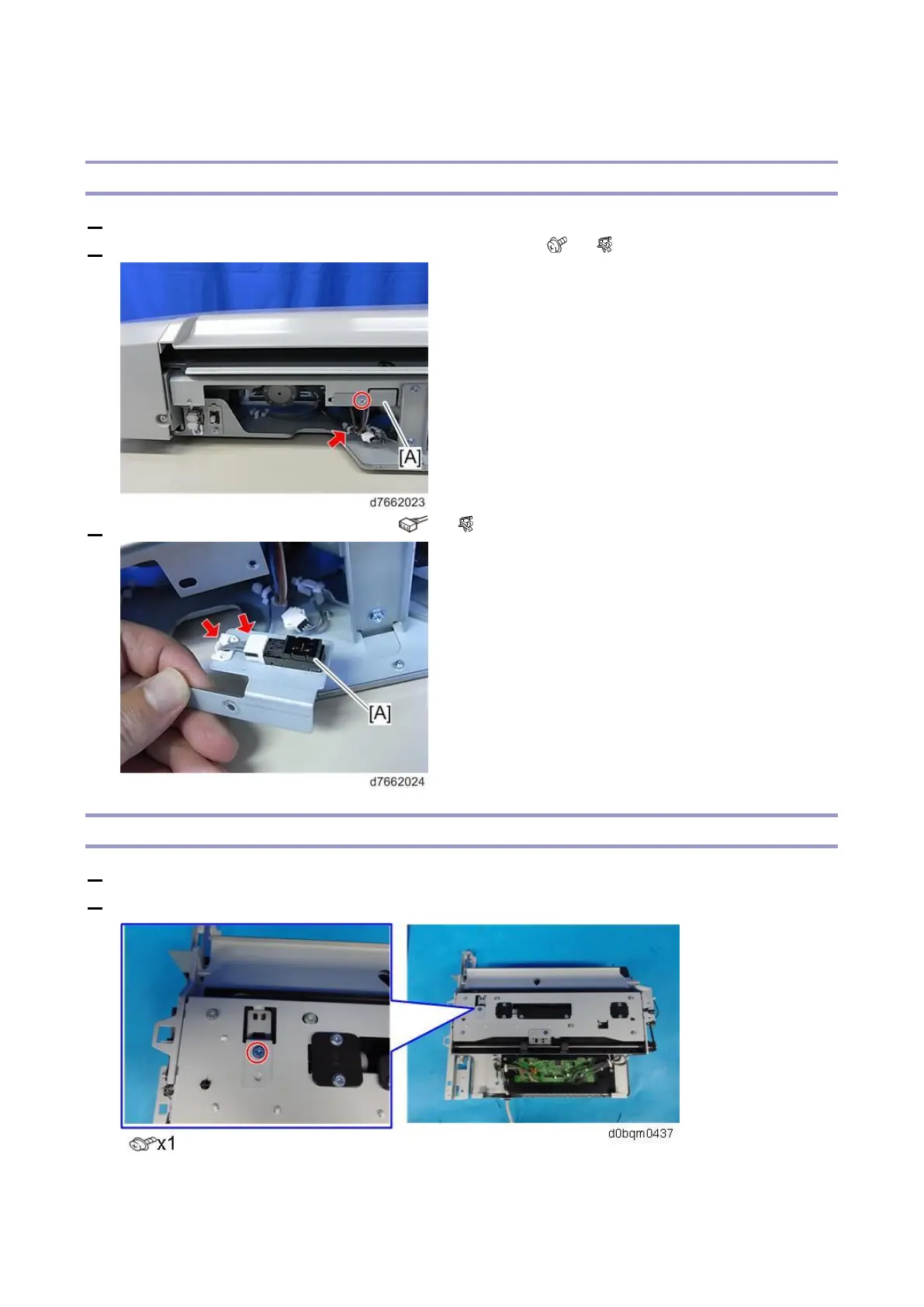

2. Remove the entrance sensor [A] together with the bracket ( ×1, ×1).
3. Remove the entrance sensor (S6) [A] ( ×1, ×1).
Sub-scan Registration Sensor (S2)
1. Remove the finisher upper cover (Finisher Upper Cover).
2. Remove the screw securing the bracket.
