Motors

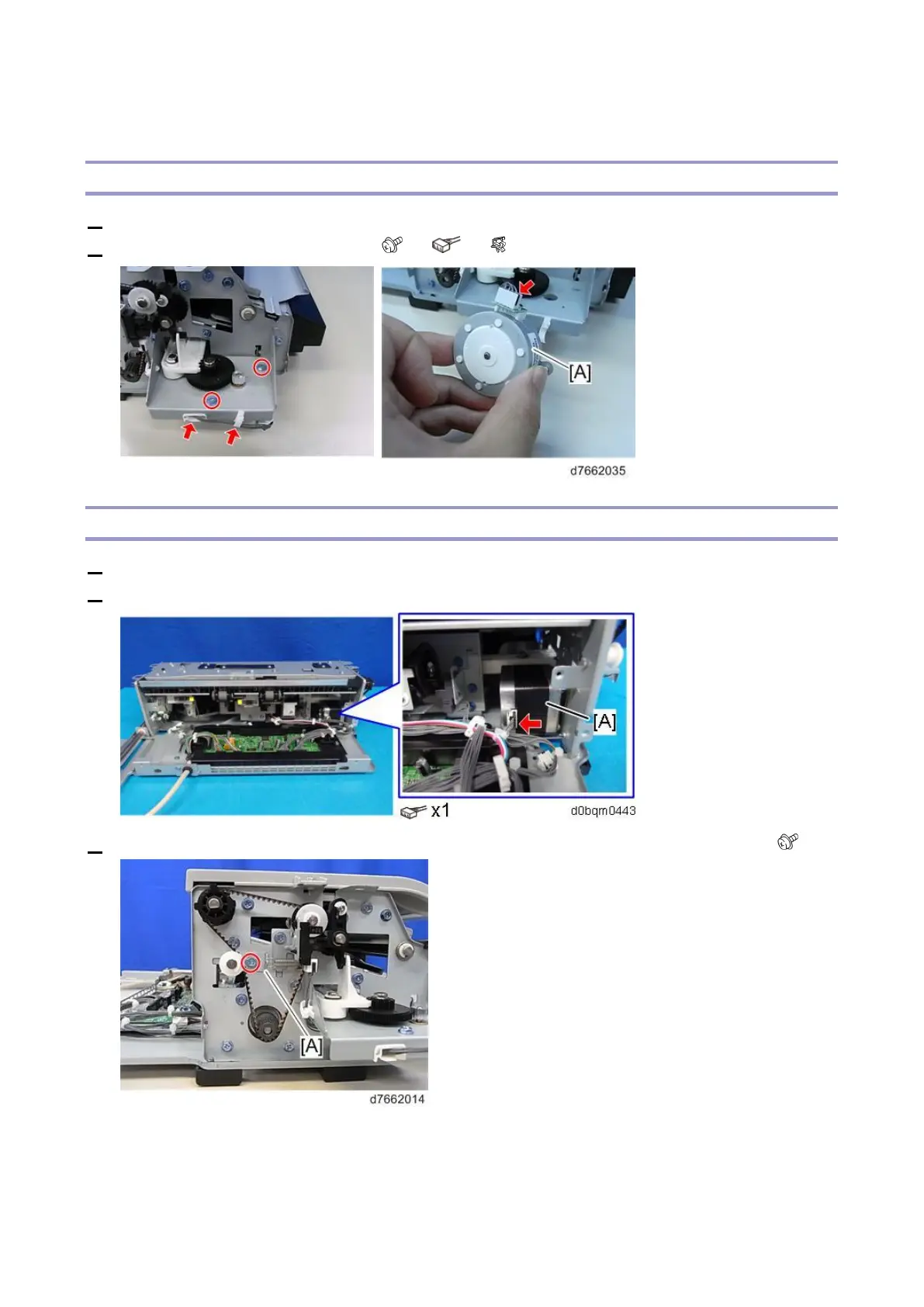

Shift Motor (STM3)
1. Remove the finisher front cover (Finisher Front Cover).
2. Remove the shift motor (STM3) [A] ( ×2, ×1, ×2)
Transport Motor (STM2)
1. Remove the finisher front cover (Finisher Front Cover).
2. Disconnect the connector attached to the transport motor [A].
3. Loosen the screw securing the spring bracket [A], and then release the tension on the belt ( ×1).
