Stapler Movement Mechanism
Because this stapler needs to staple twice for a single staple position, there is a mechanism to move
the stapler.

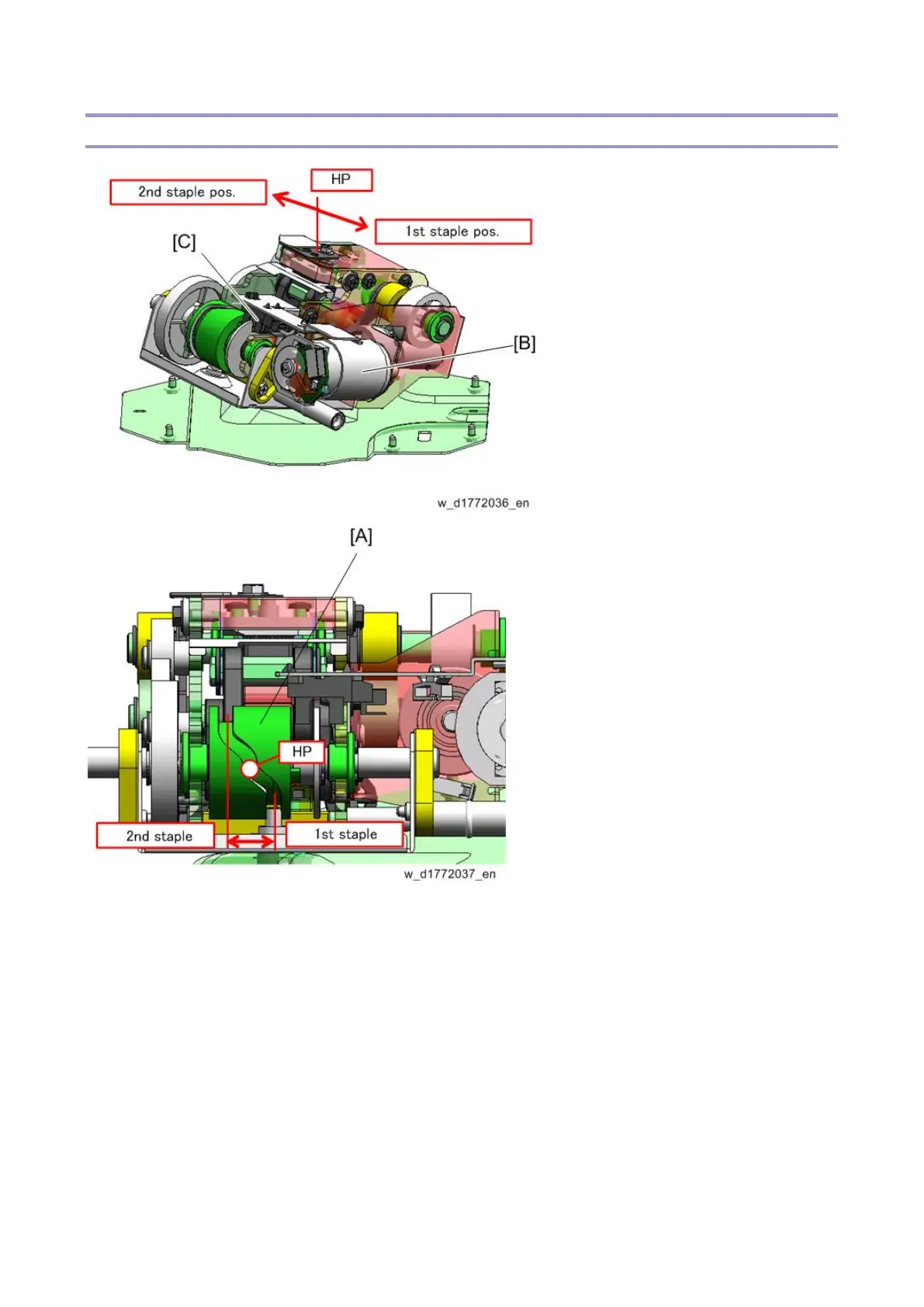

The grooved cam [A] inside the stapler unit rotates, and the securing pin passes over the grooves to
guide the cam.
Stapler movements and stapling operations are driven by the stapler drive motor [B]. The stapler drive
HP sensor [C] detects the home position.
