2.Replacement and Adjustment
38
Board
Controller Board (PCB1)

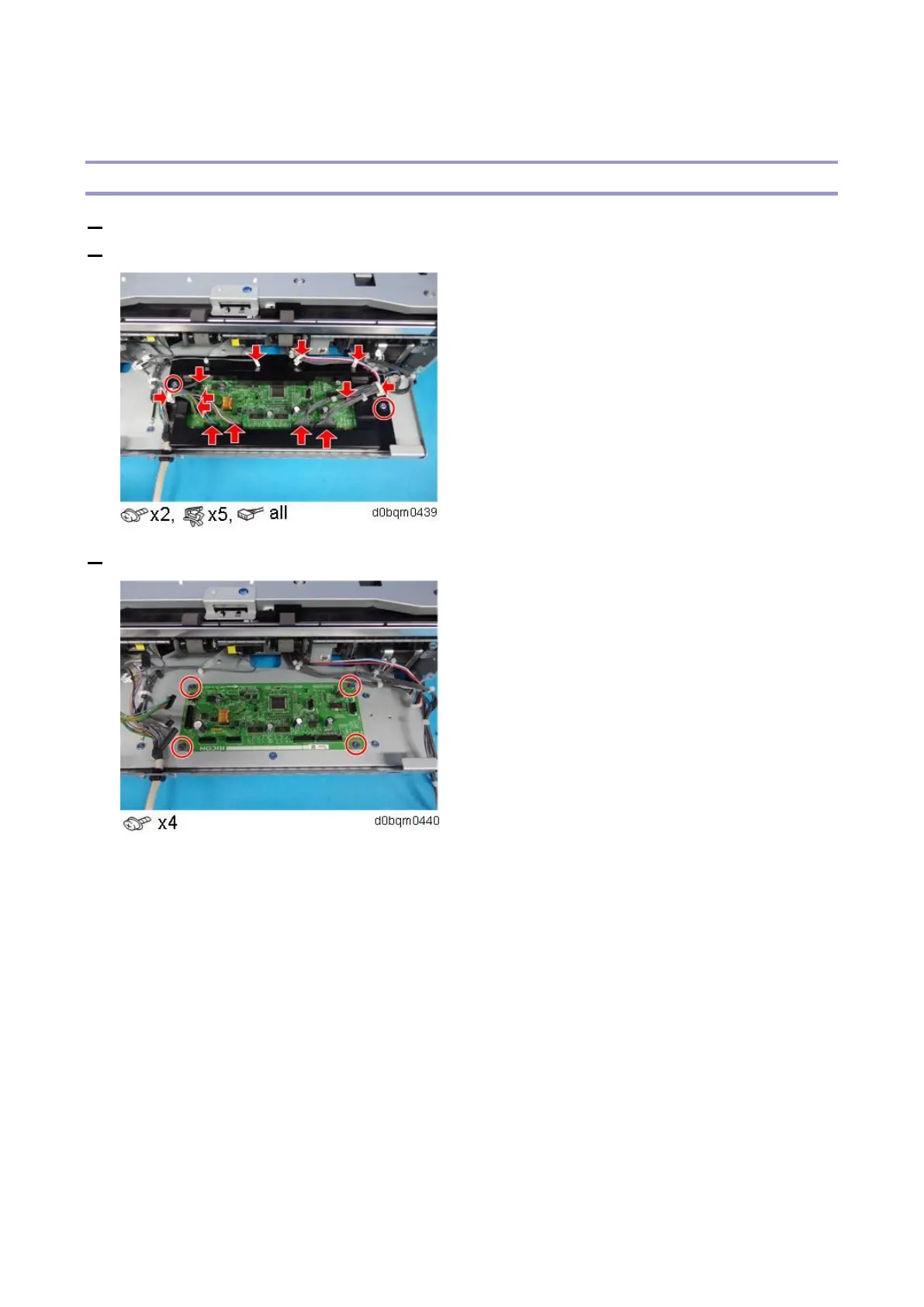

1. Remove the paper exit cover (Paper Exit Cover).
2. Remove the controller board cover.
3. Remove the controller board (PCB1).
