1.Detailed Descriptions
16

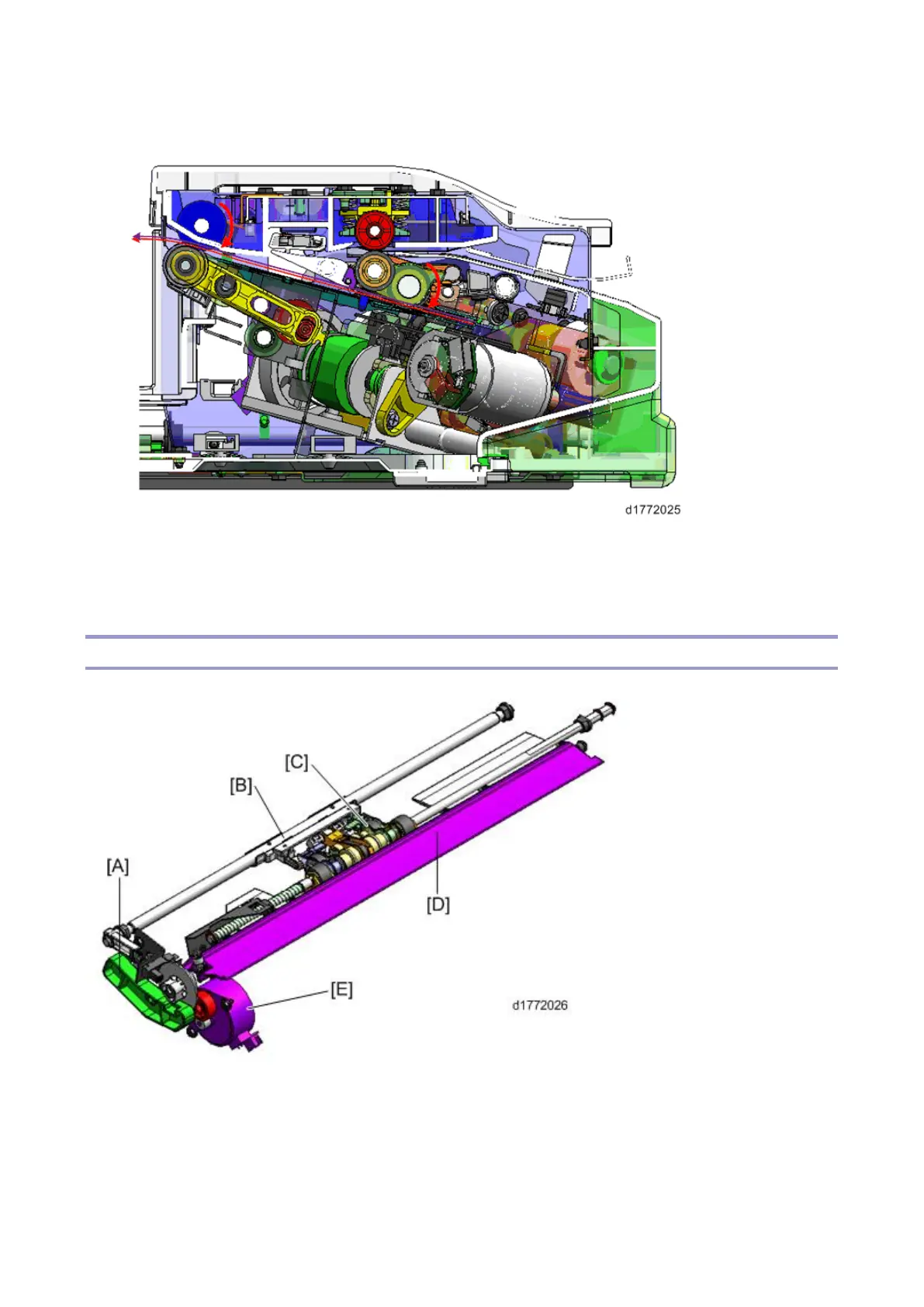

• Paper batch (Position C)
After the specified number of sheets are stacked, the batch of paper is stapled and transported
through the paper exit rollers and paper exit belt. If the stapling method is set to “Double” using the
user settings, the batch of paper is moved slightly and stapling is repeated.
Junction gate/trailing edge presser mechanism
The junction gate motor [E] drives the junction gate [D], trailing edge presser [B], and the reverse rollers
[C]. The junction gate motor HP sensor [A] detects the home position.
Timing of operation
• Junction gate
