Ricoh SR3300 - Junction Gate Motor (STM1)

2.Replacement and Adjustment
35

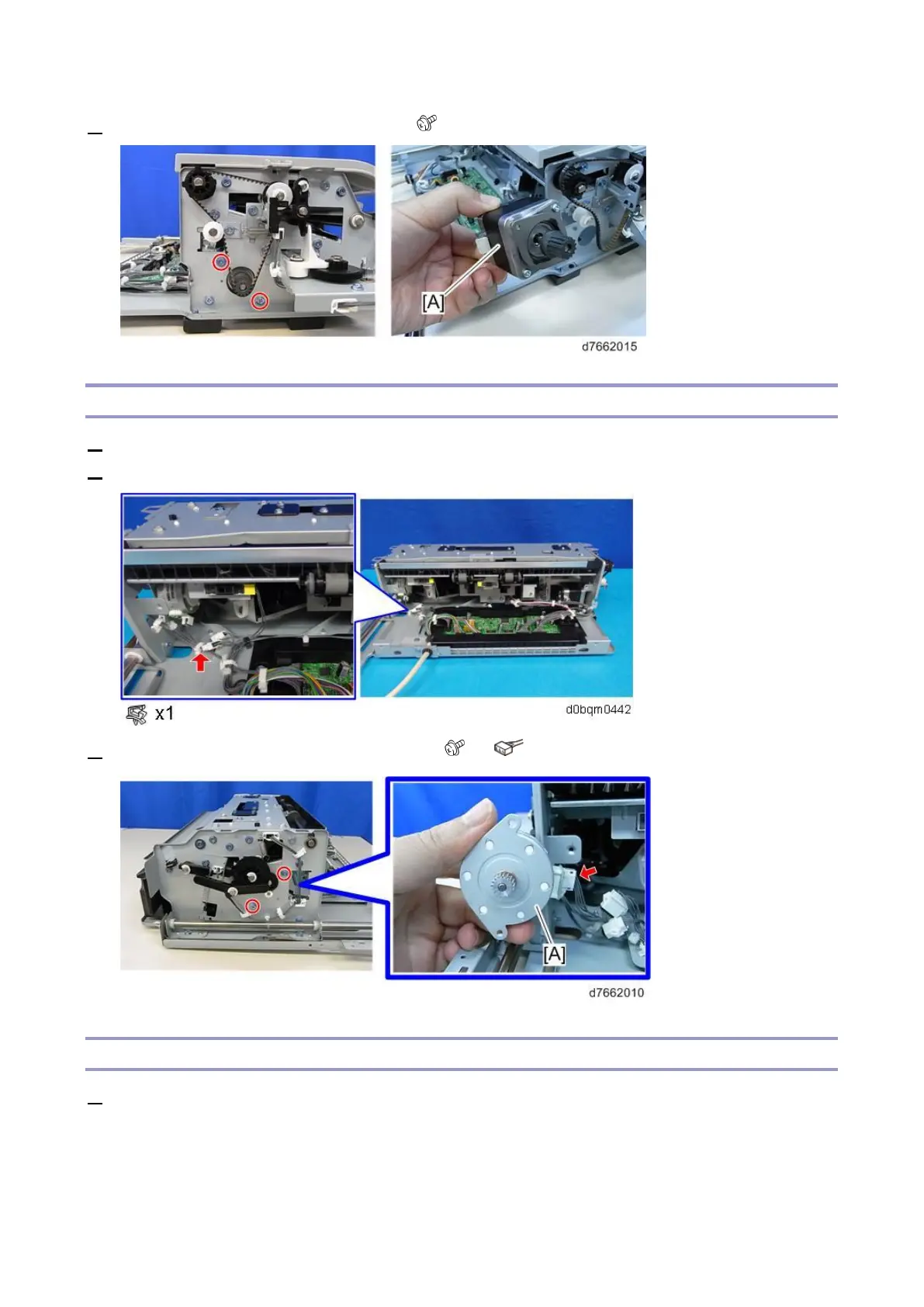

4. Remove the transport motor (STM2) [A] ( ×2).
Junction Gate Motor (STM1)
1. Remove the paper output cover (Paper Exit Cover).
2. Release the clamp.
3. Remove the junction gate motor (STM1) [A] ( ×2, ×1).
Paper Exit Pressure Motor (STM4)
1. Remove the following parts
• Paper Exit Cover
• Rear Cover
